Chromatography Data Acquisition Systems

Listing ID #4152172

Get Latest Price

Weight3.7 kg
DimensionsL=32cm, W=21.5cm, H=9cm
Power Input220Vac/50Hz (±1%)
Temperature50ºC (Max.)
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

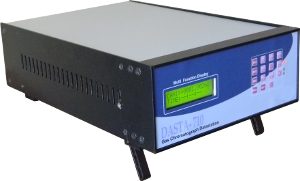

Chromatography Data Acquisition Systems or DAta STAtions series DASTA 710/720 is a stand-alone, high accuracy, micro-controller-based digital micro- voltmeter, which can be interfaced through the PC’s RS232 (serial) port.

It comes with its own chromatograph plotting and analysis software WinQCDS.

DASTA is a Chromatography Data Acquisition System, which can be coupled to any GC/HPLC a computer via a serial RS232 link.

Special features of DASTA Series :

Data Acquisition Parameters
Single and dual channel configurations.
Programmable sampling rate : 50Hz, 10Hz and 2Hz.
Programmable input voltage ranges : 10V, 5V, 2.5V & 1.5V.

Precision Performance Hardware

High precision 24-bit ADCs.
Configurable on-board digital filters for each channel.

Chromatography Data Analysis Software

Versatile peak-editing tools.
Precise measurement of areas.
Automatic detection of both positive & negative peaks.

Advanced Features

Auto-ranging facility available on each channel.
Relative reading facility for each channel with offset nulling.
“Save Configurations” & “Recall Configurations” options.

Hardware
No. of channels	Single & dual channel configurations
A/D Convertor	24-bit
Input ranges	1.25, 2.5, 5.0, 10.0V
Sampling frequency	2, 10, 50Hz
Typical System Noise	<5µV @ 2.5V FS / 10Hz

Software (WinQCDS 8.0)
Run Time	Limited only by HDD Capacity
Number of Peaks	Limited only by HDD Capacity
Number of Standards	Six
Baseline Correction	Interactive
Reference Peaks	Unlimited
Internal Standards	One

Standard Accessories
Serial Cable	One (2m)
Signal Cable	One (1m) standard
User Manual	One
Software	Provided in CD

Minimum Computer Requirement
Computer	Pentium IV® & above
Platform	MS WINDOWS XP®
Main Memory	128 MB
Hard Disk Drive	20 MB free space
Compact Disk Drive	Standard
Coloured Monitor	Min. 1024×768 resolution
Serial Port	Two/Three
Parrallel Port	One
Printer	Inkjet/Laserjet

Installation Requirements
Power Input	220Vac/50Hz (±1%)
Temperature	50ºC (Max.)
Dimensions	L=32cm, W=21.5cm, H=9cm
Weight	3.7 kg
