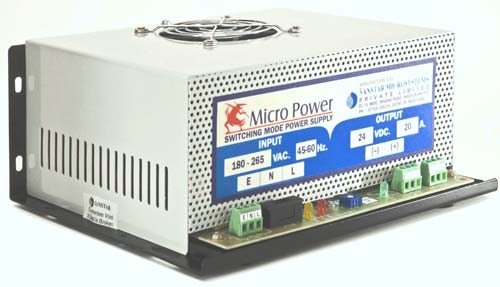

Contact SupplierWe bring forth efficient 24VDC SMPS. Our 24VDC SMPS is light weight and has a compact design which is based on current mode PWM Controller and MOSFET. Our 24VDC SMPS have earned clients’ appreciation due to its low noise and ripple features. The 24VDC SMPS that we provide has in-built EMI filter. Our 24VDC SMPS is economically priced and needs no maintenance. Also, the light weight and compact design of this 24VDC SMPS makes it easy to install it.
Features
Maximum output power of 500WHigh efficiency, High reliability, Low costAC input voltage range 180V ~ 265VAC.Built-in EMI filterLow Ripple and NoiseSoft start circuit to limit the AC inrush currentScrew type input and output connectorsCompact, light weightMomentary output short circuit protection, over voltage protection100% Full load burn-in test
Specifications
Input CharacteristicsInput Voltage180V – 265V AC.Input Frequency45 – 60 Hz.Input Connector3-pin screw type connector.IndicationInput Ok – Yellow colour LED.Input Protections5 Amp, 20mm fast blow, Glass fuseMOV, for input over voltage protection.FiltersEMIRFI.Output CharacteristicsOutput Voltage24 VDC..Output Current20 A.Max. Output Power500 W.Output ConnectorTwo 3-pin screw type connectors.Output IndicationOutput Ok – Green colour LED.OVP – Red colour LED.Output ProtectionsOver Voltage Protection.Line Regulation< +- 0.5%.Load Regulation< +- 0.5%.Ripple and Noise< +- 1% P-P.Environmental CharacteristicsOperating Temperature55oC at Full Load and 70oC at 60% load.Maximum Temperature Rise50oCCoolingForced coolingRelative Humidity95% NC.General CharacteristicsEfficiency70%.Hold Time> 20mSec on full load.Dimension (L X W X H) mm235 X 195 X 100MountingPanel Mounting
Note
All these parameters are specified at 230V AC inputFor continuous improvement, specifications are subject to change without prior intimation
