Contact SupplierApplication

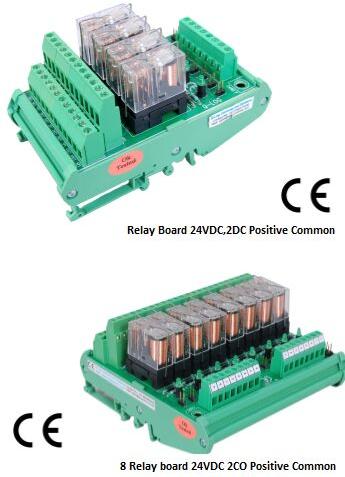

Relay Interface Module 2 changeover DC used to interface 24DC digital outputs to contactorssolenoid valvesindications etc. Load and PLC ops are galvanically isolated
COMPONENT SPECIFICATIONS
Relay: 24VDC coil,1 changeover Omron
Relay socket: 1 changeover PCB soldering type
Terminals: Screw type suitable for 2.5 sq. mm wires
Profile and end plates: Phoenix make
TECHNICAL SPECIFICATIONS
Input data:
Operating voltage: 24 VDC +- 10%
Input current: Max 20mA@24 VDCAC
Protection across relay coil: Free wheeling diode
Indication: 3mm LED
No of relays: 2 or 4 or 8
Terminals: Screw type suitable for 2.5 sq. mm wires
Conductor size: 025-2.5 sq. mm
Insulation stripping length: 7 mm
Output Data:
Contact type: DPDT (2 changeover contacts NO-Pole-NC)
Max. current: 5Amps@250 VAC or 30 VDC
Output wiring: Potential free
Terminals: Double decker Screw type suitable for 2.5 sq. mm wires
Conductor size: 025-2.5 sq. mm
Insulation stripping length: 7 mm
Module dimensions (HXLXD):
125x36x70 (2 Relay board)
125x70x70 (4 Relay board)
125x130x70 (8 Relay board)
