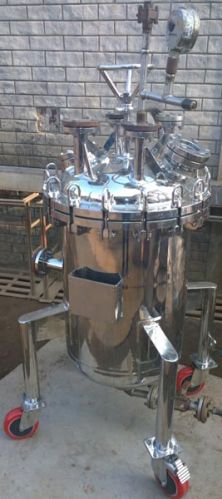

Automatic Pressure Nutsche Filters, for Industrial, Certification : CE Certified

Listing ID #1739530

We hold specialization in manufacturing and supplying high quality Pressure Nutsche Filters that are widely used to separate solid and liquid by filtration under pressure or vacuum or in combination of both. It is a closed vessel designed that can be re-slurried and washed thoroughly with water or solvent. The discharge of wet cake is automatic. Drying of wet cake is also possible when drying features are incorporated.
Pressure Nutsche Filters are constructed to perform a multitude of tasks including reaction, filtration, cake washing and thermal drying on a single unit. As such these are very sophisticated machines with tight process control on parameters such as pressure, temperature and PH.
Components
The Nutsche in its full configuration consists of four major components :

• The vessel
• The filter Plate and cloth, woven mesh screen or sintered metal plate medium
• The re-slurry arms for cake washing and smoothing
• The cake discharge mechanism

Nutsche Filters are operating as part of a batch system hence the vessel's volume is designed to accept an entire charge of slurry from the upstream equipment. Therefore, so that the idle time of the filter is kept to a minimum, sufficient holding volume is required for fast charging and emptying of the vessel. The vessels are generally designed for an operating pressure of 2-3 bars but higher pressures may be specified if required. The vessel's cover supports the hydraulic system that controls the independent raising and lowering of the rotating auger and reslurry paddle arms as well as the various flanged connections and maintenance manhole.

Applications

•     Chemical Industry
•     Food & Beverage Industry
•     Bulk Drugs
•     Fertilizers
•     Pesticides
•     Dyes
•     Cosmetics Industry
•     Petroleum
•     Refineries
•     Petrochemical Plants
•     Natural Gas Processing
•     Refrigeration
•     Power Plants
•     Space Heating
•     Allied Industries

Use : To separate solid and liquid by filtration under pressure or vacuum or in combination of both.
Sizes Available : As per the Customer Requirement
Raw Material Used : Stainless Steel (SS-316, SS-304, Alloy-2205).
Price : Rs. 2 Lacs to 20 Lacs
