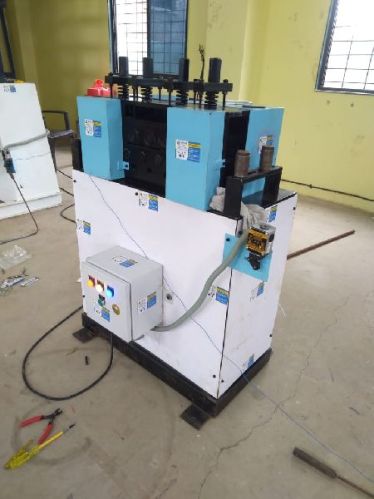

Polished Electric coil Straightener, Width : 10mm to 1600mm

Polished Electric coil Straightener, Width : 10mm to 1600mm

Listing ID #6098622

88,500 - 1.20 Lakh / Units

Get Latest Price

MOQ 1 Piece
Size (mm)100mm, 200mm, 300mm, 400mm, as per customer requirement
Brand Namesarthak enteerprises
Materialall type
CertificationCE Certified
Supply Type Exporter
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Size (mm) 100mm, 200mm, 300mm, 400mm, as per customer requirement
Brand Name sarthak enteerprises
Material all type
Certification CE Certified
Color White
Voltage 220V
Condition New
Rated Power 2 HP TO 1O HP
Driven Type Electric
Warranty 1 Year
Country of Origin India
Operating Type Automatic
Reverse Rotation Yes
Is It Variable Speed Yes
Diameter as per customer requirement
Thickness as per customer requirement
Composition as per customer requirement
After-Sales Service Provided yes
Straightening Speed as per customer requirement
Roll Centre 1100MM
Rotating Speed as per customer requirement
No Of Roll 9 , 11, 13 , 18 ,
Weight 100-1000kg, AS per customer requirement
Finishing Polished, Unpolished, Chrome Finish, Powder Coated
Width 10mm to 1600mm
Packaging Type Wooden Box
Pressure Low Pressure, Medium Pressure, High Pressure
Phase Three Phase
Overall Length 10 mm to 1200mm
Working Capacity as per customer requirement
Usage Pipe Straightening, Coil And Sheet Straightening
Specialities Rust Proof, Long Life, High Performance, Easy To Operate
No roller 9 , 11, 13, 18 no's .
roller material EN 31 grinding chrome & hard chrome
COIL THICKNESS 0.2MM TO 14 MM
COIL WIDTH 100MM TO 1600MM

Coil straightening machines Total roller : 11 , 9 , 13, 18 nos all roller dia : 42mm , 52 mm, 68mm, 88mm, 90mm , 120mm, roller material : EN31 with hard crome , grinding . upper roller : 4 roller , 5 roller , 2 pinch roller Front , 2 roller back side . Motor : 2 Hp to 10 HP . With gear Box . Colour : white, blue , as per customer requirement . warrenty : 1 year .

Additional Information

Payment Terms L/C, D/A, D/P, T/T, Western Union
Port of Dispatch AS per customer requirement
Packaging Details WOODEN BOX
Delivery Time 10 DAYS
