Contact SupplierWith the development of mining industry, investors present various requirements of the features of flotation machine. Now there are many kinds of flotation machines, such as agitator flotation machine, pneumatic flotation machine and pneumatic- agitator flotation machine. And different mineral ores have different hydrophilicity, so the final configurations greatly depend on the professional designs.
FEATURES
APPLICATION

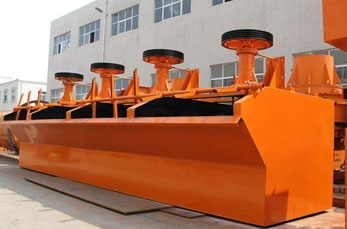

Flotation machine are mainly used in mineral ore dressing plants, selecting the valuable mine from gangue. It is applicable for the separation of numerous of mineral ores, such as fluorite and talc, gold ore, copper ore, iron ore and zinc ore and so on.
TECHNICAL DATA
Specifications of XJ mechanical agitating floation cell with auto air suction:
odel | Effective capacity(m³) | capacity | Diameter of impeller | Revolution of impeller | Motor power KW | Weight of 4 cell cell | |
for agitating | for scraper | ||||||
XJ1 | 0.13 | 0.05~0.6 | 200 | 600 | Y90L-4 | 1.5 | 0.55 |
XJ2 | 0.23 | 0.12~0.28 | 250 | 504 | Y100L2-4 | 1.5 | 0.55 |
XJ3 | 0.35 | 0.18~0.4 | 300 | 483 | Y112L-4 | 1.5 | 0.6 |
XJ6 | 0.62 | 0.3~0.9 | 350 | 400 | Y132S-6 | 3 | 1.1 |
XJ11 | 1.1 | 0.6~1.6 | 500 | 330 | Y132M2-6 | 5.5 | 1.1 |
XJ28 | 2.8 | 1.5~3.5 | 600 | 280 | Y160L-6 | 11 | 1.1 |
XJ58 | 5.8 | 5~7 | 750 | 240 | Y200L2-6 | 22 | 2.2 |
