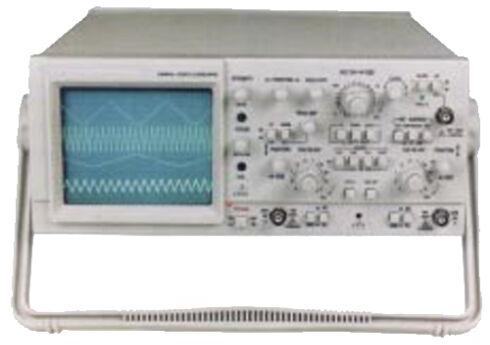

20 MHz Dual Channel Two Trace Oscilloscope (VPL-CA-8124)

Listing ID #4296964

Get Latest Price

Size(W x L x H): 320 x 418 x 130mm
Hold-off performanceconvenient for observe complicated signals
Weight6.5 kg
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

specification
CRT:	Effective acting surface	8 x 10DIV 1 DIV = 10mm
	Accelerating voltage	+2kV
	Lightering color	Green
Z-Shaft input:	Sensitivity	5V
	Polarity of input	Low electrical level intensification
	Range of frequency	DC:0-1MHz
	Input resistance	10K W
	Max. input voltage	50V (DC + AC peak)
Vertical amplifier:	Width of band	DC: 0-20MHz AC: 10Hz – 20MHz
	Input impedance	1MW ±3% 25pF ±5pF
	Input coupling	DC – GND – AC
	Polarity inversion	Only CH2
	Max. input voltage	400V (DC + AC peak
	Defection factor	5mV/DIV -5V/DIV ±3% expanding to 1mV/DIV
	Trimming ratio	2.5 : 1
	Mode	CH1, CH2, ALT, CHOP, ADD
Horizontal:	Time factor	0.5S/DIV-0.2μS/DIV ±3%
Horizontal:	Trimming ratio	2.5 : 1
Trigger system:	Mode	AUTO, NORM, TV, P-PAUTO
	Trigger source	INT (CH1, CH2, VERT MODE), LINE, EXT
	Slope	Positive or negative
	Trigger sensitivity	INT: 1DIV, EXT:0.3V, VERT MODE: 2DIV, P-PAUTO: 2DIV
	TV	2DIV
	Max. input voltage	160V (DC + AC peak) exterior trigger input
	Input impedance	1mW ±3% 25pF ±5pF
X-Y acting:	Defection factor	Same as vertical system
	Width of band	DC:0-1MHz AC:10Hz-1MHz
	Phase difference	< 3°(DC: 0-50KHz)
Calibration source:	Pole detecting standard	1KHz ±2% 0.5VP-P ±2% Symmetrical square wave
Power:	Voltage range	220V ±10%
	Frequency	50Hz ±2Hz
	Max. power consumption	40W
Form size:	Weight	6.5kg
Form size:	W x L x H	320 x 418 x 130mm
Other:	456464	One operation manual, one standby fuse, one power wire, two detectors
