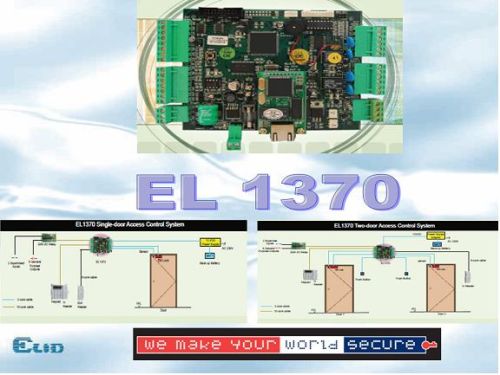

EL1370 is a 2-door 2-reader controller. It has the same footprint as EL1330 and provides enhanced features as follows:-
1-door controller with entry and exit reader, or 2-door controller with entry readers and push-button exit
Features a 16-bit dual core MCU whose reliability is such that it is widely used in the automotive industry
Features a 512KB SRAM memory to offer larger card user database and larger transaction log storage
Provides advanced features such as dual card entry, and programmable event-triggered outputs
Features Flash as program storage. This allows in-circuit firmware upgrade via PC on-site, without the need for physical replacement of any memory chips
Storage capacity: Stores up to 20,000 user-IDs and 20,000 offline transactions
Reader type: Supports various types of reader such as EMHIDProximity, Mifare Contactless Smart Card reader
Caters for timers and time zones, limiting access and users to different times of the day
Provision for Anti-passback, Automatic Lock Release Time Zone and Automatic PIN Disable Time Zone
Similar to EL2200 programming steps. Initial setupprogramming can be done through EK13 hand-held programming keypad
Equipped with a calendar clock chip to give an accurate date and time
Battery back-up for internal data storage and time clock
Communication interface: Multi-drop or RS485 or Ethernet
Dimensions: 120(H)x140(W)X50(D) mm
Weight: 200g
