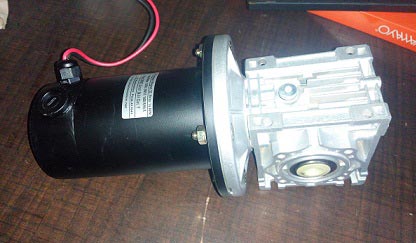

Contact SupplierWe are offering pmdc motor (120 watt).
avail from us high efficiency pmdc motor (120 watt) in variegated specifications. Our company is an unsurpassed manufacturer and supplier of pmdc motor (120 watt) in maharashtra. The offered pmdc motor (120 watt) has a frame size of 90x90 mm and long functional life. These motors are manufactured using optimum quality raw material and latest technology. Customers can buy the pmdc motor (120 watt) at competitive rates.
Model | Output Power | Supply Voltage | Current | Rated Torque | Rated Speed |
W | V | A | N.m | RPM | |
J 90PG90N– 1 | 120 | 24 | 6.2 | 0.8 | 1450 |
J 90PG90N– 2 | 120 | 90 | 1.56 | 0.8 | 1450 |
J 90PG90N – 3 | 120 | 180 | 0.85 | 0.8 | 1450 |
RATED TORQUE OF GEARHEAD
50 Hz | UNIT: Above: N.m /below: Kgfcm | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RPM | 500 | 416 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 |
JDA 9PG120 |
18 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
Output Torque |
1.73 | 2.07 | 2.88 | 3.45 | 4.31 | 5.18 | 64.7 | 77.6 | 93.2 | 11.65 | 13.97 | 16.77 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
Output Torque |
17.3 | 20.7 | 28.8 | 34.5 | 43.1 | 51.8 | 64.7 | 77.6 | 93.2 | 116.5 | 139.7 | 167.7 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
