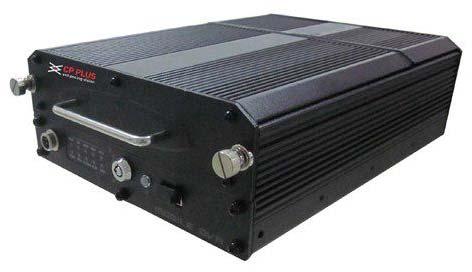

16 Channel Mobile DVR

Listing ID #958982

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are offering 16 Channel Mobile DVR to customers all over India. We are an eminent 16 Channel mobile DVR Supplier from Andhra Pradesh. Our 16 Channel mobile DVR has a revolutionary anti-vibration....

View More Details

Send Enquiry

Product Details

We are offering 16 Channel Mobile DVR to customers all over India. We are an eminent 16 Channel mobile DVR Supplier from Andhra Pradesh. Our 16 Channel mobile DVR has a revolutionary anti-vibration design with built-in GPS. Customers can avail it from us at economical rates.
Main Features :

16 Ch. 2CIF H.264 Mobile DVR
Total resource 16Ch CIF
Built-in 3G module for remote monitoring
H.264 video compression
Supports external Wifi 802.11N for all the regular video files & alarm
files download.
Supports 2 HDD (up to 2TB)
Built-in GPS
Built-in power protecting function
Mirror recording via SD card for backup to get the important video files
in the last minutes.
Revolutionary anti-vibration design for 360°
Pre-recording max. 60 mins

Technical Specifications

Operating System	Embedded Real-time Linux
Control Mode	IR remote control, control panel, network
Operation Interface	Semi-transparent GUI
Video Systems	NTSC/PAL
Total Resource	16 Ch. 2CIF
Resolution	PAL: D1 (704 × 576), HD1 (704 × 288), CIF (352 × 288) NTSC:D1(704×480), HD1(704×240), CIF(352×240
Video Input	16 Channels(Aviation-Din x16)
Video Output	2 Channels(Aviation-Din x2)
Recording Mode	General/schedule/alarm (sensor trigger, speed, acceleration, video loss, temperature
Audio Input	16 Channels(Aviation-Din x16)
Pre-recording	160 munites
Audio Output	2 Channels(Aviation-Din x2)
Post-recording	30800 seconds
Display Split	1/4/9/16
Mirror Recording	Supports
OSD	GPS information, alarm, temperature, acceleration, voltage, device information, fIrmware version, MCU version, network status
Image Quality	1~8 levels adjustable (1 is the best)
Playback	1 Ch. by local playback, 1/4/8/16 channels by playback software
GPS	GPS location tracking, speed detection and sync time(for both internal & external)
Search Mode	Date/time, channel, event
Sensors	8 Inputs, 2 Outputs
Backup Mode	USB, HDD, Network
USB	USB 2.0 × 2
Hard Disk	2.5” SATA HDD Max 1TB x 2
Ethernet	RJ45 port (10/100M)
UPS	Uninterrupted power supply for MDVR
MIC	Audio communication with central office
Panel	Control panel, Mini LED panel Optional
Video/Audio Compression	H.264/ADPCM
3G Support	HSDPA/EVDO
WiFi	802.11 b/g/n
Serial Ports	RS232 × 2, RS485 × 2
Power Input	8 ~36 V
Power Output	12V max 2A; 5V max 2A
Power Consumption	<15W (without cameras and any accessories)
Dimension (W×H×D)	251mm × 190mm × 78mm
Weight	4Kg.
Operating Temperature	-10+ 65(please use built-in heater if the temperature is below 0)
Relatively Operating Humidity	8%~90%
Vibration Resistance	< 2 Grms
Shock Resistance	< 1200 Grms
Certification	CE, FCC, RoHS
