The base for water soluble fertilizers is acid. Hence, all the traditional equipment becomes useless due to corrosion. For this purpose, we have designed our range of Venturi Injectors that is an innovation to the Agricultural Industry. Using this injector, one can supply uniform quantity of fertilizers in the entire field. Hence, it is very essential to install Venturi Injectors. The best attribute of the Venturi Injectors is that it does not require any external power. It works on an existing pressure of pumps. The Venturi Injectors are also available in different types to you’re your requirements.
Features
An Ideal method for ISRAEL cultivationCapacity of pulling 120 to 900 Liter water per hour
Used For Crops Like
GrapesBananaSugarcanePomegranateFlowers
Advantages
Safety from sunlight or heat : Manufactured using high quality raw materials and also by using high standard ultra violet materials, it is safe from sun heat. It also helps to increase its lifeRust Proof : It is safe to use Venturi Injectors because water and chemicals do not affect it. As it is rustproof, it does not get corroded. Therefore we heed not replace it every now and thenChemical Resistance : Chemicals like acids and bases do not make any adverse effect on it. So it lasts for years together. The cost of maintenance and repairs is very low. It is also more durable and strong hence no necessity of replacing or repairing it and no maintenance is required
Working details
Venturi Injectors works on pressure loss operation system. Hence it cannot work unless 0.5 kg pressure is reduced for 2" Venturi Injectors and 0.3 kg loss for the1.5" Venturi Injectors10000 lit. Water is flown per hour with 2" injector. Hence it should be used where water is available more than 10000 lit. Per hourBefore using Venturi Injectors cleanliness of Sand filter and screen filter is necessary. Venturi Injector cannot work if it is choked upFor installing Venturi Injectors the area of field should be even. If the field area is very high, then filter and injector can not be installed in lower area. In such a case Venturi Injectors should be installed or irrigation pointWhich installing Venturi Injectors the arrow () should be adjusted in the direction of the flow of waterWe can install Venturi Injectors on pipe lines of 4", 3", 2.5" or 1 .2" measures. Use a reducing ‘T' in which there is a ball valve of that capacity in the middleAfter installing Venturi Injectors, start the drip irrigation for 15 to 20 minutes. After exhaustion of air pressure in water, Venturi Injectors should be startedEnsure that succession pipe is tightly fitted on hose nipple; otherwise liquid fertilizer cannot be operatedWe can install Venturi Injectors in any position viz. Vertical (|), Horizontal (—), Inclined (/) etc
Note
Above 10000 Ltr. Dripper DischargeSuction Pipe was 20 mm size.Different places pump load measurement will be different
Sizes available

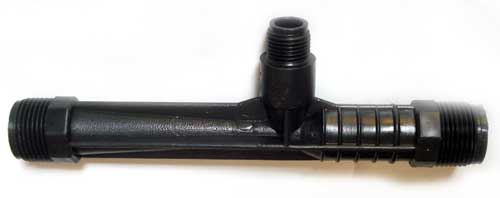

1x9 Ventury12x2 Light Ven12x2 Plain Ven12x2 Thread Ven15x2 Heavy Ven. and many more
Raw Material Used
NylonUPVCPoly Propylene
Applications
Inject to Water soluble fertilizersIn farms
Price
200/- up to 2000/-
Technical Specification
Jet Technology
Colors Available
BlackBlueGreen
Specificatons
PumpPipeline Size2 Inch Venturi1.5 Inch Venturi0.5 kg pressure drop1.0 kg pressure drop0.3 kg pressure drop0.5 kg pressure dropSuction RateSuction RateSuction RateSuction Rate7.5 HP90 mm900 mini2700 max.1200 mini3600 max.1200 mini1800 max.1200 mini2400 max.5 HP75 mm600 mini1800 max.1600 mini2400 max.800 mini2000 max.800 mini2400 max.3 HP63 mm120mini900 max.600 mini1800 max.600 mini1600 max.600 mini2000 max.NoteAbove 10000 Ltr. Dripper DischargeSuction Pipe was 20 mm sizeDifferent places pump load measurment will be different
