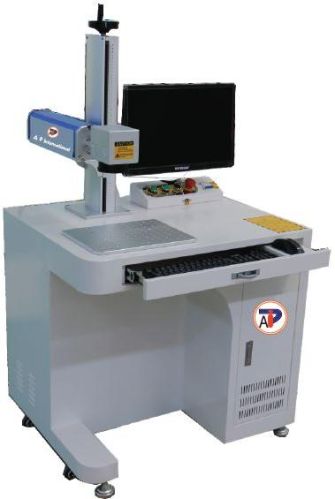

Fiber Laser Marking Machine

Listing ID #4215543

Get Latest Price

Weight150kg
Dimension1250x650x650mm
Wavelength1064nm
Beam DeflactionDigital High Speed Galvanometer
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Weight 150kg
Power Consume 0.5kW/hr.
Dimension 1250x650x650mm
Power Supply AC 220V SOK.
Beam Deflaction Digital High Speed Galvanometer
Marking Area 1000100mm (Optional)
Typical Applications Marking , Coding ,Processing on the fly , Rotary Marking
Linear Speed 8000mm/sec
Average Output Power 10W 20W 30W
Laser Type Fiber Laser
Marking Depth 2 mm (Depending on Material)
Wavelength 1064nm
Models BT-10 BT-20 BT-30
Protective cover optional
Z Axis 550mm, Motorized and Manual(Both Option)
Min Cha. Height 0.2mm
Cooling Air Cooled (Temp 24C to 27C) (Recommended)

Use
It is widely used in electronic components, hardware, electrical industry, daily consumer goods, sensors, auto parts electronics, crafts, precision apparatuses, gifts and ornaments, medical equipments, high-low-voltage appliances, bathroom accessories, battery industry IT industry, etc. Typical Industries -Automobiles , Electronics & Semiconductors ,Fond & Beverages, Jewellery, Medical, Machinery, Tool & Tooling.
Features

Fiber laser with pulsed and CW Operation
1,00,000 hr. MTTF Tested diode life time
High speed Making Compatible
First and last pulse equally usable
Bitmap marking compatible
Maintenance free operation
Maximized peak power over full operational repetition rate
Automatic pump diode timing control
Common Specification
Hardware Requirements
Intel Dual Core Processor
Gigabyte Motherboard ]
160 GB HOD, 2 GB RAM
17" Monitor 8, Keyboard Mouse
Interface : USB iNTERFACE
Operating System : Win 7 OS / 32 bit / 64Bit Supported.

With international high-quality fiber laser, it can mark all sorts of precise patterns according to customer requirements.

Multiple power laser light source, available for many industries.

Fast speed, high efficiency, stable output power high reliability.

Ling life, maintenance-free within 1,00,000 hours, operated in 24 x 7 hours working condition.

High electro-optic conversion efficiency, little energy coupling loss, less power consumption with iust 0.5 kW/hr

Small and compact siz, easy to carry, save production space.

USE

lt is widely used in electronic components,
hardware, electrical industry daily consumer
goods, sensors, auto parts electronics, crafts,
precision apparatuses, gifts and ornaments,
medical equipments, high-low-voltage
appliances, bathroom accessories, battery
industry, [T industry etc

'Typical Applications :
• Marking
• Coding
• Processing on the fly
• Rotary Marking
Typical Industries :
• Automobiles
• Electronics & Semiconductors
• Food & Beverages
• jewellery
• Medical
• Machinery
• Tools and Tooling
