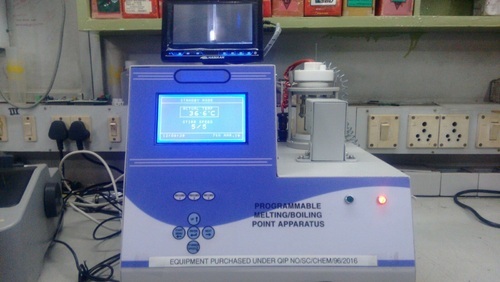

Digital High Precision Melting Point Apparatus

Listing ID #4337519

Get Latest Price

Temperature RangeRoom temperature +2 °C - 300 °C.
Weight15 Kg.
Temperature sensorPt – 100.
No of capillary tubes3 for Melting Point/ 1 for Boiling Point.
Supply Type Manufacturer, Supplier
Preferred Buyer Location India only

View More Details

Send Enquiry

Product Details

Temperature Range Room temperature +2 °C - 300 °C.
Weight 15 Kg.
Heating Media Silicon Oil.
No of capillary tubes 3 for Melting Point/ 1 for Boiling Point.
Display 240 x 128 Graphic LCD.
Power Supply 230V, 50Hz, 500 W.
Temperature sensor Pt – 100.
Printer Parallel Interface for 80 Columns Dot Matrix Printer.
Dimension (W x L x H) 38 x 41 x 41 cm.
Heater Immersion Type.
Accuracy Better than 0.5 °C.
Input Tactile Keyboard + PS – 2/PC keyboard.
Capillary length -75 mm; Diameter: 1.4 – 1.6 mm.
Temperature resolution 0.1 °C.
Heating rate 1 °C/minute or 0.5 °C/minute (Starts from set temperature – 10 °C).

Features

Designed to measure and record the melting point of 3 samples simultaneously.
Melting point apparatus is designed for accurate measurement of melting and boiling point of samples.
Equipped with high resolution camera for capturing sample images being displayed on high resolution monitor; helps user determine sample melting point accurately.
This apparatus can be used to determine the melting point of three samples at a time, while boiling point of one sample can be determined at a time.
The self-explanatory tactile keyboard enables the operator to adjust the speed of the stirrer and select a particular test according to the product name
Facilitated to select melting point or boiling point test type.
Memory provision for storage of 99 product names with their expected melting point.
Memory provision for storage of 25 product names with their expected boiling point.
Accessorized with a graphic LCD screen displaying simple instructions for operation of the apparatus and real time Time v/s Temperature graph.
The operator needs to input a password before starting a test.
Provision for unknown/new product evaluation.
Validation program for standard samples.
8 operator names can be stored with their corresponding passwords.
Memory to store approximately 150 test records.
Automatic stirrer speed controller logic.
User programmable ramp rates (0.5??? C per minute / 1??? C per minute).
PS-2/PC keyboard and DOT MATRIX printer interface.
Data storage for operator names, product details and test data.
On line printing facility available.
Off line printing facility features selective printing as per date and product.
Validation program for standard samples like Vanillin, Acetanilide and Caffeine is incorporated.
Facility to print test reports with user’s company name and instrument number.
Password protection at different level.
