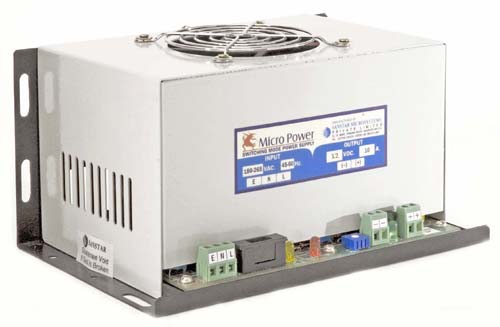

Contact SupplierClients can avail from us, highly functional 12VDC SMPS. This 12VDC SMPS exhibits higher level of perfection in its functionality as we use best quality components in the production process. Our 12VDC SMPS has latest design which is PWM Controller and MOSFET based. This 12VDC SMPS is tested by the experts for flawless functioning and safe usage & is reasonably priced.
Features
Maximum output power of 150WHigh efficiency, High reliability, Low costAC input voltage range 180V ~ 265VACBuilt-in EMI filterLow Ripple and NoiseSoft start circuit to limit the AC inrush currentScrew type input and output connectorsCompact, light weightMomentary output short circuit protection, over voltage protection100% Full load burn-in test
Specifications
Input CharacteristicsInput Voltage180V – 265V AC.Input Frequency45 – 60 Hz.Input Connector3-pin screw type connector.Input Protections4 Amp, 20mm fast blow, Glass fuseMOV, for input over voltage protection.FiltersEMIRFI.Output CharacteristicsOutput Voltage12 VDC..Output Current10 A.Max. Output Power150 W.Output Connector2-pin screw type connector.Output IndicationOutput Ok – Green colour LED.OVP – Red colour LED.Output ProtectionsOver Voltage Protection.Line Regulation< +- 0.5%.Load Regulation< +- 0.5%.Ripple and Noise< +- 1% P-P.Environmental CharacteristicsOperating Temperature55oC at Full Load and 70oC at 60% load.Maximum Temperature Rise50oCCoolingForced coolingRelative Humidity95% NC.General CharacteristicsEfficiency70%.Hold Time> 20mSec on full load.Dimension (L X W X H) mm195 X 130 X 100MountingPanel Mounting
Note
All these parameters are specified at 230V AC inputFor continuous improvement, specifications are subject to change without prior intimation
