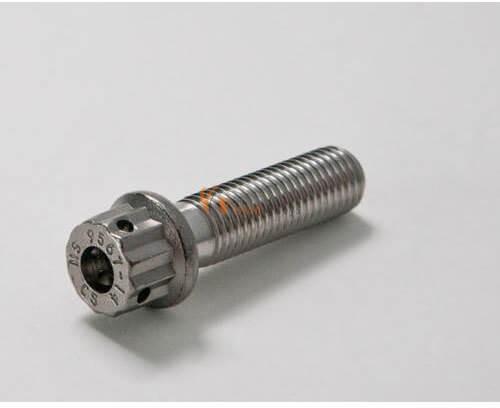

12 Point Flange Bolts, Standard : DIN, ASTM

12 Point Flange Bolts, Standard : DIN, ASTM

Listing ID #4051826

Get Latest Price
  • MOQ 5 Piece
  • StandardDIN, ASTM, BS and all International Standards
  • Length3 mm to 200 mm, Custom Sizes
  • Material GradeStainless Steel 310 ,316,317,347
  • Tolerance+/-0.01mm to +/-0.05mm
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

Vision Alloys
Girgaon, Mumbai, Maharashtra
View Number
  • Member Since 6 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Standard DIN, ASTM, BS and all International Standards
  • Length 3 mm to 200 mm, Custom Sizes
  • Size M3 - M56 , 3/6" to 2", Custom Sizes
  • Tolerance +/-0.01mm to +/-0.05mm
  • Material Grade Stainless Steel 310 ,316,317,347
  • Packing canton, pallet, Small Boxs or customer request

Thread Size M5 M6 M8 M10 M12 M14 M16 M20
Pitch 0.8 1 1.25 1.5 1.75 2 2 2.5
L (mm) 6-2000 6-2000 6-2000 6-2000 6-2000 6-2000 6-2000 6-2000
Thread Size 1/4″ 5/16″ 3/8″ 7/16″ 1/2″ 9/16″ 5/8″ 3/4″
L (mm) 1/4″-80″ 1/4″-80″ 1/4″-80″ 1/4″-80″ 1/4″-80″ 1/4″-80″ 1/4″-80″ 1/4″-80″
Standards :   DIN6921 , ANSI, BS , JIS B 1118, GB and Non-standard.
Mechanical Properties:   4.6, 4.8, 5.6, 5.8, 6.8, 8.8, 9.8, 10.9, 12.9
    2, 5, 8 10
Surface Treatment:   Plain, Bule/White/Yellow Zinc, Black , Black Zinc, Mechanical Zinc, Hot Dip Galvanized, Nickel and Dacro.
Sizes:   Dimension :6mm–64mm ; 1/4″-2-1/2″
    Length: 6mm–2000mm ; 1/4″-80″
12-POINT FLANGE BOLTS SPECIFICATION
Material Standards Grades
Nickel Alloy 12-Point Flange Bolts ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3)
Stainless Steel 12-Point Flange Bolts ASTM / ASME A/SA 193 / 194 B 8 (304), B 8C (SS 347), B 8M (SS 316), B 8 T (SS 321), A 2, A 4
Alloy Steel 12-Point Flange Bolts ASTM / ASME A/SA 193 / 194 GR B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M
Duplex Steel 12-Point Flange Bolts UNS NO. S 31803, S 32205 Range: M10 TO M100, LENGTH UPTO 5 METERS
Nonmetallic Materials: Acrylic, Kel-F, Lexan, Polypropylene, Poly Vinyl Chloride, Teflon, Zytel 31, 101, 105
High-Temp Alloys Discaloy, 19-9 DL, 16-25-6, A286, Titanium, Nimonic 80, Mulitmet, Haynes 25, Greek Ascalloy, Unitemp 252, Udimet 500, Rene 41, Inco 700, Inco 901, Hastelloy X, 235, Waspaloy, RA 330
Copper Base Alloys Copper, Brasses: Yellow, Free-cut, Red, Naval, Bronze: Commercial, Phosphor, Silicon A & B, Aluminum, Silicon-Aluminum, Manganese, Ampco Alloys, Munitz Metal, Cupro-Nicles
Aluminum Alloys: 1100, 2011, 2014, 2017, 2024, 3003, 5052, 6053, 6061, 7075
Trademarks: Carpenter, Armco, INCO, Cabot, DuPont.
Finish: Black Oxide, Zinc Plating, Hot Dip Galvanized
