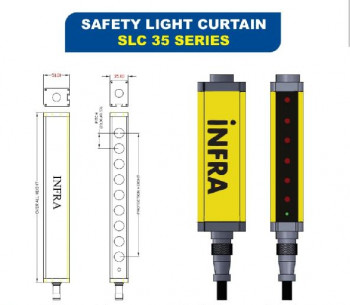

Metal safety light curtain sensor, Certification : CE Certified

Listing ID #6338840

Specifications:

• Power Supply : 24 V DC
• Supply Protection : Reverse Polarity
• Output : PNP output 100 mA at 24 V dc
• Output Protection : Short Circuit, Overload
• Output Indications : Through LEDs
• Response Time : 10 - 30 m sec. (Sensor)
• Restart : Automatic
• No of elements : 4,6,8,10,16,24,32 nos
• Beam By Pass : Provided for hand protection models
• Protected Heights : 90 - 1710 mm
• Pitch offered (mm) : Hand: 20/30/40/50,
• Finger: 20LX, Body: 90
• Max Range : Adjustable up to 3 mtrs (5 mtrs max possible)
• Electrical Connections : Plug in Connector for Emitter & Receiver
• Standard Cable length : 5 meters for Emitter, 3 metes for Receiver
• Operating Temperature : up to 55 Degrees centigrade
• Electronic Switches offers new generation Safety Light Curtains / Safety Guards based on advanced micro controller technology. These are available in two types. Parallel Beam ( SLC : type II beam ) and Cross Beam ( LX : type x beam ). For the same protected height, Cross Beam Light Curtains are more sensitive as there are more number of active beams in the same area.
• Easy to install & may be mounted in any position with non-critical alignment between sensors.
• Switches are provided for blanking / by-passing individual channels.
• Sensors can be connected directly to PLC for further interlock
