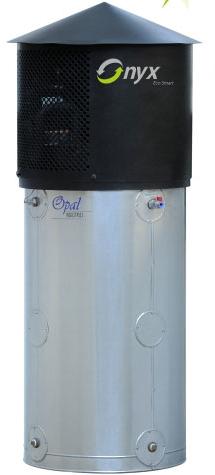

Contact SupplierWe manufacture, export and supply highly demanded Water Heaters. These Water Heaters are precision engineered and are manufactured as per the industry norms. Our Water Heaters are high performing and easy to operate. We offer our Water Heaters at affordable prices.
Operation
Salient Features
Model | Onyx | 02 -100 |
---|---|---|
Tank Size | Lift | 100 |
Heating capacity | Kcal/hr | 6000-7700 |
Heating capacity | Kw | 7-9 |
Electrical consumption | Kw | 2 |
Operating C.O.P | 3.5 - 4.5 | |
Voltage | Volts | 230 |
Phase | Single | |
Frequency | Hz | 50 |
Ambient Temp. range | oC | -5 to 50 |
Max Water temp. | oC | 60 |
Temp. Display | digital | |
Max. Water Pressure | kg/cm2 | 7.5 |
Water connections | mm BSP | 15 |
Overall diameter | mm | 570 |
Overall Height | mm | 1565 |
Dry Weight | Kgs | 125 |
Operating Weight | Kgs | 225 |
