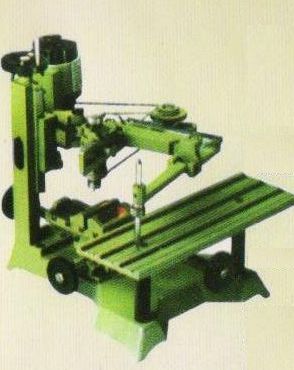

Contact SupplierWell-established name in the domain, you can count on us for presenting extensive array of Two Dimensional Portable Pantograph Engraving Machine (SMT-501). Our company is empowered by a vast distribution network that enables us to reach buyers anywhere and deliver orders on time.
Driver Motor | Capacity | 1/2 H.P. 4500 rpm |
---|---|---|
- | Rating | Continuous |
- | Rotation | Clockwise |
- | Cycles | 50 |
Spindle | Speed | 10000 rpm |
(Cutter Head) | Type of drive | Nylon endless cords |
- | Cutter Capacity | 3 mm |
- | Vertical Travel | 6 mm |
Colour | - | Green |
Weight Approx. | - | 34 Kgs |
Overall Dimensions | L X W X H | (540 X 500 X 480 mm) |
Compound Vice | Job holding device | 100 mm |
Pantograph | Ration (Max) | 01:01:00 AM |
- | Ration (Min) | 01:07:00 AM |
- | Nose to table top | 100 mm |
- | Cross-wise | 75 mm |
- | adjustment | - |
- | Vertical Distance | - |
- | Spindle | - |
Template Table | Clamping area | 145 x 395 mm |
- | No. of copy holding | Three (fixed) |
- | siots | - |
- | Blank Size | 25 mm |
