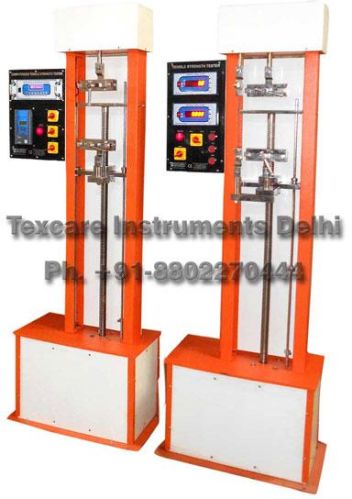

Electric Digital Tensile Strength Tester, Voltage : 110V

Listing ID #1439159

Ours is an acknowledged name involved in providing highly efficient Digital Tensile Strength Tester, which is used for determining the tensile strength and elongation of various products like rubber, fabric, wire, elastomers, cable, paper & packaging, etc. Digital Tensile Strength Tester is known for providing quality testing and widely used in research institutions, universities and colleges, industrial and mining enterprises, etc. Our Digital Tensile Strength Tester is based on the Constant Rate of Traverse (CRT) principle. The sample is held between the two jaws of the Digital Tensile Strength Tester in which the upper jaw remains stationary and the other is made to move at a known fixed speed with the help of motor, gear box and lead screw arrangement (100mm or 300mm per minute). Digital Tensile Strength Tester is also provided with hardened lead screws for frictionless durability.
Related Standards :

• BS 1610
• BSES 1002-3
• ASTM E-4
• DIN 5122/1

Technical Specification :

• Capacity of Tester with capacity of 500kgf
• S Type Load Cell fixed with Top Grip
• Traverse Speed - Variable Spped 50 to 500 mm/min
• Max. Grip Separation 1000 mm
• Min. Grip Separation  25 mm
• Top Grip is fixed and Bottom Grip is Movable Type.
• Elongation measurement by Steel Scale and Digital Counter Meter Both.
• Digital Display of Load and Elongation.
• Peak Value of Last test can be read.
• User friendly key panel with switch of Zero setting and peak value of last test
• Motor : ½ HP Single phase 220V 50 Hz. ( for Capacity up to 100 Kgf )
• Power - 220 V AC 50 Hz.
• Safety Device  By Limit Switch to protect from Over Traverse.

Other Information :

• Pay Mode Terms : T/T (Bank Transfer), Western Union, Other
• Minimum Order Quantity : 01 Set
• Port of Dispatch : Delhi - India
• Production Capacity : 200 Machines per Month
• Delivery Time : Ready Stock
• Packaging Details : Wooden Packing
