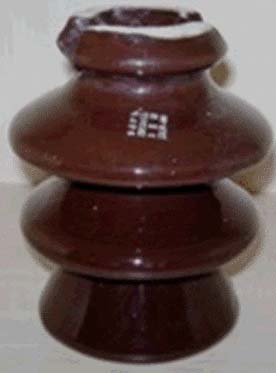

Contact SupplierWe are offering 11 KV Pin Insulator that is widely demanded in the domestic for its accurate dimensions and optimum finish. We manufacture our 11 KV Pin Insulator using best grade raw materials like porcelain, etc. and latest technology. We, as a reputed manufacturer, provide customization options on our product to meet the variegated needs of the buyers. Also, we are a reliable Supplier of our 11 KV Pin Insulator from Khurja (India).
Drawing No.
|
GC-PN-11 |
GC-PN-22 |
GC-PN-33 | GC-PN-44 | ||
Highest System Voltage |
Kv |
12 |
12 |
12 |
12 |
|
Working voltage |
Kv |
11 |
11 |
11 |
11 |
|
Creepage distance Minimum |
Mm |
230 |
230 |
280 |
320 |
|
Visible discharge voltage |
Kv |
9 |
9 |
9 |
9 |
|
Mechancial Failing Load |
Wet |
Kn |
5 |
5 |
10 | 10 |
Dry |
Kv |
45 |
45 |
55 |
65 |
|
Power Frequency Flashover Voltage |
Wet |
Kv |
45 |
45 |
55 |
55 |
Dry |
Kv |
55 |
55 |
65 |
75 |
|
Impulse withstand voltage |
|
Kvp |
75 |
75 |
75 | 75 |
Puncture voltage |
Kv |
105 |
105 |
105 |
110 | |
Thimble-IS : 2486 (Part II)/BS : 3288 (Part II) |
Small |
Small |
small/large |
small/large |
||
Net weight (approx) |
kg. |
1.0 |
1.2 |
1.5 |
2.2 |
|
Specification as per IS : 731, BS : EN 60383, IEC : 383 |
||||||
Insulator can be supplied with or without Radio-Free glaze |
