general information | |

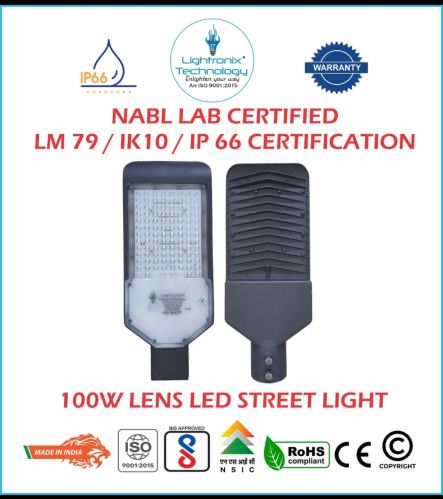

order code | lt-100wsl-lens (100w lens led street light) |
make | lightronix technology |
country of origin | india |
lighting source & type | smd 3030 led |
number of led | 100 |
optical parameters | |
led beam angle | 90 degree |
cri (color rendering index) | >80 |
led life span | >60000 hours |
color | white/warm white/cool white (as per order) |
color temperature | 2700-6500k(as per order) |
led voltage/current | 6.2v/150ma |
led make | bridge lux |
optical lens | yes |
luminous efficiency | 140 lm/w |
total lumens | 14000(±5%) |
optical efficiency | >93% |
thermal efficiency | >90% |
electrical parameters | |
wide input voltage range | 90-310vac(with auto cutoff) |
operating frequency | 50/60hz |
power consumption | 100 watt |
power factor | >0.95 |
thd | 90% |
supply phase | single phase supply |
over voltage protection | 440vac protection |
under voltage protection | 90vac |
auto cutoff voltage | lower side310vac |
pcb information | |
pcb thickness | 1.6mm(±5% tolerance) |
pcb material | pure aluminum-copper |
copper layer thickness | standard 0.35 micron |
copper conductivity | >1 watt |
pcb size | 192x148 mm |
mechanical parameters | |
housing material | aluminum pressure die casting |
housing color type | metal powder coated |
housing shape | rectangle |
total luminaries weight | 1.630 kg |
luminaries size | 480 ×190 × 72 mm3 |
pole dia entry | 70 mm |
mounting device | clamp |
mounting style | pole/wall |
glass type | poly carbonate lens |
cable entry option | pg7 cable gland with rubber washer |
screw type | stainless steel screw |
gasket type | silicone rubber gasket |
ip rating | ip65/ip66 |
impact rating | ik08/ik10 |
marking type | laser marking/engraving |
