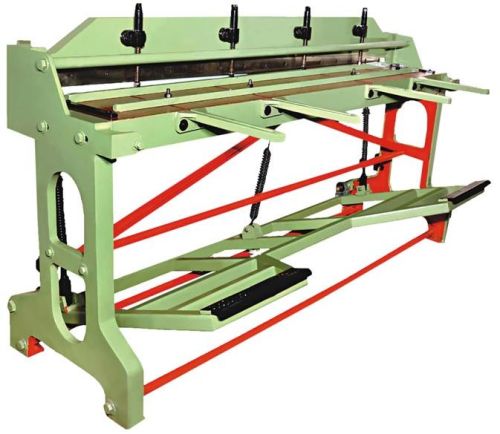

Contact SupplierThe company has acquired the status of the leading Manufacturer and Supplier of Treadle Shearing Machines in Surat. The Treadle Shearing Machines, offered by the company, are known for their quality and are available with the best grade accessories. The company offers the Treadle Shearing Machines at the best prices on a timely basis.
Standard Accessories
Optional Accessories
Model No. | UCS-2 | UCS-3 | UCS-4 | UCS-5 | UCS-6 | UCS-7 | UCS-8 | UCS-9 | UCS-10 |
---|---|---|---|---|---|---|---|---|---|
Cutting Cap Length x Thick | 1525 x 2 | 2030 x 2 | 2540 x 2 | 3125 x 2 | 1270 x 4 | 1525 x 4 | 2030 x 4 | 2540 x 4 | 3125 x 4 |
Depth of Throat | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Front Gauge | 900 | 900 | 900 | 900 | 750 | 750 | 750 | 750 | 750 |
Rear Gauge | 750 | 750 | 750 | 750 | 1000 | 1000 | 1000 | 1000 | 1000 |
Table Height | 850 | 850 | 850 | 850 | 850 | 850 | 850 | 850 | 850 |
Table Width | 425 | 425 | 425 | 425 | 450 | 450 | 450 | 450 | 450 |
Blade Width x Thickness | 50 x 12 | 50 x 12 | 50 x 12 | 50 x 12 | 63 x 18 | 63 x 18 | 63 x 18 | 63 x 18 | 63 x 18 |
Stroke Per Minute | 60 | 60 | 50 | 50 | 60 | 60 | 50 | 50 | 50 |
Hold Down To Knife Edge | 20 | 20 | 20 | 20 | 25 | 25 | 25 | 25 | 25 |
Machine Length | 2450 | 2900 | 3450 | 4150 | 2300 | 2500 | 3000 | 3550 | 4200 |
Machine Width | 1450 | 1450 | 1450 | 1525 | 1525 | 1525 | 1700 | 1700 | 1850 |
Machine Height | 1275 | 1375 | 1375 | 1400 | 1320 | 1320 | 1425 | 1425 | 1500 |
Main Motor | 3 hp | 5 hp | 5 hp | 7.5 hp | 5 hp | 5 hp | 7.5 hp | 7.5 hp | 10 hp |
Weight Approx. | 2050 | 2600 | 3350 | 4100 | 2350 | 2750 | 3250 | 4200 | 5300 |
