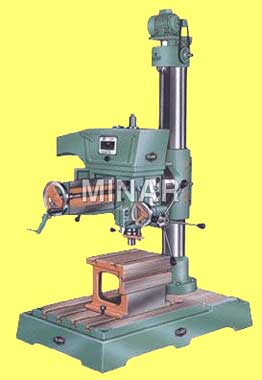

Contact SupplierWe provide heavy duty Drilling & Milling Machine in the national as well as overseas market. We have developed and designed our Industrial Milling Machine as per the international quality and norms. Our drilling and milling machines are manufactured from fine raw materials available in the market. These machines are used for mixing and grinding all kinds of solid and liquid substance. Apart from that, we are identified as one of the reputed Drilling & Milling Machine Manufacturers and Suppliers in India.
Drilling capacity in steel | 32.38 | 1*1/4,1*1/2 |
---|---|---|
Max dis, spindle centre to column | 762 | 30 |
Machined area of base | 813x610 | 32x24 |
Dia of column | 158 | 6*1/4 |
Spindle travel | 152 | 6 |
Max dist, spindle nose to base | 914 | 36 |
Vertical adjustment of arm | 1028 | 40*1/2 |
Size of box table | 368x305x305 | 14*1/2x12x12 |
Overall height | 1702 | 67 |
Floor space occupied | 762x1295 | 30x51 |
No. of spindle speeds | 8 (gear drive) | 8 (gear drive) |
Range of spindle speeds | 82-2425 | 82-2425 |
Spindle bore | MT No. 3 M.T.4 | MT No. 3 M.T.4 |
Spindle feed by | star lever & worm | star level & worm |
Drill motor | 1 HP. -(1400 rom.) | 1 HP. -(1400 rom.) |
Elevating moto | 0.5 HP. | 0.5 HP. |
Gross Weight | 1000 Kgs. | 100 Kgs. |
Nett weight | 800 Kgs. | 100 Kgs. |
Case dimensions | 950 x 1750 x1400 | 950x1750x1400 |
