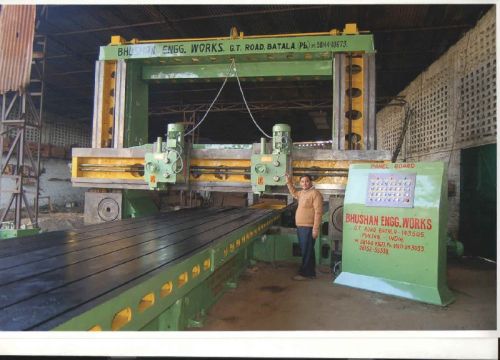

Contact Supplierplano milling machine
Stroke of Machine | 8ft | 10ft | 12ft | 16ft | 24ft |
---|---|---|---|---|---|
Length of Bed | 12ft | 15ft | 18ft | 24ft | 36ft |
Length of Table | 9ft | 11ft | 13ft | 17ft | 25ft |
Stroke of Table | 8ft | 10ft | 12ft | 16ft | 24ft |
Maximum width Between upright | 4ft | 5ft | 6ft | 6ft | 8ft |
Maximum height under Cross Rail | 4ft | 5ft | 5ft | 6ft | 6ft |
Width of Cross Rail | 15ft | 18" | 20" | 22" | 24" |
Face of Pillar | 11ft | 13" | 18" | 20" | 26" |
Universal Milling Head | 3h.p. | 5h.p. | 7.5h.p | 10h.p. | 15h.p. |
Reduction Gear box | 3h.p. | 3h.p. | 5h.p | 5h.p | 7.5h.p |
Cross Rail Feed Gear Box | 2h.p. | 2h.p. | 2h.p. | 2h.p. | 3h.p. |
Automatic Lifting Attachment | 2h.p. | 2h.p. | 2h.p. | 3h.p. | 5h.p |
Milling Head Speeds | 4 | 4 | 4 | 4 | 4 |
Milling Head Speed Range | 120-210-300-500 | 120-210-300-500 | 120-210-300-500 | 100-180-275-400 | 75-140-220-300 |
Reduction Gear (No. of Feeds) | 18including rapid) | 18including rapid) | 18including rapid) | 18including rapid) | 18including rapid) |
Reduction Gear Box (Range of Feeds) | 200mm to 300mm | 200mm to 300mm | 200mm to 300mm | 200mm to 300mm | 200mm to 300mm |
- | Per minute | Per minute | Per minute | Per minute | Per minute |
