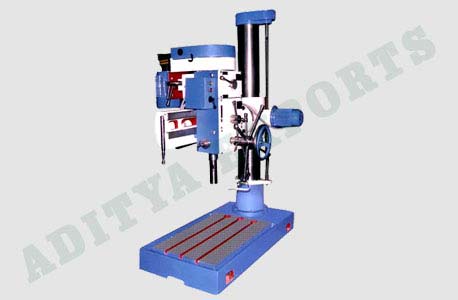

With us, buyers are free to place orders and can expect timely deliveries of the same. Enlisted amidst the renowned Suppliers of Radial drill Machine, we cater to varied demand of the customers in this sphere.
| Drill Head | AER-40B | AER-40C | AER-50B |
| Drilling Capacity (In steel/cast iron) |
40/50 | 40/50 | 50/60 |
| Drilling Depth | 180 | 180 | 225 |
| Taper Spindle Nose Scoket |
MT-4 | MT-4 | MT-5 |
| No. of Spindle Speed/ range (RPM) |
6(55-665) | 12(56-1000) | 9(45-695) |
| No. of Spindle Feed/ Range (RPM) |
3(0.1 to 0.2) | 3(0.1 to 0.2) | 3(0.1 to 0.2) |
| Drill Power | 1.5 KW | 2.2 KW | 2.2 KW |
| Capacity | |||
| Drilling Radius Max(A) | 1050 | 1050 | 1100 |
| Min.(B) | 375 | 375 | 450 |
| Drilling Head Traverse (C) | 675 | 675 | 650 |
| Distance Base Plate to Spindle | |||
| Max(P) | 1000 | 1000 | 1300 |
| Min(M) | 225 | 225 | 225 |
| Diameter of Column Sleeve (D) | 255 | 255 | 310 |
| Working Surface of The Base Plate GxH |
900x680 | 900x680 | 920x830 |
| Dimensions of Base Plate | |||
| Length x Width x Height (TxUxV) | 1480x700x200 | 1480x700x200 | 1585x850x200 |
| Arm Elevator Motor | 0.75 KW | 0.75 KW | 1.5 KW |
| Standar Box Table (XxYxZ) | 400x350x350 | 550x420x420 | 550x420x420 |
| Approximate Weight of Machine | 1700 Kgs. | 1850 Kgs. | 3000 Kgs |
