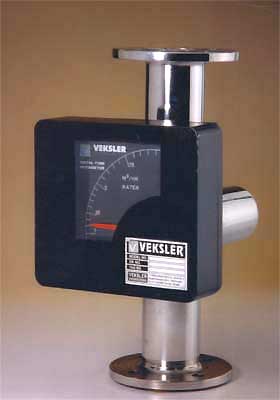

Metal Tube Rotameter, for Industrial, Length : 10-15Mtr

Listing ID #1382430

VEKSLER offers its clients with top quality Metal Tube Rotameter that is manufactured in accordance with international standards. This Metal Tube Rotameter is used for opaque and turbid fluids at high operating temperature and pressures. Metal Tube Rotameters offered by us, are known for their rugged construction, high performance and durability among the clients.
Features :

• ABS/Die Cast Aluminum indicator box with Aluminum pointer and SS 304 hardware
• High Pressure and Temperature service
• Linear flow reading and output signals
• Line size from 1/2" to 4"
• Over all flange to flange length 350 mm
• Flow 100 to 100000 LPH for water and 2000 m3/hr for air
• Flanged connections to any standard ASA, BST, DIN etc.
• Optional alarms and 4-20 mA output
• Accuracy : better than +2% full flow
• Range ability : 10:1
• Repeatability : 0.5%
• Scale : 90^o Angular

Materials Of Construction :

• Top flange : SS 304 / SS 316/ SS 316L/ HastalloyC
• Scale : Anodized Aluminum
• Pointer : Aluminum knife edge sharp
• Indicator Box : ABS/Die Cast Aluminum
• Pipe : As per wetted parts
• Bottom flange : SS 304 / SS 316/ SS 316L/ HastalloyC

Details Required For Sizing And Calculation :

• Service Fluid
• Sp. Gravity of Fluid at operating conditions
• Viscocity of Fluid
• Working Temp & Pressure
• Flow Range
• Wetted Parts MOC
• Line Size , Connection & Orientation
