Our Products
Our Complete range of products are PULL-THROUGH WIRE STRAIGHTENER, COMPACT TYPE DECOILER CUM STRAIGHTENER, CRADLE TYPE DECOILER CUM STRAIGHTENER and NC Leveller Feeder.
Pull - Through Wire Straightener is used for Straightening of wires & rectangular sections.
STANDARD FEATURESThe system comprises of Single Spindle Decoiler along with driven Straightener mounted ahead of it. The feature of the system is that as the are mounted on same base structure, the alignment with respect to each other saving space & installation time.
Available in various models with fixed speed / A. C. variable speed & having loop control system to synchronize with Press-Feeding Speed along with control panel.
The decoiler & straightener heads are selected from our standard range to offer modularity & fast deliveries still maintain the quality levels of individual equipments.
The system comprises of Cradle Unit along with driven Straightener mounted ahead of it. The feature of the system is that as the are mounted on same base structure, the alignment with respect to each other saving space & installation time.
In coil cradle instead of expandable mandrel the coil is placed on driven rollers with adjustable side plates for centering. The side plates are optionally provided with side rollers for prevention of damage in sides for delicate coils.
Available in various models with fixed speed / A. C. variable speed & having loop control system to synchronize with Press-Feeding Speed along with control panel.
The decoiler & straightener heads are selected from our standard range to offer modularity & fast deliveries still maintain the quality levels of individual equipments.
Heavy Duty Hydraulic Cradle type Decoiler cum StraightenerWe can offered Heavy Duty Hydraulic Cradle Unit for thickness uptill 10 mm & width uptill 600mm.
Complete line consists of following.
Additional Information:
Packaging Details : Suitable
Delivery Time : 4-6 Week

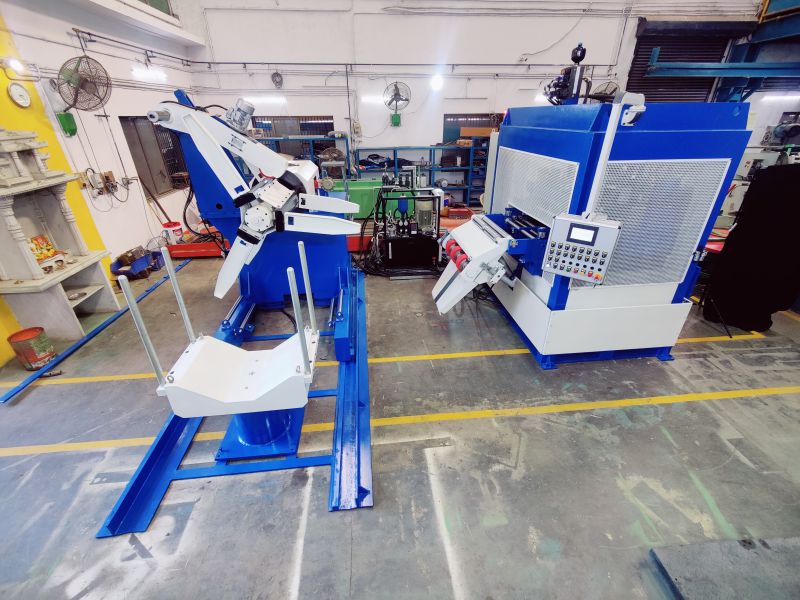

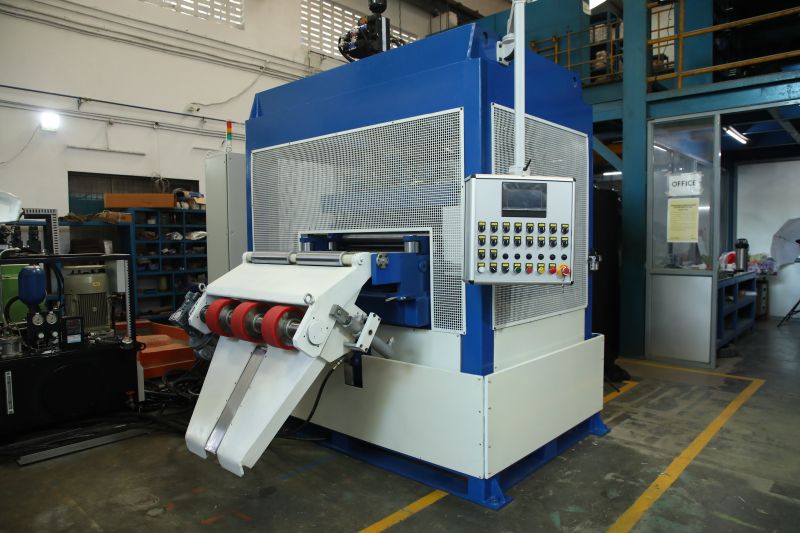

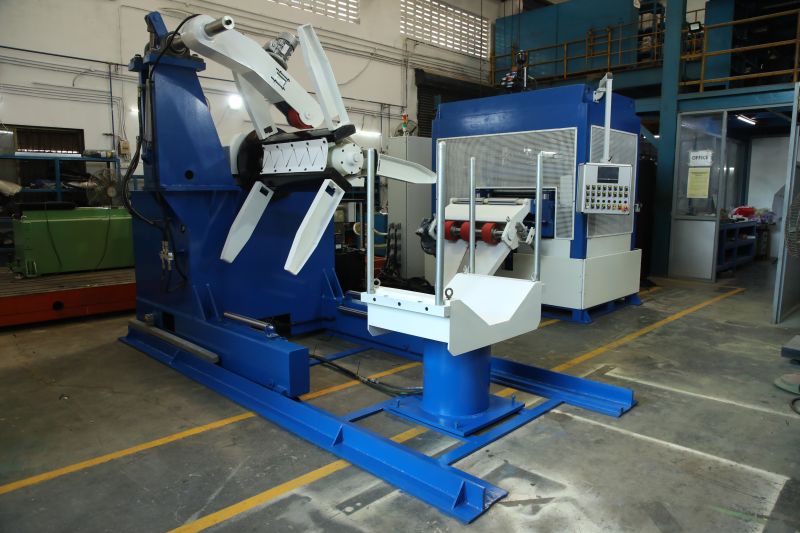

Heavy duty coil feeding lines for Press Feed equipments
Specifications
Model | C-400 | C-600 | C-800 |
---|---|---|---|
Parameters | |||
Width (mm) | 400 mm | 600 mm | 800 mm |
Thickness (mm) | 0.7 - 3.0 mm | 0.8 - 6.0 mm | 0.8 - 6.0 mm |
Max Coil Weight | 5000 Kg | 5000 Kg | 5000 Kg |
Straitening Capacity / Width | 3.0 x 400 mm | 2.5 x 600 mm | 2.5 x 600 mm / 2.0 x 800 mm |
6.0 x 300 mm | 6.0 x 300 mm | ||
Coil OD | 1500 mm | 1500 mm | 1500 mm |
Coil ID | 508 | 508 | 508 |
Features | Coil Car, Hydraulic Expansion, Snubber, Piller, Pre-Pinch, Auto Side Guide, Pressure Roller, Hydraulic Power Pack. |
Coil Car, Hydraulic Expansion, Snubber, Piller, Pre-Pinch, Auto Side Guide, Pressure Roller, Hydraulic Power Pack. |
Coil Car, Hydraulic Expansion, Snubber, Piller, Pre-Pinch, Auto Side Guide, Pressure Roller, Hydraulic Power Pack. |
Line Speed (Max) | 15 | 15 | 15 |
Technical specifications are indicative and subject to change to suit end application.
The Spray Lubrication System endure minimal lubricant consumption. With the aid of diligent professionals and smart packaging system, we can easily render bulk and customized packaging requirements of the patrons. Also, we ensure that the packed lot has shock sustainability to circumvent loss during transit. Made using superior grade materials, our products are quality assured and as per international industry standards.
Our Compact Coil Feeding Machine has rotating speed of 2800r/min. We are working with experienced staff and veteran professional; they make every effort to keep the products safe from external damaging factors, by using finest material for wrapping. With latest machines and technology, we ensure that the raw material used is as per the globally accepted standards and meet the international standards. We deliver the quality products that are manufactured using the best raw material.
The Pull Through Wire Straighteners are rated with 380V/440V voltage. We are able to serve patrons in Thane(India) as well as any other marketplace owing to our resources to deliver the purchasers' Thane(India) without hassle. We give our patrons the choice to make payments online or offline. Our company understands the concerns of its customers. Therefore, we make sure our payment options are safe.
STANDARD FEATURES
The Metal Slitting Machine can recoil weight upto 20 Ton. As a trusted name, we make use of only premium packaging material to pack the products in order to ensure their complete safety during transit. Moreover, our packaging experts strictly check the same. Over the years, we have become a primary choice of the buyers sine our product is qualitative and deliveries are time bound.
These Circle Cutting Machines have precision rate of ±0.01mm. We stringently follow automated warehousing system that helps us in meeting the safe storage requirements. Thus, we ensure zero damage to the products till the final dispatch. Placed in Thane(India), is capable of catering to local as well as domestic markets without any hassle.
The working life of Conveyor Spare Parts ranges from 30, 000-50, 000 hours. We frequently keep a check on the storage space to ensure that it is well-maintained by the experts. We have installed the latest machines and leading technologies to save products from spoiling. Our product range is secured properly with premium packaging materials that protect the products from mechanical damage and ensure the product delivery is safe and without damage.
The Openable Straighteners are design and develop using the highly advanced technology. Our products are manufactured keeping in mind international quality standards. Thus, they are reliable and worth their price. One can stay assured for high quality of the offered lot as we design and develop it using the best in line raw material and modern work methods. In addition to this, we make sure that the material is sourced from the trusted places only.
Our Transformer Lamination & Punching Machine has power rating of 3.3KW. For the production of our finished products, we source the raw materials only from the certified and trusted vendors after checking against numerous quality parameters. In order to pace with the technology, we have developed a payment procedure that allows us to make safe and secure transactions. Also, our system is verified by authority.
Specification
Width | 0-400 mm |
---|---|
Thickness Range | 0.1-0.8 mm |
Line Speed | 30-40 MPM |
Coil Weight | Upto 2.5 Tonne |
Normal Speed Model
Model | Width (mm) | Pitch (mm) | Thickness(mm) | SPM |
---|---|---|---|---|
JSM - 100 | 100 | 80 | 1.6 | 300 |
JSM - 150 | 150 | 100 | 1.6 | 250 |
JSM - 200 | 200 | 100 | 1 | 200 |
JSM - 300 | 300 | 200 | 1 | 100 |
Additional Information:
Packaging Details : Extra Cost
Delivery Time : 4 Months
Additional Information:
Packaging Details : Suitable
Delivery Time : Ready Stock
High Speed Model
Model | Width (mm) | Pitch (mm) | Thickness(mm) | SPM |
---|---|---|---|---|
JSM - HS - 100 | 100 | 80 | 1.2 | 500 |
JSM - HS - 150 | 150 | 100 | 1 | 350 |
Technical specifications are indicative and subject to change to suit end application.
