1 Products availableWe offer the best product range of 40 mm Back Geared Radial Drilling Machine, 40 mm Capacity Back Geared with Autofeed Radial Arm Drill Machine, Heavy Duty Geared Radial Drilling Machine, 40 mm capacity All Geared Fine Feed Radial Drilling Machine and 25 mm Back Geared Radial Drilling Machine.
40 mm Back Geared Radial Drilling Machine
Key Features
905 mm Center Distance
2.5 Module Autofeed Gears in R40BA
Taper Cone Mechanism of Autofeed
Taper Wedge
170 mm Column Diameter
Longer Gun Metal Nut for Lifting of Arm
All other R40 Series Features
Standard Accessories
Motor Pulley
Electrical Panel Board in R40
Extra Accessories
Electrical Motors V Belts
Coolant Pump with coolant tank
Drill Chuck & Arbour Box Table
Tapping Control Panel Board
Keyless Drill Chuck & Arbour
Extra Long column
Tapping Attachment (Mechanical)
With an objective to fulfill the demands of our clients, we are engaged in providing a wide array ofBelt Drive Radial Arm Drill Machine.
Features:
Exclusive Features of R40 Series:
Standard Accessories:
Extra Accessories:
We are offeringHeavy Duty Geared Radial Drilling Machineto our clients.
We are offeringFine Feed Radial Drilling Machineto our client
Standard Accessories:
Extra Accessories:
Oil Bath Gear Box:
The all-new design of gearbox in a gear box model: R40AA, R40G, and P40AA are having 9 speed with all 9 gear made up of hardened NiCr steel up to HRC 50-55. Gearbox and hardened gear give a very long life to the machine. Rotation and easy sliding of gears in bearing give very high reliability. Gears are internally six splined and shafts are extremely splined. All the gear in gear box are machined on imported WMW Germany make gear shaper. All the splines in the gear box are machined on imported PFAUTER Germany make spline milling machine.
Autofeed Gear Box:
Autofeed gear box used in Machine R40AA, R40BA & P40AA is having gear made up of NiCr steel having 2.5 module. All gears are also hardened. Two worm gears are made up of heavy duty 2.82 module teeth. All the shaft in the gear box is supported through a good quality bearing and not the bushes. Engaging of Autofeed through Taper Cone Mechanism as in the lathe machines enables maximum loading capacity leaving behind another machine.
Features:
Standard Accessories:
Extra Accessories:
We are offeringGeared Radial Drilling Machineto our clients.
Features:
Standard Accessories:
Extra Accessories:
We are offeringAuto feed Column Drilling Machineto our clients.
Oil Bath Gear Box:The all-new design of gearbox in a given model: R40AA, R40G, and P40AA are having 9 speed with all 9 gear made up of hardened NiCr steel up to HRC 50-55. Oil bath gearbox and hardened gear give very long life to the machine. Rotation and easy sliding of gears in very high reliability. Gears are internally six splined and shafts are extremely splined. All the gear in gear box are machined on imported WMW Germany make gear shaper. All the splines in the gear box are machined on imported PFAUTER Germany make spline milling machine.
Autofeed Gear Box:Autofeed gear box used in Machine R40AA, R40BA & P40AA is having gear made up of NiCr steel having 2.5 module. All gears are also hardened. Two worm gears are made up of heavy duty 2.82 module teeth. All the shaft in the gear box are supported through the good quality bearing and not the bushes. Engaging of Autofeed through taper cone mechanism as in the lathe machines enables maximum loading capacity leaving behind other machine.
Additional Information:
Packaging Details : Wooden & Standard Packing
Delivery Time : Ready Stock
We are offeringFine FeedPillar Drill Machineto our clients.
Standard Accessories:
Extra Accessories:
Oil bath Gear Box:
The all-new design of gearbox in model PMW- R40AA, R40G and P40AA is having 9 speed with all 9 gear made up of hardened NiCr steel up to HRC 50- 55. Oil bath gearbox and hardened gears give very long life to the machine. Rotation and easy sliding of gears in bearings give very high reliability. Gear is internally six splined and shaft are externally splined All the gears in the gearbox are machined on imported WMW Germany make gear shaper. All the splines in the gearbox are machined on imported faster Germany make spline milling machine.
Autofeed Gear Box:
Autofeed gearbox used in Machine R40AA, R40BA & P40AA is having gears made up of NiCr Steel with heavy 2.5 module. All gears are also hardened. Two worm gears are made up of heavy duty 2.82 module teeth. All the shafts in the Gear Box are supported through good quality bearings and not the Bushes. Engaging of Autofeed through Taper Cone Mechanism as in the lathe machines enables maximum loading capacity leaving behind other machines.

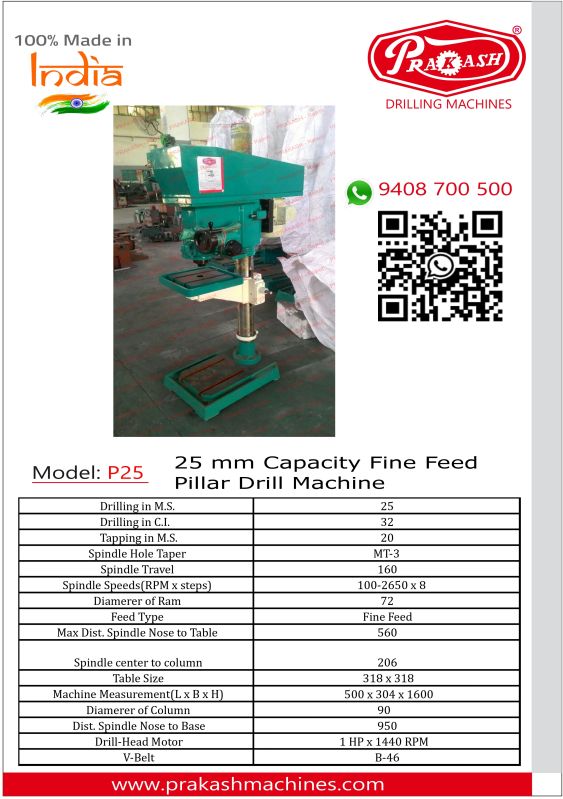

We are offeringAutomatic Fine Feed Pillar Drill Machineto our clients.
Standard Accessories:
Extra Accessories:

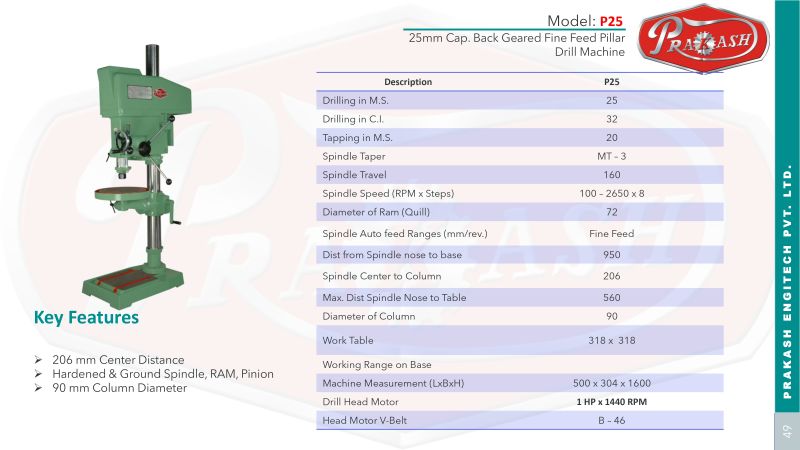

We are successfully meeting the requirements of our clients by offering the best quality range ofGeared Pillar Drill Machine.
Standard Accessories:
Extra Accessories:
oil bath gear box
the all new design of gear box in model pmw r40aa, r40g and p40aa is having 9 speed with all 9 gears made up of hardened nicr steel up to hrc 50 55. Oil bath gear box and hardened gears give very long life to the machine. Rotation and easy sliding of gears in bearings gives very high reliability. Gear are internally six splined and shaft are externally splined
all the gears in gearbox are machined on imported wmw germany make gear shaper.
all the splines in the gear box are machined on imported pfauter germany make spline milling machine.
autofeed gear box
autofeed gear box used in machine r40aa, r40ba & p40aa is having gears made up of nicr steel with heavy 2.5 module. All gears are also hardened. Two worm gears are made up of heavy duty 2.82 module teeth. All the shafts in the gear box are supported through good quality bearings and not the bushes. Engaging of autofeed through
taper cone mechanism
as in the lathe machines enables maximum loading capacity leaving behind other machines
features:
extra accessories:
standard accessories:
We are offeringAuto Feed Radial Drilling Machineto our clients.
Features:
Exclusive Features of R40 Series:
Standard Accessories:
Extra Accessories:
We are offeringDouble Column Radial Drilling Machineto our clients.
Standard Accessories:
Extra Accessories:
Column Assembly:Double column type structure with dia 225 mm and inside RIBS for more rigidity and smooth movement.
Arm Assembly:Arm and column are rigidly built with reinforcement ribs to reduce distortion, to give high capacity and long lasting accuracy.
Gears:All gears in the gearbox are made up of NiCr steel with the hardness of 50-55 HRC with the thickness of 15mm.
Shaft Gear:All shaft made up of NiCr alloy with hardness 55 HRC. All four splines and six splines of shafts are ground on Spline Grinding Machine.
Lifting Nut:4" Long lifting nut made up of bronze metal Spindle RAM(Quill) and Pinion is made up of NiCr steel with the final hardness of 55 HRC.
Autofeed system:6 auto feed having near geometric Progression for all processes to be done like tinging, reaming. boring etc. Overload Safety clutch system for tool protection and machine protection spindle auto-stop with travel adjustment.
RAM(Quill) Cylinder Liner:Head stock is provided with high grade cast iron cylinder liner like in automobile engines for easy sliding movement of RAM(Quill) and very long hh Also it ensures interchangeability when replacing after wear out.
Base:
Being a leading firm in this industry, we are offering a high quality range ofFine Feed Bench Drilling Machine.
Standard Accessories:
Extra Accessories:
