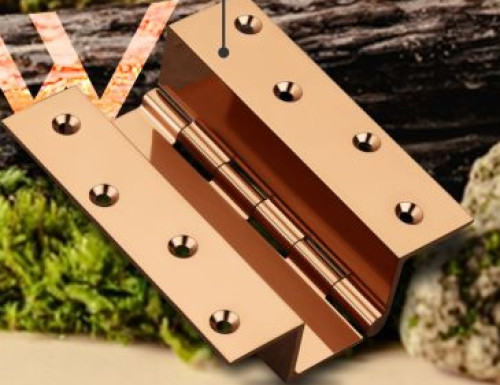

1 Products availableLeading Manufacturer, Supplier & Retailer of Brass Parliament Hinges, Brass Railway Hinges, Brass W Hinges and Brass Door Hinges.

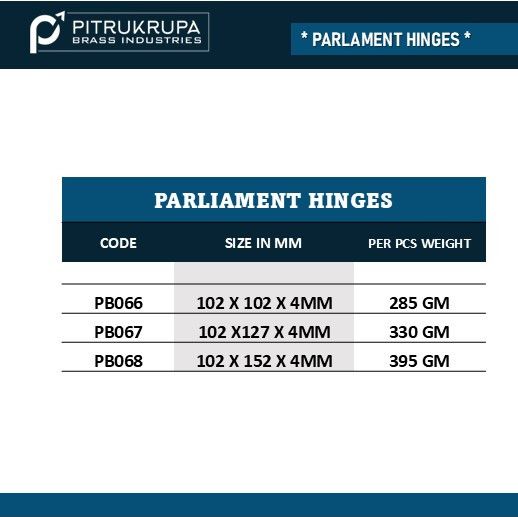

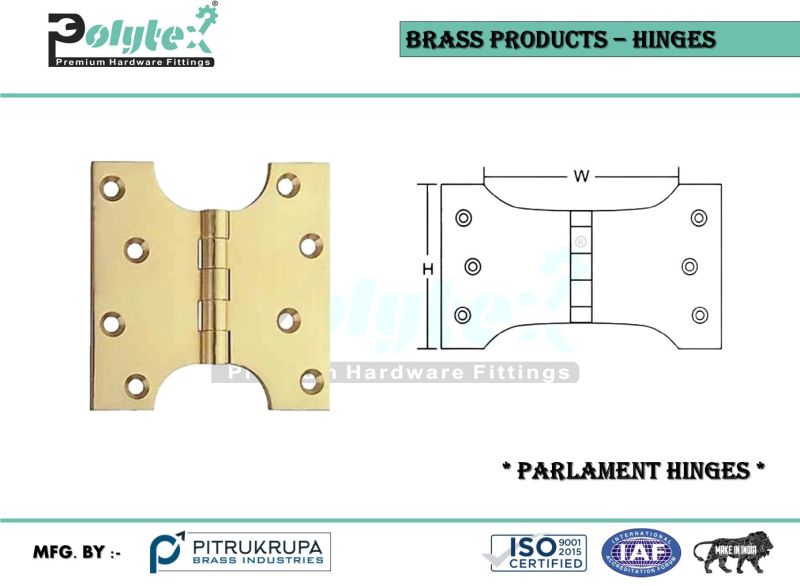

We manufacture best quality Brass Parlament Hinges which are highly suitable for various type of furniture fittings with smooth movement facility.
Size: 3″, 4″, 5″,
Finish: SS, Antique, Satin Lacquer, Matt black , Rose Gold
CODE: B-0066 TO B-0075 CATEGORY: BRASS HINGES
Additional Information:
Payment Terms : L/C
Specifications
CODE | SIZE IN MM | SIZE IN INCH |
PBI286 | 75 X 50 | 3 X 2 |
PBI287 | 75 X 75 | 3 X 3 |
PBI288 | 100 X 50 | 4 X 2 |
PBI289 | 100 X 75 | 4 X 3 |
PBI290 | 100 X 100 | 4 X 4 |
PBI291 | 100 X 125 | 4 X 5 |
PBI292 | 100 X 150 | 4 X 6 |
PBI293 | 100 X 200 | 4 X 8 |
PBI294 | 125 X 100 | 5 X 4 |
PBI295 | 125 X 125 | 5 X 5 |
PBI296 | 125 X 150 | 5 X 6 |
PBI297 | 125 X 200 | 5 X 8 |
PBI298 | 125 X 250 | 5 X 10 |
AVAILABLE IN ALL TYPES FINISHES:-
Specifications
CODE | SIZE IN MM | SIZE IN INCH |
---|---|---|
THICKNESS = | 3MM | 1/8 |
PBI001 | 75 X 22 | 3 X 7/8 |
PBI002 | 100 X 22 | 4 X 7/8 |
PBI003 | 125 X 22 | 5 X 7/8 |
PBI004 | 75 X 25 | 3 X 1 |
PBI005 | 100 X 25 | 4 X 1 |
PBI006 | 125 X 25 | 5 X 1 |
PBI007 | 150 X 25 | 6 X 1 |
PBI008 | 75 X 28 | 3 X 1.1/8 |
PBI009 | 100 X 28 | 4 X 1.1/8 |
PBI010 | 125 X 28 | 5 X 1.1/8 |
PBI011 | 150 X 28 | 6 X 1.1/8 |
PBI011 | 100 X 31 | 4 X 1.1/4 |
PBI012 | 125 X 31 | 5 X 1.1/4 |
PBI013 | 150 X 31 | 6 X 1.1/4 |
THICKNESS = | 3.5MM | 5/32 |
PBI014 | 100 X25 | 4 X 1 |
PBI015 | 125 X 25 | 5 X 1 |
PBI016 | 100 X 28 | 4 X1.1/8 |
PBI017 | 125 X 28 | 5 X 1.1/8 |
PBI018 | 150 X 28 | 6 X 1.1/8 |
PBI019 | 100 X 31 | 4 X 1.1/4 |
PBI020 | 125 X 31 | 5 X 1.1/4 |
PBI021 | 150 X 31 | 6 X 1.1/4 |
PBI022 | 100 X 38 | 4 X 1.1/2 |
PBI023 | 125 X 38 | 5 X1.1/2 |
PBI024 | 150 X 38 | 6 X1.1/2 |
THICKNESS = | 4MM | 3/16 |
PBI025 | 100 X 28 | 4 X1.1/8 |
PBI026 | 125 X 28 | 5 X 1.1/8 |
PBI027 | 150 X 28 | 6 X 1.1/8 |
PBI028 | 100 X 31 | 4 X 1.1/4 |
PBI029 | 125 X 31 | 5 X 1.1/4 |
PBI030 | 150 X 31 | 6 X 1.1/4 |
PBI031 | 200 X 31 | 8 X 1.1/4 |
PBI032 | 250 X 31 | 10 X 1.1/4 |
PBI033 | 300 X 31 | 12 X 1.1/4 |
PBI034 | 450 X 31 | 18 X 1.1/4 |
PBI035 | 600 X 31 | 24 X 1.1/4 |
PBI036 | 800 X 31 | 32 X 1.1/4 |
PBI037 | 100 X 38 | 4 X 1.1/2 |
PBI038 | 125 X 38 | 5 X 1.1/2 |
PBI039 | 150 X 38 | 6 X 1.1/2 |
PBI040 | 200 X 38 | 8 X 1.1/2 |
PBI041 | 250 X 38 | 10 X 1.1/2 |
PBI042 | 300 X 38 | 12 X 1.1/2 |
PBI043 | 450 X 38 | 18 X 1.1/2 |
PBI044 | 600 X 38 | 24 X 1.1/2 |
PBI045 | 800 X 38 | 32 X 1.1/2 |
THICKNESS = | 5MM | 5MM |
PBI046 | 100 X 31 | 4 X 1.1/4 |
PBI047 | 125 X 31 | 5 X 1.1/4 |
PBI048 | 150 X 31 | 6 X 1.1/4 |
PBI049 | 200 X 31 | 8 X 1.1/4 |
PBI050 | 250 X 31 | 10 X 1.1/4 |
PBI051 | 300 X 31 | 12 X 1.1/4 |
PBI052 | 450 X 31 | 18 X 1.1/4 |
PBI053 | 600 X 31 | 24 X 1.1/4 |
PBI054 | 800 X 31 | 32 X 1.1/4 |
PBI055 | 100 X 38 | 4 X 1.1/2 |
PBI056 | 125 X 38 | 5 X 1.1/2 |
PBI057 | 150 X 38 | 6 X 1.1/2 |
PBI058 | 200 X 38 | 8 X 1.1/2 |
PBI059 | 250 X 38 | 10 X 1.1/2 |
PBI060 | 300 X 38 | 12 X 1.1/2 |
PBI061 | 450 X 38 | 18 X 1.1/2 |
PBI062 | 600 X 38 | 24 X 1.1/2 |
PBI063 | 800 X 38 | 32 X 1.1/2 |
THICKNESS = | 6MM | 6MM |
PBI064 | 100 X 31 | 4 X 1.1/4 |
PBI065 | 125 X 31 | 5 X 1.1/4 |
PBI066 | 150 X 31 | 6 X 1.1/4 |
PBI067 | 200 X 31 | 8 X 1.1/4 |
PBI068 | 250 X 31 | 10 X 1.1/4 |
PBI069 | 300 X 31 | 12 X 1.1/4 |
PBI070 | 450 X 31 | 18 X 1.1/4 |
PBI071 | 600 X 31 | 24 X 1.1/4 |
PBI072 | 800 X 31 | 32 X 1.1/4 |
PBI073 | 100 X 38 | 4 X 1.1/2 |
PBI074 | 125 X 38 | 5 X 1.1/2 |
PBI075 | 150 X 38 | 6 X 1.1/2 |
PBI076 | 200 X 38 | 8 X 1.1/2 |
PBI077 | 250 X 38 | 10 X 1.1/2 |
PBI078 | 300 X 38 | 12 X 1.1/2 |
PBI079 | 450 X 38 | 18 X 1.1/2 |
PBI080 | 600 X 38 | 24 X 1.1/2 |
PBI081 | 800 X 38 | 32 X 1.1/2 |
AVAILABLE IN ALL TYPES FINISHES:-
Specifications
CODE | SIZE IN MM | SIZE IN INCH |
THICKNESS = | 2MM / 2.5MM | 2MM / 2.5MM |
PBI193 | 75 X 12 X38 | 3 X 1/2 X 1.1/2 X 6 |
PBI194 | 100 X 12 X 38 | 4 X 1/2 X 1.1/2 X 6 |
PBI195 | 75 X 16 X 38 | 3 X 5/8 X 1.1/2 X 6 |
PBI196 | 100 X 16 X 38 | 4 X 5/8 X 1.1/2 X 6 |
PBI197 | 75 X 19 X 45 | 3 X 3/4 X 1.3/4 X 6 |
PBI198 | 100 X 19 X 45 | 4 X 3/4 X 1.3/4 X 6 |
PBI199 | 75 X 25 X 50 | 3 X 1 X 2 X 6 |
PBI200 | 100 X 25 X 50 | 4 X 1 X 2 X 6 |
PBI201 | 75 X 12 X 38 | 3 X 1/2 X 1.1/2 X 12 |
PBI202 | 100 X 12 X 38 | 4 X 1/2 X 1.1/2 X 12 |
PBI203 | 75 X 16 X 38 | 3 X 5/8 X 1.1/2 X 12 |
PBI204 | 100 X 16 X 38 | 4 X 5/8 X 1.1/2 X 12 |
PBI205 | 75 X 19 X 45 | 3 X 3/4 X 1.3/4 X 12 |
PBI206 | 100 X 19 X 45 | 4 X 3/4 X 1.3/4 X 12 |
PBI207 | 75 X 25 X 50 | 3 X 1 X 2 X 12 |
PBI208 | 100 X 25 X 50 | 4 X 1 X 2 X 12 |
PBI209 | 75 X 12 X 38 | 3 X 1/2 X 1.1/2 X 19 |
PBI210 | 100 X 12 X 38 | 4 X 1/2 X 1.1/2 X 19 |
PBI211 | 75 X 16 X 38 | 3 X 5/8 X 1.1/2 X 19 |
PBI212 | 100 X 16 X 38 | 4 X 5/8 X 1.1/2 X 19 |
PBI213 | 75 X 19 X 45 | 3 X 3/4 X 1.3/4 X 19 |
PBI214 | 100 X 19 X 45 | 4 X 3/4 X 1.3/4 X 19 |
PBI215 | 75 X 25 X 50 | 3 X 1 X 2 X 19 |
PBI216 | 100 X 25 X 50 | 4 X 1 X 2 X 19 |
PBI217 | 75 X 12 X 38 | 3 X 1/2 X 1.1/2 X 25 |
PBI218 | 100 X 12 X 38 | 4 X 1/2 X 1.1/2 X 25 |
PBI219 | 75 X 16 X 38 | 3 X 5/8 X 1.1/2 X 25 |
PBI220 | 100 X 16 X 38 | 4 X 5/8 X 1.1/2 X 25 |
PBI221 | 75 X 19 X 45 | 3 X 3/4 X 1.3/4 X 25 |
PBI222 | 100 X 19 X 45 | 4 X 3/4 X 1.3/4 X 25 |
PBI223 | 75 X 25 X 50 | 3 X 1 X 2 X 25 |
PBI224 | 100 X 25 X 50 | 4 X 1 X 2 X 25 |

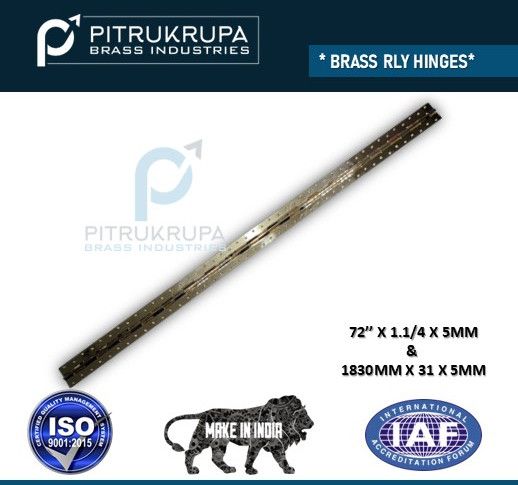

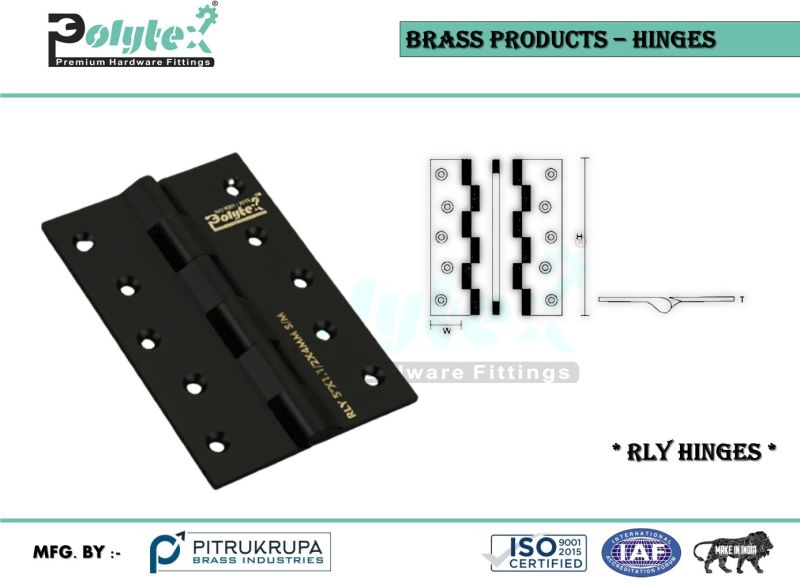

we manufacture best quality brass railway hinges which are highly suitable for various type of furniture fittings with smooth movement facility.
size: 3″, 4″, 5″, 6″, 8″, 10″, 12″, 14'', 18'', 24'', 30'', 36'', 42''
finish: ss, antique, satin lacquer, matt black , rose gold
code: b-0001 to b-0023 category: brass hinges
Additional Information:
Payment Terms : L/C
Packaging Details : 1 BOX = 6PCS
