Internal Ply Bond Tester

The Internal Ply Bond Tester is an advanced instrument designed to measure the internal fiber bond strength (also known as Z-direction tensile strength) of paperboard. This tester evaluates the strength of the board in relation to glue bonding, particularly at carton side seams, and can assess potential delamination caused by scoring or the use of high-tack coatings. It is especially useful for evaluating coated materials.

This equipment is commonly used to determine the internal bond strength of paper,  paperboard, and laminates. The readings are conveniently displayed on a digital display panel, with microprocessor models available to connect to a computer and printer for storing and reviewing past results.

Salient Features

• Heavy-Duty Construction:Built with a heavy cast iron base and an integrated leveling device for stability during testing.

• Microprocessor-Based:Features a microprocessor-based reading system for precise and efficient readings.

• Versatile Display:Provides direct readings in ft-lb,  joules, and kg/cm on the digital panel.

• Statistical Functions:Includes statistical functions such as last test and average values for improved data analysis.

• Manual Clamping System:Equipped with a manual clamping system for easy specimen handling.

• Robust Steel Frame:A sturdy steel frame design to minimize energy loss during testing.

• Maximum Arc Registration:A mechanism to register the maximum arc of the pendulum swing when released, ensuring accurate measurement of bond strength.

Technical Specifications

• Measurement Scale:0 to 500 ft-lb for a broad range of internal bond strengths.

• Specimen Preparation:Includes 3 sets of washers to adjust the adherence pressure of the sample.

• Support Accessories:Comes with tape-support,  double-coated adhesive tape, and a manual cutting tool for preparing samples.

• Multiple Specimen Preparation:A multiple specimen preparation station allows for variations in specimen thickness, providing flexibility in testing different materials.

Description

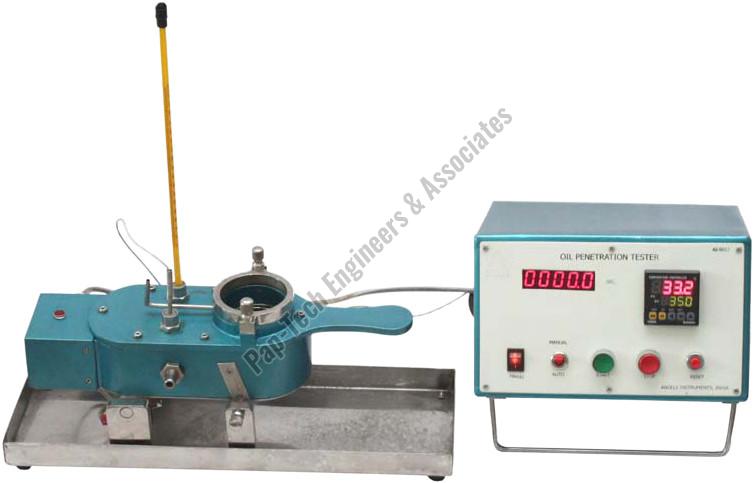

This instrument is designed for determining the penetration time of oil and other liquids through paper and other similar materials by the Surface Resistance Time (SORT) taken for 75% of the surface covered by oil through Photo Electric Digital Timer. Cooling system is provided along with constant temperature regulator.

Used for Writing / Printing and Absorbent Kraft Paper.

Technical Specification:

• The instrument chamber has an orifice for holding the liquid medium and a clamping device for holding the material.
• Penetration time after oil comes in contact with paper is noted by stop watch or electronic timer.
• Suitable range thermometer also provided.

Standards:

As per TAPPI, SCAN & ISO.

Description:

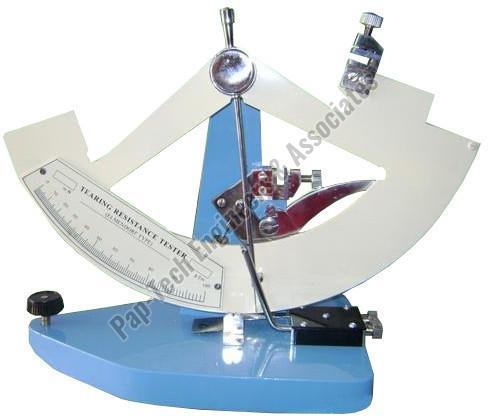

Elmendorf Type Tear Resistance Tester: It is used for measuring the resistance against tearing of paper, board, plastic films and other similar materials. An initial cut is made in a set of test piece, which are then torn through a given distance.The work done in the test piece is measured as the loss in potential energy of a pendulum which i free to swing on it horizontal axis.A calibrated scale indicates the mean tearing force.

As Per TAPPIT:

TAPPIT-414, SCAN P-11, BS 4468, DN 53128. ASTM D 689

Description:

A laboratory corrugating machine with digital temp. Controller for producing a sample to evaluate flat crush resistance of corrugating medium. 'A' fluting rolls are heated up to 176° C and maintained with a constant digital temperature controller. Standard model available with 'A' flute.

   Sample size 0.5 inch x 6 inch

Description

The tester enables Patra Type Fluff Tester to be measurd easily after simulating the action of printing press using a dry blanket. It is based on the concept of PIRA. The tster is capable of giving reproducible results and the fluff build - up proceeds at a steady rate with a number of sheets.

Standard:

As per TAPPI, SCAN, ISO.

Description:

The Motorised Drop Tester is designed to ascertain in the laboratory the resistance to rough handling of various types of packaging and is used in both Q.C. (quality control) and R&D (research & development) test routines.Several types of packaging can be tested e.g. card board boxes, pails, bags and containers. Catering for the following types of drops e.g. flat corner & side.The Precision Drop Tester has an open construction arrangement which does not restrict the test sample geometry in height and width. The Drop Tester lifts the pads to the test height saving the operator from injury. accelerating faster than 1G and ensuring precise drop orientations.Its rugged and simple design enables long working periods with minimal maintenance requirements and maximal performance by providing to the user accurate test results with high repeatability.Salient Features :A precise and reliable machine.Sturdy in construction.Precisely machined to International Standards.Fitted with angular drop arrangement for checking transport-worthiness form all angles.Costs less then half of the similar imported tester saves valuable foreign exchange too. Facility for corner droops. BOX SIZE 450X450

Description:

Drop Tester is designed to ascertain in the laboratory the resistance to rough handling of various types of packaging and is used in both Q.C. (quality control) and R&D (research & development) test routines. Several types of packaging can be tested e.g. card board boxes, pails, bags and containers. Catering for the following types of drops e.g. flat corner & side. The Precision Drop Tester has an open construction arrangement which does not restrict the test sample geometry in height and width. The Drop Tester lifts the pads to the test height saving the operator from injury. accelerating faster than 1G and ensuring precise drop orientations. Its rugged and simple design enables long working periods with minimal maintenance requirements and maximal performance by providing to the user accurate test results with high repeatability.

Salient Features :

• A precise and reliable machine.
• Sturdy in construction.
• Precisely machined to International Standards.
• Fitted with angular drop arrangement for checking transport-worthiness form all angles.
• Costs less then half of the similar imported tester saves valuable foreign exchange too.
• Facility for corner droops.

Description

Stainless Steel Freeness Tester for Paper Mills Only Measures the Canadian freeness number which is a measure of the drainage capacity of different pulp types. The drainage rate has been shown to be related to surface conditions and swelling of the fibres. It is also useful index of the amount of mechanical treatment given to the pulp. Instrument is supplied with standard screen plate and plexiglas measuring cylinder for csf valve.

It is used for measuring the Canadian Freeness number, which is a measure of the drainage capacity of different pulp types. It is a useful index of the amount of mechanical treatment given to the pulp. Instrument is supplied with standard screen plate and Plexiglas measuring cylinder for CSF value. As per ISO 5267/2, BS 6035/2, TAPPI T-227, SCAN C21 M4.

Salient Features:

• Canadian freeness tester has its container sealing lids spring loaded and wivel through 90. the lids are opened by means of light pressure on the release handles. The container grip enables easy removal for cleaning.
• It's nozzle and screen plate are calibrated according to relevant standards. Two measuring cylinders are included.
• Standard equipment has a bench top stand. alternatively wall mounted model can be supplied on request.
• Instrument is supplied with standard screen plate and Plexiglass measuring cylinder for CSF value.
