Industrial Seals

Leading Manufacturer, Supplier & Retailer of PS25 Pusher Seals, PS40P Pusher Seals, PS240 Pusher Seals, PS700N Pusher Seals and PS160-SPL Pusher Seals.

PS25 Pusher Seals

PS25 Pusher Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Specialities External Configuration Balanced Independent Of Direction Of Rotation Independent Of Pressure Direction
  • Type Industrial Seals
  • Country of Origin India
  • Advantages Robust and easy to install design, Springs protected from the product, No metal parts on the produc
  • Operating Range Shaft diameter: d1 = 15 . 300 mm (0.59

Materials

  • Seal face: Silicon Carbide (Q2), CrMo cast steel (S)
  • Seat: Carbon graphite resin impregnated (B), Silicon carbide (Q2)
  • Secondary seals: EPDM (E), NBR (P), FKM (V), FFKM (K), coated (M)
  • Springs: CrNiMo steel (G)
  • Metal parts: CrNiMo steel (G)

Recommended Applications

  • Process industry
  • Oil and gas industry
  • Refining technology
  • Petrochemical industry
  • Chemical industry
  • Pharmaceutical industry
  • Power plant technology
  • Water and waste water technology
  • Mining industry
  • Building services industry
  • Food and beverage industry
  • Shipbuilding
  • Sugar industry
  • Metal production and processing
View Complete Details
Ask Latest Price & Details
PS40P Pusher Seals

PS40P Pusher Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Shape Round
  • Specialities Stationary Springs, Balanced, Independent Of Direction Of Rotation, Independent Of Pressure Direction
  • Type Industrial Seals
  • Country of Origin India
  • Advantages Balanced seal in the installation space of a unbalanced seal, Springs protected from the product, Su
  • Operating Range Shaft diameter: d1 = 18.300 mm, Pressure: p1 = 25 bar (363 PSI), Temperature: t = -40.220oC ( -4

Recommended Applications

  • Process industry
  • Oil and gas industry
  • Refining technology
  • Petrochemical industry
  • Chemical industry
  • Pharmaceutical industry
  • Power plant technology
  • Pulp and paper industry
  • Water and waste water technology
  • Mining industry
  • Building services industry
  • Food and beverage industry
  • Shipbuilding
  • Sugar industry
  • Metal production and processing

Materials

  • Seal face: Silicon Carbide (Q1, Q2)
  • Seat: Carbon graphite resin impregnated (B), Silicon carbide (Q1, Q2)
  • Secondary seals: EPDM (E), FKM (V), FFKM (K)
  • Springs: CrNiMo steel (G)
  • Metal parts: CrNiMo steel (G)

View Complete Details
Ask Latest Price & Details
PS240 Pusher Seals

PS240 Pusher Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Shape Round
  • Type Industrial Seals
  • Country of Origin India

Recommended Applications

  • Water and waste water technology
  • Drinking water
  • Chemical industry
  • Oil and Gas
  • Petrochemical industry
  • Refining technology
  • Standards And Approvals
  • EN 12756
  • Pulp and paper industry
  • Power plant technology
  • Mining industry
  • Metal production and processing
  • Special applications (Cement, .)
  • Shipping Industry

Materials

  • Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (eSIC-Q7)
  • Seat G6: Silicon carbide (eSIC-Q7)
  • Secondary seals: E, EL, V, V16, K, KL, P
  • Springs: CrNiMo steel (G)
  • Face housing: CrNiMo steel (G)
  • Driver: Duplex (G1)
View Complete Details
Ask Latest Price & Details
PS700N Pusher Seals

PS700N Pusher Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Shape Round
  • Type Industrial Seals
  • Country of Origin India
  • Specialities Single seal, Balanced, Independent of direction of rotation, Stationary multiple springs
  • Advantages Unitized construction allows easy conversion, Springs located on the atmospheric side, no clogging,
  • Operating Range Pressure: p = . 35 bar ( . 508 PSI), Temperature: t = 160 oC (320 oF), Sliding velocity: vg = 30

Materials

  • Seal face: High density carbon graphite (B)
  • Seat: Silicon carbide (Q1)
  • Secondary seals: FKM (V)
  • Metal parts: 1.4401 (G)

Recommended Applications

  • Chemical industry
  • Refining technology
  • Petrochemical industry
  • Lubrication oil
  • Light oil
  • Gasoline
  • Naphtha
  • Water
  • Process pumps
View Complete Details
Ask Latest Price & Details
PS160-SPL Pusher Seals

PS160-SPL Pusher Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Finishing Polished
  • Shape Round
  • Type Industrial Seals
  • Country of Origin India
  • Specialities Single Seal, Balanced, Independent of direction of rotation, Stationary multiple springs
  • Standards and approvals ISO 3096
  • Advantages Excellent torque transmission due to clutch drive between seal head and drive collar.
  • Operating range Pressure: p = 12 bar (174 PSI), Temperature: t = -20 oC . +160 oC (-4 oF . 320 oF), Sliding velo

Recommended applications

  • Process industry
  • Oil and Gas Industry
  • High viscous media (tar, heavy oils)
  • Process pumps

Materials

  • Seal face and seat: Silicon carbide (Q1), Tungsten carbide (U7)
  • Secondary seals: FKM (V)
  • Metal parts: CrNiMo steel (G)
View Complete Details
Ask Latest Price & Details
PS290 Pusher Seals

PS290 Pusher Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Finishing Polished
  • Shape Round
  • Type Industrial Seals
  • Country of Origin India
  • Specialities For stepped shafts, Single seal, Balanced, Super-Sinus-spring or multiple springs rotating, Independent of direction of rotation, Integrated pumping device available (H7F, H75F), Variant with seat cooling available (H75G115)
  • Advantages Universal application opportunities (standardization), Efficient stock keeping due to easily interch
  • Operating range Seal face: Silicon carbide (Q1, Q2), Carbon graphite antimony impregnated (A), Aluminium oxide (V),

Materials

  • Seal face: Silicon carbide (Q1, Q2), Carbon graphite antimony impregnated (A), Aluminium oxide (V), CrMo cast steel (S)
  • Seat G9: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (Q1*, Q2*)
  • Secondary seals: EPDM (E), NBR (P), FKM (V), FFKM (K)
  • Springs: CrNiMo steel (G)
  • Metal parts: CrNiMo steel (G), Duplex (G1)
  • * Cannot be combined with seal face made of S

Recommended Applications

  • Process industry
  • Oil and Gas Industry
  • Refining technology
  • Petrochemical industry
  • Chemical industry
  • Power plant technology
  • Pulp and paper industry
  • Food and beverage industry
  • Hot water applications
  • Light hydrocarbons
  • Boiler feed pumps
  • Process pumps
View Complete Details
Ask Latest Price & Details
PS10B Pusher Seals

PS10B Pusher Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Finishing Polished
  • Shape Round
  • Type Industrial Seals
  • Country of Origin India
  • Specialities Single seal, Balanced, Independent of direction of rotation, Stationary multiple springs
  • Advantages Insensitive to solids in the medium, Very short axial installation length (analog lip seals) combine
  • Operating range Shaft diameter: d1 = 15 . 100 mm (0.6" . 3.9"), Pressure: p1 = 25 bar(363) PSI, Temperature: t =

Recommended Applications

  • Process industry
  • Chemical industry
  • Water and waste water technology
  • Lube oils
  • Roller seal
  • Bearing seal
  • All seal chambers with a very short axial installation length

Materials

  • Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B)
View Complete Details
Ask Latest Price & Details
Ps163 Pusher Seals

Ps163 Pusher Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Finishing Polished
  • Shape Round
  • Type Industrial Seals
  • Country of Origin India
  • Specialities Single seal, Unbalanced, Independent of direction of rotation, Positive torque transmission due to bayonet drive between seal head and drive collar, O-Ring groove for ventilation prevents solids build-up and enhances flexibility
  • Operating range Pressure: p = 12 bar (174 PSI), Temperature: t = -20 oC . 160 oC (-4 oF . +320 oF), Sliding velo

Recommended Applications

  • Pulp and paper industry
  • Water and waste water technology
  • High-viscosity liquids
  • Pulp suspensions
  • Process pumps
  • Pulp pumps

Materials

  • Seal face: Silicon carbide (Q1)
  • Seat: Silicon carbide (Q1)
  • Secondary seals: EPDM (E), FKM (V)
  • Metal parts: CrNiMo steel (G)
View Complete Details
Ask Latest Price & Details
PSRN Pusher Seals

PSRN Pusher Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Finishing Polished
  • Shape Round
  • Type Industrial Seals
  • Country of Origin India
  • Specialities Single seal, Balanced, Independent of direction of rotation, Stationary springs, Dual seals in tande
  • Advantages Safe operation (no fractures) because of seal face locking by square pin, Spring unit averted from the product so no sticking and clogging of the springs, Suitable for pressure reversals, Operation in vacuum without additional seat locking possible,
  • Operating range Shaft diameter: d = 18 . 100 mm (0.71" . 3.94"), Pressure: p1*) = 25 bar (363 PSI), Temperature:

Recommended Applications

  • Water and waste water technology
  • Refining technology
  • Dirty, abrasive and solid containing media
  • Fugitive hydrocarbons (no API seal!)
  • Sticky and stringy media
  • Chemical standard pumps
  • Sewage pumps

Materials

  • Seal face: Carbon graphite resin impregnated (B), Silicon carbide (Q1)
  • Seat: Silicon carbide (Q1)
  • Secondary seals: FKM (V), NBR (P), FFKM (K), PTFE (T)
  • Springs: Hastelloy C-4 (M)
  • Metal parts: CrNiMo steel (G)
View Complete Details
Ask Latest Price & Details
PSB500 Pusher Seals

PSB500 Pusher Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Finishing Polished
  • Shape Round
  • Type Industrial Seals
  • Country of Origin India
  • Specialities Single seal, Balanced, Independent of direction of rotation, Rotating multiple springs
  • Advantages API 682 (Type A) compliant, Fits to EN and ANSI seal chambers, Optimized, narrow width seal face des
  • Operating Range Pressure: p = vacuum . 35 bar (508 PSI), Temperature: t = -20 oC . +200 oC (-4 oF . +392 oF),

Recommended Applications

  • Chemical industry
  • Process industry
  • Acids
  • Alkaline solutions
  • Salt solutions
  • Low viscosity oils
  • Monomers
  • Hydrocarbons
  • Water
  • Seawater
  • Process pumps

Materials

  • Seal face: Carbon graphite resin impregnated (B), High density carbon graphite
  • Seat: Silicon carbide (Q1)
  • Secondary seals: FKM (V)
  • Metal parts: CrNiMo steel (G)
View Complete Details
Ask Latest Price & Details

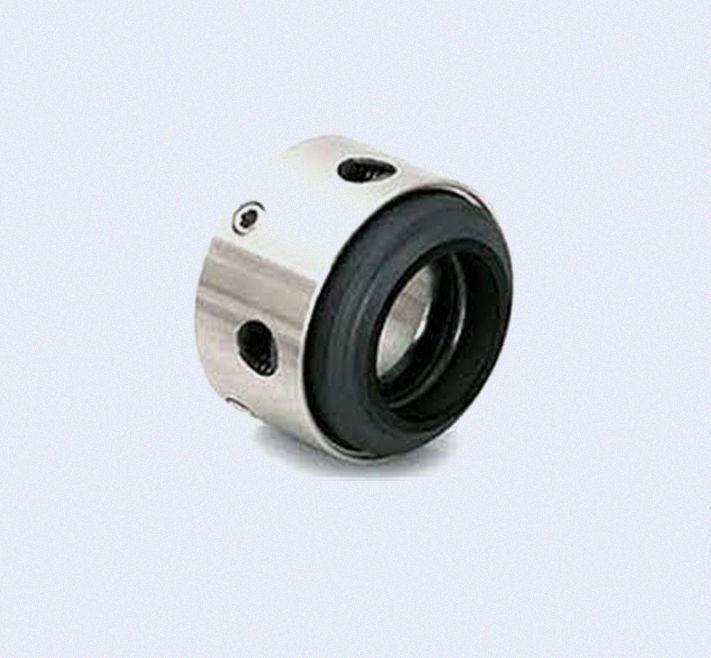

PS288 Pusher Seals

PS288 Pusher Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Finishing Polished
  • Type Industrial Seals
  • Country of Origin India
  • Operating Limits Shaft Dia. : 10 to 100mm Pressure : up to 10 Bars Temp. : -50 to 180OC Speed : up to 25 m/s
  • Applications Generally used for handling corrosive chemicals, hydrocarbons, general & light chemicals

Type PS - 288 Multi Spring Reversed Balanced Seal is externally mounted internally balanced multi-coil spring seal. The unique feature of this type of seal is that, it eliminates the shaft step or sleeves for balancing.

These seals are externally mounted & hence the metal parts including the springs do not come in contact with the circulating media & therefore can be use for corrosive or abrasive media. sealing. The compact design eliminates the requirement of extra radial & axial space for its installation.
Material
  • Seal Faces :- Sic/carbon Vs Ceramic/Sic./TC
  • Secondary Seals :- Viton/PTFE/GFT
  • Metal Components :- SS-316
View Complete Details
Ask Latest Price & Details
PS210 Elastomer Bellows Seals

PS210 Elastomer Bellows Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Finishing Polished
  • Shape Round
  • Type Industrial Seals
  • Country of Origin India
  • Specialities For plain shafts, Single and dual seal, Elastomer bellows rotating, Balanced, Independent of directi
  • Advantages Shaft protection over entire seal length, Protection of seal face during installation due to special bellows design, Insensitive to shaft deflections due to large axial movement ability, Universal application opportunities, Important material certif
  • Operating Range Shaft diameter: d1 = 10 . 100 mm (0.39" . 3.94"), Pressure: p1 = 16 bar (230 PSI), vacuum . 0.

Materials

  • Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (Q1, eSiC-Q7)
  • Seat: Silicon carbide (Q1, eSic-Q7), Tungsten carbide (U3)
  • Elastomer: NBR (P), EPDM (E), FKM (V), HNBR (X4)
  • Metal parts: CrNiMo steel (G), Hastelloy (M)
  • Further materials upon request.

Recommended Applications

  • Fresh water supply
  • Building services engineering
  • Waste water technology
  • Food technology
  • Sugar production
  • Pulp and paper industry
  • Oil industry
  • Petrochemical industry
  • Chemical industry
  • Water, waste water, slurries
  • (solids up to 5 % by weight)
  • Pulp (up to 4 % otro)
  • Latex
  • Dairies, beverages
  • Sulfide slurries
  • Chemicals
  • Oils
  • Chemical standard pumps
  • Helical screw pumps
  • Stock pumps
  • Circulating pumps
  • Submersible pumps
  • Water and waste water pumps
  • Oil applications
View Complete Details
Ask Latest Price & Details
PS212 Elastomer Bellows Seals

PS212 Elastomer Bellows Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Finishing Polished
  • Shape Round
  • Type Industrial Seals
  • Country of Origin India
  • Specialities For plain shafts, Single and dual seal, Elastomer bellows rotating, Balanced, Independent of direct
  • Advantages 100 % compatible with MG12, Small outer diameter of bellows support (dbmin) enables direct retaining ring support, or smaller spacer rings, Optimal alignment characteristic through self-cleaning of disk/shaft, Improved centering across entire pressur
  • Operating Range Shaft diameter: d1 = 10 . 100 mm (0.55" . 3.94"), Pressure: p1 = 18 bar (261 PSI), vacuum up to

Materials

  • Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (eSiC-Q7, Q1)
  • Seat: Silicon carbide (eSic-Q7, Q1)
  • Elastomer: NBR (P), EPDM (E), FKM (V), HNBR (X4)
  • Metal parts: CrNiMo steel (G), Hastelloy (M)

Recommended applications

  • Fresh water supply
  • Building services engineering
  • Waste water technology
  • Food technology
  • Sugar production
  • Pulp and paper industry
  • Oil industry
  • Petrochemical industry
  • Chemical industry
  • Water, waste water, slurries
  • (solids up to 5 % by weight)
  • Pulp (up to 4 % otro)
  • Latex
  • Dairies, beverages
  • Sulfide slurries
  • Chemicals
  • Oils
  • Chemical standard pumps
  • Helical screw pumps
  • Stock pumps
  • Circulating pumps
  • Submersible pumps
  • Water and waste water pumps
View Complete Details
Ask Latest Price & Details
PS213 Elastomer Bellows Seals

PS213 Elastomer Bellows Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Finishing Polished
  • Shape Round
  • Type Industrial Seals
  • Country of Origin India
  • Specialities For plain shafts, Single and dual seal, Elastomer bellows rotating, Balanced, Independent of directi
  • Advantages 100 % compatible with MG13, Small outer diameter of bellows support (dbmin) enables direct retaining ring support, or smaller spacer rings, Optimal alignment characteristic through self-cleaning of disk/shaft, Improved centering across entire pressu
  • Operating Range Shaft diameter: d1 = 16 . 60 mm (0.63" . 2, 36"), Pressure: p1 = 18 bar (261 PSI), vacuum . 0.

Materials

  • Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (eSiC-Q7, Q1)
  • Seat: Silicon carbide (eSic-Q7, Q1)
  • Elastomer: NBR (P), EPDM (E), FKM (V), HNBR (X4)
  • Metal parts: CrNiMo steel (G), Hastelloy (M)

Recommended Applications

  • Fresh water supply
  • Building services engineering
  • Waste water technology
  • Food technology
  • Sugar production
  • Pulp and paper industry
  • Oil industry
  • Petrochemical industry
  • Chemical industry
  • Water, waste water, slurries (up to 5 % by weight)
  • Pulp (up to 4 % otro)
  • Latex
  • Dairies, beverages
  • Sulfide slurries
  • Chemicals
  • Oils
  • Chemical standard pumps
  • Helical screw pumps
  • Stock pumps
  • Circulating pumps
  • Submersible pumps
  • Water and waste water pumps
View Complete Details
Ask Latest Price & Details

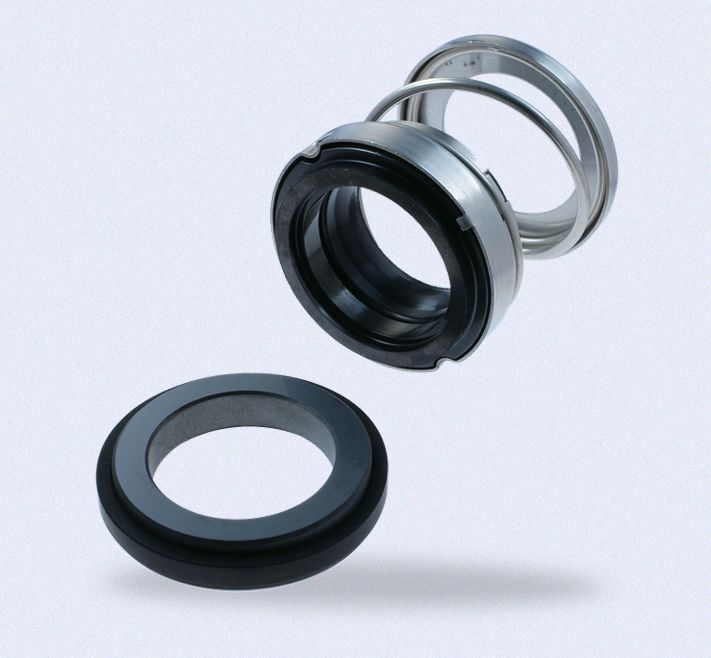

PS143 Elastomer Bellows Seals

PS143 Elastomer Bellows Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Finishing Polished
  • Shape Round
  • Type Industrial Seals
  • Country of Origin India
  • Specialities Single seal, Loosely inserted seal face provides self-adjusting capability, In-house manufactured sl
  • Advantages The EA560 is self-adjusting to shaft misalignments and deflections because of the loosely inserted seal face as well as the ability of the bellows to stretch and tighten. The length of the contact area of the bellows with the shaft is an optimum comp
  • Operating Range Shaft diameter: d1 = 8 . 50 mm (0.375" . 2"), p1 = 7 bar (102 PSI), vacuum . 0.1 bar (1.45 PS

Recommended Applications

  • Water and waste water technology
  • Chemical industry
  • Process industry
  • Water and waste water
  • Glycols
  • Oils
  • Industrial pumps/equipment
  • Submersible pumps
  • Engine pumps
  • Circulating pumps

Materials

  • Seal face: Carbon graphite resin impregnated (B), Silicon carbide (Q1, Q2)
  • Seat: Aluminium oxide (V), Silicon carbide (Q1, Q2)
  • Elastomer: NBR (P), FKM (V)
  • Metal parts: CrNi steel (F)

View Complete Details
Ask Latest Price & Details
E Cartex Dual Seals

E Cartex Dual Seals
  • Min. Order (MOQ) 10 piece
  • Material Cold Rolled Steel
  • Country of Origin India
  • Feature Dual seal, Cartridge, Balanced, Independent of direction of rotation, Double pressure balanced Inte
  • Application Industrial Use
  • Operating range Shaft diameter: d1 = 25 . 100 mm" (1.000" . 4.000")Other sizes on request, Temperature: t= -40 oC . 220 oC (-40 oF . 428 oF), (Check O-Ring resistance), Sliding face material combination BQ1, Pressure: p1 = 25 bar (363 PSI), Sliding velocity:
  • Advantages Up to 80 % less energy consumption and minimized heat generation of seal due to friction-reducing D

Recommended Applications

  • Petrochemical industry
  • Chemical industry
  • Pharmaceutical industry
  • Power plant technology
  • Pulp and paper industry
  • Mining industry
  • Food and beverage industry
  • Sugar industry
  • Universally applicable
  • Centrifugal pumps
  • Eccentric screw pumps

Materials

  • Seal face: Silicon carbide (Q1), Carbon graphite resin impregnated (B), Tungsten carbide (U2)
  • Seat: Silicon carbide (Q1)
  • Secondary seals: FKM (V), EPDM (E), FFKM (K), Perflourocarbon rubber/PTFE (U1)
  • Springs: Hastelloy C-4 (M)
  • Metal parts: CrNiMo steel (G)
View Complete Details
Ask Latest Price & Details
Ecartex Ansi Dual Seals

Ecartex Ansi Dual Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Finishing Polished
  • Shape Round
  • Type Industrial Seals
  • Country of Origin India
  • Specialities Dual seal, Available for standard (eCartex-ASDN) and big bore (eCartex-ABDN) seal chambers, Cartridge, Balanced, Independent of direction of rotation, Double pressure balanced, Integrated pumping device
  • Advantages Up to 80 % less energy consumption and minimized heat generation of seal due to friction-reducing Di
  • Operating Range Advantages Shaft diameter: d1 = 25 . 100 mm (1.000" . 4.000") Other sizes on request, Temperatur

Materials

  •  Seal face product side: Silicon carbide DiamondFace® (Q15)
  •  Seat product side: Silicon carbide DiamondFace® (Q15)
  •  Seal face atmospheric side: Carbon graphite resin impregnated (B)
  •  Seat atmospheric side: Silicon carbide (Q1)
  •  Secondary seals: FKM (V), EPDM (E), FFKM (K), Perfluorcarbon rubber/PTFE (U1)
  •  Springs: Hastelloy® C-4 (M)
  •  Metal parts: CrNiMo steel (G), CrNiMo cast steel (G)



Recommended Applications

  •  Process industry
  •  Petrochemical industry
  •  Chemical industry
  •  Pharmaceutical industry
  •  Power plant technology
  •  Pulp and paper industry
  •  Water and waste water technology
  •  Mining industry
  •  Food and beverage industry
  •  Universally applicable
  •  ANSI process pumps
View Complete Details
Ask Latest Price & Details
Splitex Split Seals

Splitex Split Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Shape Round
  • Type Industrial Seals
  • Country of Origin India
  • Specialities Fully split single seal, 2 x 2 segments, pre-assembled, Semi-cartridge, Balanced, Stationary springs, Bi-directional, External pressurization, Built-in flushing connections, Installation and wear control
  • Operating Range Shaft diameter: d1 = 50 . 150 mm (1.940" . 6.000") Pressure: p1 = 10 bar (145 PSI), Temperature
  • Advantages Reduced repair and downtime: 2 x 2 pre-assembled design speeds up and simplifies installation instal

Recommended Applications

  • Process industry
  • Petrochemical Industry
  • Chemical Industry
  • Power Plant Industry
  • Pulp and Paper Industry
  • Centrifugal pumps
  • Agitators
  • Displacement pumps
  • Conveying pulp with stock pumps
  • Conveying timber to refiners with pumping screws
  • Circulation of pulp-and-water mixtures in storage vessels
  • Pump stations for waste water treatment
  • Cooling water pumps for energy generation

Materials

  • Seal face: Carbon graphite antimoniny impregnated (A), Silicon carbide (Q6)
  • Seat: Silicon carbide (Q6)
  • Secondary seals: FKM (V), EPDM (E), NBR (P)
  • Springs: CrNiMo steel (G)
  • Metal parts: CrNiMo steel (G)
View Complete Details
Ask Latest Price & Details

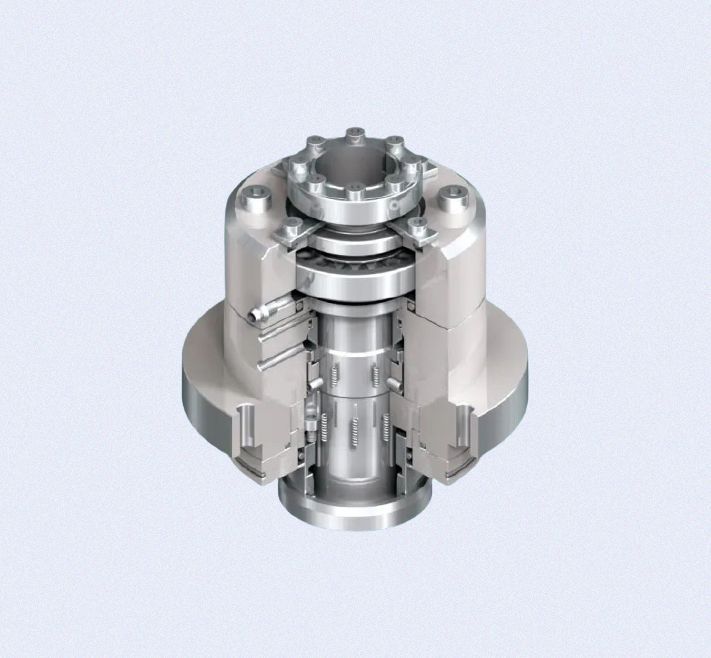

HS-D Agitator Seals

HS-D Agitator Seals
  • Min. Order (MOQ) 10 Piece
  • Material Cold Rolled Steel
  • Finishing Polished
  • Shape Round
  • Country of Origin India
  • Specialities For top entry drives, Double seal, Unbalanced, Independent of direction of rotation, Multiple springs rotating, Liquid-lubricated, Cartridge unit
  • Advantages Ready-to-fit and factory-tested unit, With or without bearing available, Patented hydrodynamic groov
  • Operating Range Shaft diameter: d1 = 20 . 500 mm (0.79" . 19.69"), Pressure: p1 = vacuum . 30 bar (. 435 PSI

Recommended Applications

  • Refining technology
  • Petrochemical industry
  • Chemical industry
  • Pharmaceutical industry
  • Reactors
  • Agitators
  • Special rotating equipment

Materials

  • Seal faces: Carbon graphite or Silicon carbide, FDA conform
  • Seats: Silicon carbide, FDA conform
  • Secondary seals and metallic parts acc. to application and customers' requirement.
View Complete Details
Ask Latest Price & Details
PS75 Mechanical Seals

PS75 Mechanical Seals
  • Min. Order (MOQ) 10 piece
  • Material Cold Rolled Steel
  • Finishing Polished
  • Shape Round
  • Surface of Application Industrial
  • Feature API 682 Category 2 Und 3, Type A, Arrangement 2 Seal, Dual Seal In Face-to-back Arrangement, Cartridge Unit, Rotating Multiple Springs, Dry Non-contact Outer Seal (containment Seal)
  • Type Industrial Seals
  • Country of Origin India
  • Advantages Universally applicable both for retrofits or original equipment, Efficient stock keeping due to stan
  • Operating Range Shaft diameter: d1 = 20 . 110 mm (0.79

Materials

  •  Seal rings: Blister resistant carbon
  •  Mating rings: Silicon carbide SSiC (Q1), RBSiC (Q2)
  •  Secondary seals: EPDM (E), NBR (P), FKM (V), FFKM (K)
  •  Springs: Hastelloy® C-4 (M)* and C-276 (M5)
  •  Metal parts: CrNiMo steel 316 (G) or equivalent, optional materials on request.

Recommended Applications

  •  Refining technology
  •  Petrochemical industry
  •  Chemical industry
  •  Oil and gas industry
  •  Media with gaseous leakage
  •  API 610 / ISO 13709 pumps
  •  Process pumps



View Complete Details
Ask Latest Price & Details
PS9DS Mechanical Seals

PS9DS Mechanical Seals
  • Min. Order (MOQ) 10 piece
  • Material Cold Rolled Steel
  • Finishing Polished
  • Shape Round
  • Surface of Application Industrial
  • Type Industrial Seals
  • Country of Origin India
  • Feature API 682 Category 2 and 3, Type A, Arrangement 3 seal, Dual seal in face-to-face arrangement, Same size of inboard and outboard seal, Balanced, Cartridge unit, Stationary multiple springs, Solid seal faces
  • Advantages Suitable for higher speeds, Good followability due to no influence from run-out, squareness or vibr
  • Operating Range Shaft diameter: d1 = 20 . 110 mm (0.79" . 4.33"), Pressure: p = 60 bar (870 PSI), Temperature:t

Materials

  •  Seal rings: Blister resistant carbon, Silicon carbide SSiC (Q1), RBSiC (Q2)
  •  Mating rings: Silicon carbide SSiC (Q1), RBSiC (Q2)
  •  Secondary seals: FKM (V), FFKM (K), EPDM (E), NBR (P)
  •  Springs: Hastelloy® C-276 (M5)
  •  Metal parts: CrNiMo steel 316 (G), Duplex (G1)



Recommended Applications

  •  Refining technology
  •  Oil and gas industry
  •  Petrochemical industry
  •  Chemical industry
  •  Power plant technology
  •  Light volatile hydrocarbons
  •  LPG plants
  •  API 610 / ISO 13709 pumps
  •  Process pumps



View Complete Details
Ask Latest Price & Details
Tell Us What are you looking for? Will call you back

Contact Us
