Pumps, Pumping Machines & Parts #348660

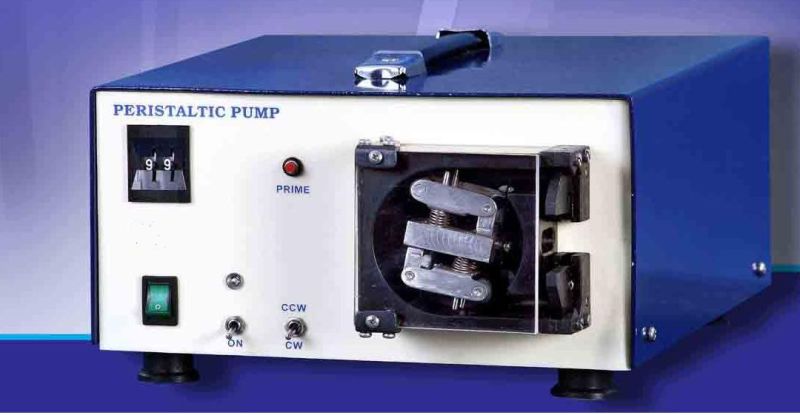

Our Low Volume Peristaltic Pump is extremely efficient and has a long functional life. The high quality Low Volume Peristaltic Pump is perfectly designed and manufactured, completely in accordance with the international quality standards. Features On / Off switch with built in indication for AC inputMicrocontroller based control circuitsPrecise PWM based DC stepper motor driveSpeed variation by means of a two digit thumb wheel switchSwitches for On / Off, Prime and direction reversal functions Technical Specifications Model RH-P 110 S - 01 No. of Channels1RPM0.01 to 0.99Flow rate0.002 ml to 1 ml/hr Tubing 1 mm to 3 mm ID with 1 to 1.5 mm wall thicknesss MOC of the pump head Outer armAnodised aluminium Arm cover Transparent acrylic Rotor S.S. 316 / S.S. 304RollersCarbon filled nylonMotor DC stepper motor (Cont. duty) Pressure Upto 2 kg / sq. cm.Accuracy 1%Supply 230 v, 50 Hz, Single phase AC Dimension110 x 225 x 280 mm (H x W x D) Weight 7.5 Kgs (App.)

Our Medium Volume Peristaltic Pump is extremely efficient and has a long functional life. The high quality Medium Volume Peristaltic Pump is perfectly designed and manufactured, completely in accordance with the international quality standards.FeaturesOn / Off switch with built in indicationPrecise PWM based DC stepper motor driveAuto/Manual modes of speed variation with 3 digit seven segmentLED display : Auto: Speed variation by means of external 420mA signalManual : Speed variations by means of a multi turn potentiometerDirection of rotation of the pump head can be varied by means of a toggle switch (CW/CCW)Technical SpecificationsModel RH - P 120 VSNo. of Channels1RPM4 to 60 (With direct digital display readout)Flow rate0.1 ml to 50 ml / minTubing 1 mm to 3 mm ID with 1 to 1.5 mm wall thicknessMOC of the pump head Outer armNoryleArm cover Transparent polycarbonateRotor Glass filled nylonRollersCarbon filled nylonEnclosurePowder coated aluminiumMotorPermanent magnet DC motor (Cont. duty)PressureUpto 1.5 kg / sq. cm.Supply230 v, 50 Hz, Single phase ACDimension110 x 170 x 175 mm (H x W x D)Weight4 Kgs (App.)

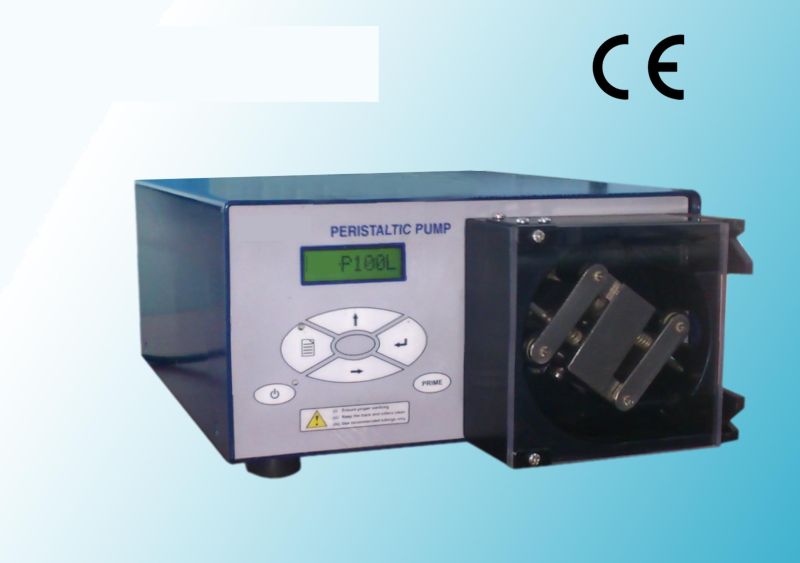

Our Programmable Peristaltic Pump is extremely efficient and has a long functional life. The high quality Programmable Peristaltic Pump is perfectly designed and manufactured, completely in accordance with the international quality standards.FeaturesOn / Off switch with built in indication for AC inputMicrocontroller based control circuitsPrecise PWM based DC stepper motor drive8 character, single line, 5 x 7 dot matrix, menu driven LCD readout for flow rate and time selectionSwitches for On / Off, menu, digit select, increase, priming, direction reversal functions. The menu includes the speed, timers and reset functionsNon-volatile memory (EEPROM) without any battery backup (Memory retention of the stored parameters for more than five years)Provision for external control by means of a foot switch / relay contactsTechnical SpecificationsModel RH-P 100S 100No. of Channels1Flow rate1 ml to 199.9 ml / minTubing 1 mm to 5 mm ID with 1 to 1.5 mm wall thicknessMOC of the pump head Outer armAnodized aluminumArm cover Transparent acrylicRotor S.S. 316 / S.S. 304RollersCarbon filled nylonMotorDC stepper motor (Cont. duty)PressureUpto 2 kg / sq. cm.Accuracy 1%Supply230 v, 50 Hz, Single phase ACDimension110 x 225 x 280 mm (H x W x D)Weight7.5 Kgs (App.)

Persitaltic pumps are used in the field of Pharmaceuticals, Food Processing, Chemicals, Inks & Pigments, Cell culture, filteration and seperation, Pollution control, Beverage dispensing, Photo Processing and printing, Fermentaion, Heat treatment, etc.
