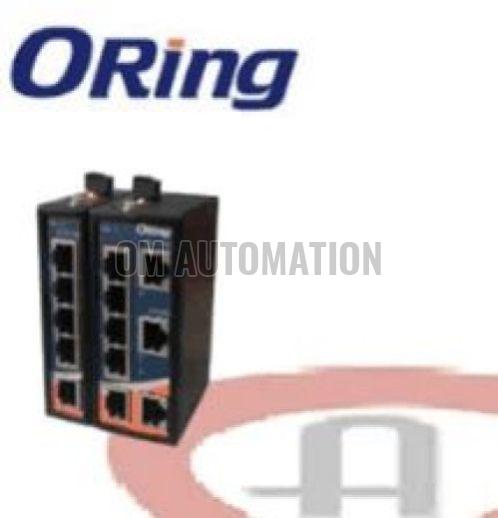

IES-162FX-L series are unmanaged Ethernet switches with 6 x 10/100Base-T(X) and 2 x 100Base-FX ports. With very compact size of housing, you can install IES-162FX-L series easily. In addition, IES-162FX-L series are with rigid IP-30 housing design and can operate under harsh environment. The extended operating temperature range from -20°C to 60°C is ready and can satisfy most requirement of operation.

IES-1160 is the unmanaged Ethernet switch with 16x10/100Base-T(X) port. IES-1160 support redundant power inputs, relay output alarm, and surge protection. The wide operating temperature range from -40°C to 70°C can satisfy most of operating environments. Especially, IES-1160 features dual different redundant DC power inputs, two DC power inputs are on terminal block to avoid any unexpected fails on power on. Thus, IES-1160 could guarantee a non-stop operation. Therefore, the switch is one of the most reliable choice for highly-unmanaged Ethernet application.

Ethernet

• ETH

  5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

• IEEE 802.3 series standards

  802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Performance Specifications

• Bandwidth (Non-blocking)

  10 Gbps

• Packer buffer

  128 KB

• MAC address table size

  2K entries

• Jumbo frame support

  9216 bytes

Power

• Connector

  2-pin industrial DC power socket

• Input voltage range

  9 – 30 VDC

• PoE (passive)

  Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

• Power consumption

  Idle: 0.3 W / Max: 2.3 W

Physical Interfaces

• Ethernet

  5 x RJ45 ports, 10/100/1000 Mbps

• Status LEDs

  1 x Power LED, 10 x ETH status LEDs

• Power

  1 x 2-pin industrial DC power socket

• Other

  1 x Grounding screw

Physical Specification

• Casing material

  Anodized aluminum housing and panels

• Dimensions (W x H x D)

  113.1 x 27.4 x 80.5 mm

• Weight

  174 g

• Mounting options

  Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  5% to 95% non-condensing

• Ingress Protection Rating

  IP30

Regulatory & Type Approvals

• Regulatory

  CE, UKCA, FCC, IC, CB, RCM, CITC, REACH, RoHS, WEEE

EMC Emissions & Immunity

• Standards

  EN 55032:2015 + A11:2020 + A1:2020

  EN 55035:2017 + A11:2020

• ESD

  EN 61000-4-2:2009

• Radiated Immunity

  EN IEC 61000-4-3:2020

• EFT

  EN 61000-4-4:2012

• Surge Immunity (AC Mains Power Port)

  EN 61000-4-5:2014 + A1:2017

• CS

  EN 61000-4-6:2014

Safety

• Standards

  CE: EN IEC 62368-1:2020 + A11:2020

  RCM: AS/NZS 62368.1:2022

  CB: IEC 62368-1:2018

Overview

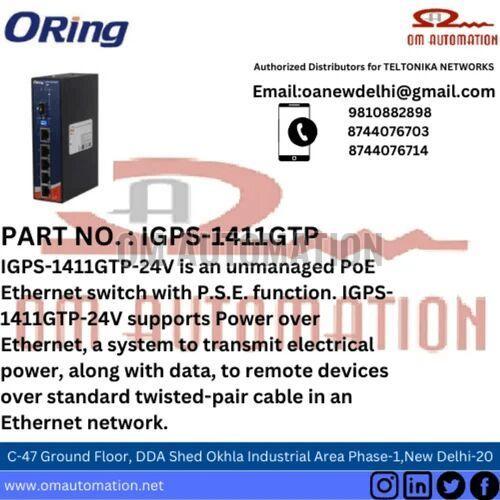

IGPS-1411GTP-24V is an unmanaged PoE Ethernet switch with P.S.E. function. IGPS-1411GTP-24V supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IGPS-1411GTP-24V has 4x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports, 1 additional Gigabit port, and 1x100/1000Base-X SFP port. The SFP port optical network speed can be set by changing the settings of the DIP-Switch below. IGPS-1411GTP-24V supports wide range 1257VDC power inputs and generates 50VDC P.S.E. power output per port. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. The wide operating temperature range from -40°C to 75°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for PoE Ethernet application.

 Features

• • IGPS-1411GTP-24V provide 4x10/100/1000Base-T(X) PoE (P.S.E.) ports

  • Support P.S.E. based on IEEE 802.3at standard up to 30 Watts per port

  • Supports Jumbo frame up to 10KBytes

  • SFP port support 100Base-FX and 1000Base-X speed

  • Support auto-negotiation and auto-MDI/MDI-X

  • Support store and forward transmission

  • Support dual wide range 1257VDC power inputs for power redundancy

  • Supports flow control

  • Rigid IP-30 housing design

  • DIN-Rail and wall mounting enabled

ETHERNET

• ETHERNET

  5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

• IEEE 802.3 series standards

  802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

PERFORMANCE SPECIFICATIONS

• Bandwidth (Non-blocking)

  10 Gbps

• Packer buffer

  128 KB

• MAC address table size

  2K entries

• Jumbo frame support

  9216 bytes

POWER

• Connector

  3-pin industrial DC power socket

• Input voltage range

  7 – 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax,

  surge protection: min 64.4V/max 71.2V breakdown voltage,

  93.6V maximum reverse voltage @4.3A maximum reverse surge current

• Power consumption

  Idle: 1 W / Max: 1.5 W

PHYSICAL INTERFACES

• Ethernet

  5 x RJ45 ports, 10/100 Mbps

• Status LEDs

  1 x Power LED, 10 x ETH status LEDs

• Power

  1 x 3-pin industrial DC power socket

• Grounding

  Grounding terminal on power connector

PHYSICAL SPECIFICATION

• Casing material

  Anodized aluminum housing and panels

• Dimensions (W x H x D)

  113 x 28 x 50 mm

• Weight

  142 g

• Mounting options

  Integrated DIN rail bracket

OPERATING ENVIRONMENT

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  5% to 95% non-condensing

• Ingress Protection Rating

  IP30

IES-1050 is unmanaged Ethernet switch with 5x10/100Base-T(X) ports. With very compact size of housing, you can install IES-1050 easily. In addition,  IES-1050 is with rigid IP-30 housing design and can operate under harsh environment. and can satisfy most requirement of operation.

IES-1142P is a din-rail unmanaged Ethernet switch with 14x10/100Base-T(X) and 2x100Base-FX in SFP ports. IES-1142P supports redundant power inputs. The wide operating temperature range from -40°C to 70°C can satisfy most of operating environments.

• Support 8 ports IEEE 802.3at compliant PoE and total power budget is 120W with maximum 30W per port of 24V mode Total power budget is 180Watts with maximum 30Watts per port of IGPS-1082GP model

  • •
      • Support up to 9.6K Bytes Jumbo Frame

      • Support up to 4Mbit Packet buffer

      • Support auto-negotiation and auto-MDI/MDI-X

      • Support store and forward transmission

      • Support flow control

      • Provided relay output for power failed warning system

      • Provide DIP-switch to setting SFP speed

      • Rigid IP-30 housing design

      • DIN-Rail and wall mounting enabled

  Industrial 10-port unmanaged Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. and

  Overview

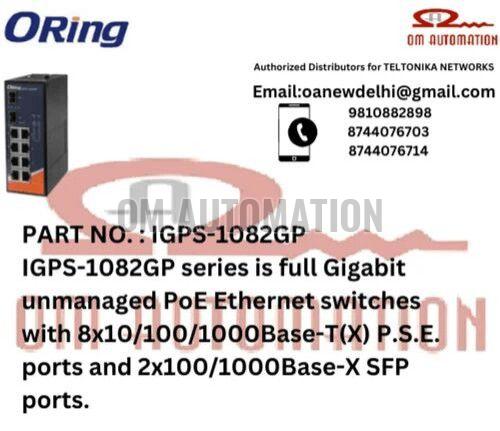

  IGPS-1082GP series is full Gigabit unmanaged PoE Ethernet switches with 8x10/100/1000Base-T(X) P.S.E. ports and 2x100/1000Base-X SFP ports. IGPS-1082GP series also support Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each IGPS-1082GP series switch has 8x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports.  P.S.E. is a device (switch or hub for instance) that will provide power in a PoE connection.  And support wide operating temperature from -40 oC to 75 oC.  Therefore, the switch is one of the most reliable choices for rolling stock and highly-unmanaged PoE Ethernet application.





  Features

   2x100/1000Base-X, SFP socket







Overview

IGS-1042GPA is an unmanaged Ethernet switch. IGS-1042GPA has 4x10/100/1000Base-T(X) and 2x100/1000Base-X SFP port. The SFP port optical network speed can be set by changing the settings of the DIP-Switch below. IGS-1042GPA supports wide range 1248VDC power inputs.  The wide operating temperature range from -40°C to 70°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for Ethernet application.

 Features

• • Provide 4x10/100/1000Base-T(X) and 2x100/1000Base-X SFP ports

  • Supports Jumbo frame up to 9KBytes

  • SFP port support 100Base-FX and 1000Base-X speed

  • Support auto-negotiation and auto-MDI/MDI-X

  • Support store and forward transmission

  • Supports flow control

  • Rigid IP-30 housing design

  • DIN-Rail and wall mounting enabled

Overview

IGPS-1080-24V is the unmanaged Gigabit PoE Ethernet switch with P.S.E. function and relay output of 24VDC at 1A. IGPS-1080-24V supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IGPS-1080-24V supports wide-range 1257VDC power inputs and generates 50VDC P.S.E. power output per port. IGPS-1080-24V PoE switch has 8 x 10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. The wide operating temperature range from -40°C to 75°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for PoE Ethernet application.

 Features

• • 8x10/100/1000Base-T(X) PoE (P.S.E.) ports

  • Supports IEEE 802.3at compliant PoE and total power budget is 120 Watts with maximum 30 Watts per port

  • Supports dual wide range 1257VDC power inputs for power redundancy

  • Supports Jumbo frame up to 9KBytes

  • Supports auto-negotiation and auto-MDI/MDI-X

  • Supports store and forward transmission

  • Supports flow control

  • Rigid IP-30 housing design

  • DIN-Rail and wall mounting enabled

IES-1162GC is the unmanaged Ethernet switch with 16x10/100Base-T(X) and 2xGigabit Combo port Ethernet Switch. IES-1162GC supports redundant power inputs, relay output alarm, and surge protection. The wide operating temperature, range from -40 to 70°C, can satisfy most of harsh operating environments.

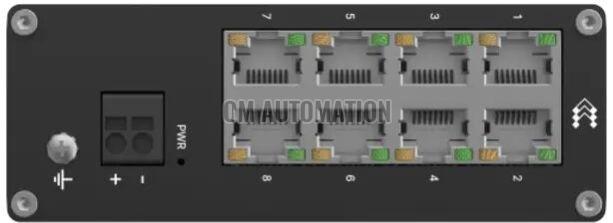

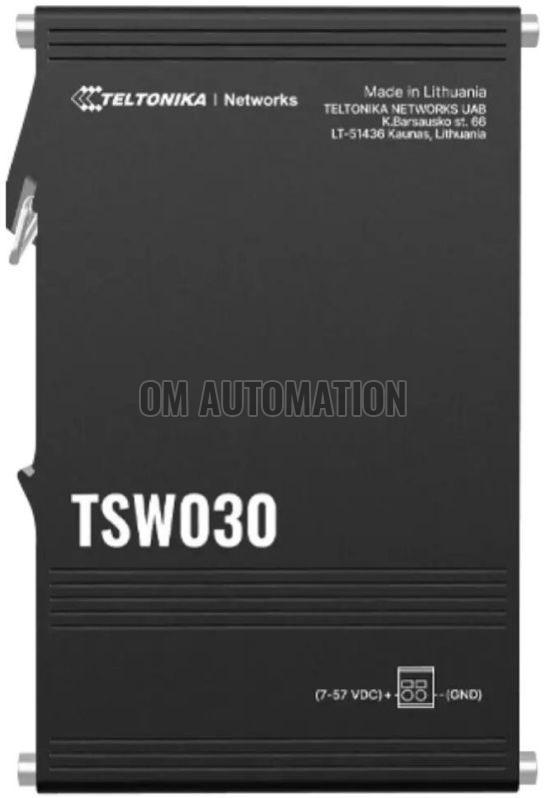

Ethernet

• Ethernet

  8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

• IEEE 802.3 series standards

  802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Performance Specifications

• Bandwidth (Non-blocking)

  20 Gbps

• Packer buffer

  128 KB

• MAC address table size

  2K entries

• Jumbo frame support

  9216 bytes

Power

• Connector

  2-pin industrial DC power socket

• Input voltage range

  7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND

• Power consumption

  Idle: 0.5 W / Max: 1.5 W

Physical Interfaces

• Ethernet

  8 x RJ45 ports, 10/100 Mbps

• Status LEDs

  1 x Power LED, 16 x ETH status LEDs

• Power

  1 x 2-pin industrial DC power socket

• Other

  1 x Grounding screw

Physical Specification

• Casing material

  Anodized aluminum housing and panels

• Dimensions (W x H x D)

  113.1 x 41.2 x 74.6 mm

• Weight

  256 g

• Mounting options

  Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  5% to 95% non-condensing

• Ingress Protection Rating

  IP30

Overview

IGS-C1050 series are unmanaged gigabit Ethernet switches with 5 x 10/100/1000Base-T(X) ports . In addition, the wide operating temperature range from -40°C to 75°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for Ethernet application.

 Features

• • Supports 5 x 10/100/1000Base-T(X) ports

  • Compact size for easy installation

  • QoS supported to process critical data in heavy traffic

  • IP40 protection class

  • -40 to 75°C wide operating temperature range

  • DIN-Rail mounting enabled

Overview

IGS-150B is a mini type unmanaged full gigabit Ethernet switch with 5 x 10/100/1000Base-T(X) ports.  IGS-150B supports redundant power input and rigid mini size IP-30 housing.  In addition, the wide operating temperature range from -40°C to 75°C can satisfy most of operating environment.

 Features

• • Support 5 ports 10/100/1000 Base-T(X)


  • Support auto-negotiation and auto-MDI/MID-X

  • Support Store and forward transmission

  • Support flow control

  • Compact size for easily installation

  • Rigid IP-30 housing design

  • DIN-rail and wall mounting enable

IES-1080/1062 series are unmanaged Ethernet switches with 6x10/100Base-T(X) and 2x100Base-FX, 10/100/1000Base-T(X), 1000Base-SX or 1000Base- LX ports. IES-1080/1062 series support redundant power input, relay output alarm, and surge protection. The wide operating temperature range from -40°C to 70°C can satisfy most of operating environments.

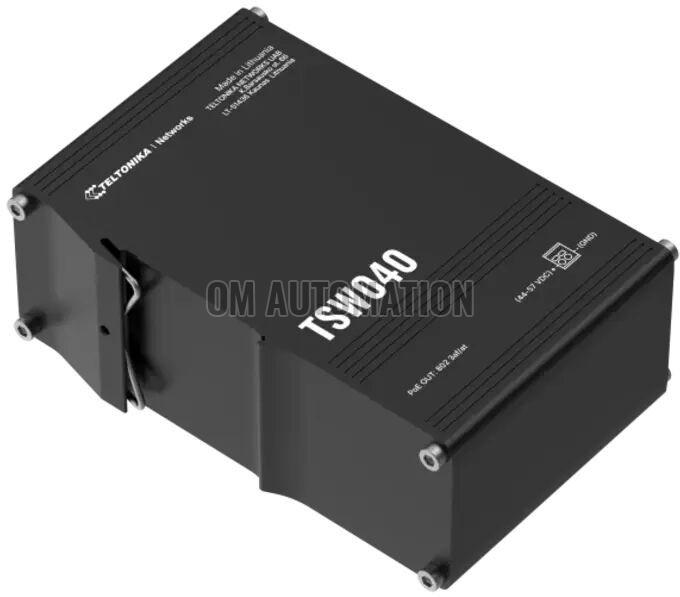

Ethernet

• Ethernet

  8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

• IEEE 802.3 series standards

  802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

POE OUT

• PoE ports

  Port 1 - 8

• PoE standards

  802.3af and 802.3at compliant PSE ports, over spare pairs - Mode B

• PoE Max Power per Port (at PSE)

  30 W

• Total PoE Power Budget (at PSE)

  240 W

Performance Specifications

• Bandwidth (Non-blocking)

  20 Gbps

• Packer buffer

  128 KB

• MAC address table size

  2K entries

• Jumbo frame support

  9216 bytes

Power

• Connector

  2-pin industrial DC power socket

• Input voltage range

  7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND

• PoE-out input voltage range

  44 – 57 VDC

• Power consumption

  Idle: 1 W / Max: 2 W / PoE Max: 246 W

Physical Interfaces

• Ethernet

  8 x RJ45 ports, 10/100 Mbps

• Status LEDs

  1 x Power LED, 16 x ETH status LEDs

• Power

  1 x 2-pin industrial DC power socket

• Other

  1 x Grounding screw

Physical Specification

• Casing material

  Anodized aluminum housing and panels

• Dimensions (W x H x D)

  113.1 x 41.2 x 74.6 mm

• Mounting options

  Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

• Weight

  280 g

Operating Environment

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  5% to 95% non-condensing

• Ingress Protection Rating

  IP30

IES-1240 is the unmanaged Ethernet switch with 24x10/100Base-T(X) port. IES-1240 support redundant power inputs, relay output alarm, and surge protection. The wide operating temperature range from -40°C to 70°C can satisfy most of operating environments. Especially, IES-1240 features dual different redundant DC power inputs, two DC power inputs are on terminal block to avoid any unexpected fails on power on. Thus, IES-1240 could guarantee a non-stop operation. Therefore, the switch is one of the most reliable choice for highly-unmanaged Ethernet application.

IES-C1080 series are unmanaged  Ethernet switches with 8 x10/100Base-TX RJ45 ports. In addition, the wide operating temperature range from -40°C to 75°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for Ethernet application

Overview

RGPS-R9244GP+ series is Layer 3 Gigabit managed redundant ring PoE Ethernet switch with 24x10/100/1000Base-T(X) IEEE802.3at P.S.E. ports and 4x1G/10GBase-X SFP+ ports.  The switch support Ethernet Redundancy protocol,  O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.  RGPS-R9244GP+ series also support Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network.  Each RGPS-R9244GP+ series switch has 24x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports.  P.S.E. is a device (switch or hub for instance) that will provide power in a PoE connection.  And RGPS-R9244GP+ series support wide operating temperature from -40 to 60.  Besides the Web-based interface, Telnet and console (CLI) configuration, RGPS-R9244GP+ series can also be managed centralized and convenient by Open-Vision. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber PoE Ethernet application

Features

• • Support Layer 3 static routing, RIP and VRRP function

  • Support O-Ring(recovery time < 30ms) andMSTP(RSTP/STP compatible) for Ethernet Redundancy

  • O-Chain allow multiple redundant network rings

  • Supportstandard IEC 62439-2 MRP*note  (Media Redundancy Protocol) function

  • 24 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port

  • Support PoE on/off scheduled configuration

  • Support PoE alive check and auto reboot fuction

  • Support IPv6 new internet protocol version

  • Support Modbus TCP protocol

  • Support IEEE 802.3az Energy-Efficient Ethernet technology

  • Provided HTTPS/SSH protocol to enhance network security

  • Support SMTP client and SNTP server protocol

  • Support application-based QoS management

  • Support Device Binding security function

  • Support DOS/DDOS auto prevention

  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic

  • Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management

  • Support ACL and 802.1x User Authentication for security

  • Support 10K Bytes Jumbo Frame

  • SFP socket support DDM function

  • Multiple notification for warning of unexpected event

  • Support DBU-01 backup unit device to quickly backup/restore configuration

  • Web-based , Telnet, Console (CLI), and Windows utility (Open-Vision) configuration

  • Support LLDP Protocol

  • 19 inches rack mountable design
