Our Products
Magnet
2 Products availableBrakes & Braking Systems
2 Products availableClutches, Clutch Parts & Accessories
2 Products availableLeading Manufacturer, Supplier & Retailer of Rotex type coil - 3 Pin, BOTCH REXROTH COIL, Rexroth coil group, Vibrator Coils and Rotex Type Coil.
Additional Information:
Payment Terms : T/T,
Packaging Details : standard box packing
Delivery Time : 10 DAYS
we are manufacturer and exporter of coils and solenoids. We have botch rexroth coil in 24vdc and 230 vac voltage coil id - 23 , od - 45 , ht -50.
Additional Information:
Payment Terms : T/T
Packaging Details : standard box packing
Delivery Time : 07 DAYS
We are manufactuer and exporter of coils and solenoids. We can supply different type of Rexroth coils.
Coils are available in different voltages like 24 vdc 230 vac etc.
WE ARE MANUFACTUER AND EXPORTER OF COILS AND SOLENOIDS. WE ARE MAKING VIBRATOR COILS FOR STRIP PACKING AND BLISTER PACKING MACHINES.
Additional Information:
Packaging Details : STANDARD BOX PACKING
Delivery Time : 8/10 DAYS
Additional Information:
Payment Terms : T/T,
Packaging Details : standard box packing
Delivery Time : 10 DAYS
We are manufacturer and exporter of coils and solenoids.
Additional Information:
Packaging Details : STANDARD BOX PACKING
Delivery Time : 5 DAYS
we deliver an extensive variety of fabricated coils that is manufactured using high quality raw material. Our expert team tests these on a several parameters to make the coils suitable for inter-turn short circuit.ac and dc contactorsboth work on the principle of electromagnetic. These are extensively appreciated for their high customers, we also provide customization facility. Our offered coil is varied in length, width, thickness and multiple surface finishes.
features:
* low cost
* effective performance
* make the coils suitable for inter-turn short circuit
Additional Information:
Payment Terms : T/T
Packaging Details : standard box packing
Delivery Time : 07 DAYS
VOLTAS TYPE CONTACTOR COILS (BOBBIN TYPE)
| COILS NAME | A | B | C | D | E | F | REST AT 220 VOLT |
| 100 AMP | 79 | 79 | -- | 25 | -- | 65 | 1150 |
| 200 AMP | 94 | 94 | -- | 38 | -- | 75 | 750 |
FORMERLESS CONTRACTOR COILS (IN PAIRS)
| COILS NAME | A | B | C | D | E | F | REST AT 220 VOLT |
| 300 AMP | 64 | -- | -- | 31 | -- | 95 | 550 |
| 600 AMP | 78 | -- | -- | 36 | -- | 110 | 410 |
| 800 AMP | 110 | -- | -- | 36 | -- | 145 | 154 |
AC CONTACTOR COIL
| COILS NAMES | A | B | C | D | E | F | REST AT 230 VOLT |
| AC CONTACTOR | 43 | 42 | 17 | 17 | -- | 25.5 | 1508 |
Additional Information:
Payment Terms : T/T,
Packaging Details : standard box packing.
Delivery Time : 10 DAYS
Additional Information:
Payment Terms : T/T, ,
Packaging Details : standard cartoon box packing
Delivery Time : 10 days
We are offering ms fabricated coil - 3 pin type. This is fabricated coils as per dimensions given by the buyer. we are also making coils as per given sample , old sample , or burnt sample.
Additional Information:
Payment Terms : T/T, ,
Packaging Details : STANDARD BOX PACKING
Delivery Time : 20 DAYS
We are manufacturer of round fabricated coils as per your sample and detailed dimensional drawing.we are making coils as per requirement.
Additional Information:
Payment Terms : T/T,
Packaging Details : standard packing
Delivery Time : 3 weeks
Additional Information:
Payment Terms : T/T,
Packaging Details : standard box packing
Delivery Time : 10 DAYS
Additional Information:
Payment Terms : T/T,
Packaging Details : standard box packing
Delivery Time : 10 DAYS
Additional Information:
Payment Terms : T/T,
Packaging Details : standard box packing
Delivery Time : ready ex stock
We are mfg and exporter of coils and solenoids. We are offering 2 pin solenoid coil - 230 vac with rectifier.we are herewith enclosing the photo of the same.
Additional Information:
Payment Terms :
Packaging Details : Standard wooden box packing
Delivery Time : 15 days
NITIN ENGINEERS has a specialization in the art of designing Pneumatic Solenoid Valve Coils, which are admired by clients in the nationwide markets for their ability to perform in the hardcore industrial applications.
Specifications :
Applications :
Additional Information:
Payment Terms : T/T
Packaging Details : standard packing
Delivery Time : 5 days
We are the principal manufacturer and exporter of Solenoid Valve Coils, which are diligently designed by the technical experts, incorporating the high-grade raw materials to ensure their quality and durability. These Solenoid Valve Coils are suitable for different voltages like AC and DC.
Additional Information:
Payment Terms : T/T,
Packaging Details : standard box packing
Delivery Time : 7-8 days
Solenoid coil is a device that converts energy in to linear motion. It is suitable for DC and AC voltage, further these also offer optimum flexibility, long service life, High performance, fast operation, compact design as well as corrosion resistant properties. Solenoid is a coil of insulated copper wire cover in the shape of cylinder. Magnetic field of a solenoid is similar to bar magnet when a electric current is passed through it.
Additional Information:
Payment Terms : T/T
Packaging Details : standard box packing
Delivery Time : 10 DAYS
WE ARE MANUFACTURER AND EXPORTER OF COILS AND SOLENOIDS.
Additional Information:
Packaging Details : STANDARD BOX PACKING.
Delivery Time : 08/10
we are mfg and exporter of coils and solenoids.
.Additional Information:
Payment Terms : T/T
Packaging Details : STANDARD BOX PACKING
Delivery Time : 3 WEEKS
PLUNGER TYPE MAGNET 440 VAC BRAKE COILS (BOBBIN TYPE IN PAIRS )
| COILS NAME | A | B | C | D | E | F | REST AT 230 VOLT |
| 4” X 6” EM | 85 | 67 | 32 | 42.5 | -- | 32 | 13.5 |
| 8” X 10” EM | 92 | 86 | 46 | 46 | -- | 34 | 6 |
| 12” X 15” EM | 116 | 97 | 56 | 74 | -- | 34 | 2.75 |
We are manufacturer and exporter of coils and solenoids,
Additional Information:
Payment Terms : T/T
Packaging Details : STANDARD BOX PACKING
Delivery Time : 15 DAYS
EPOXY MOULDED COILS
| COILS NAME | A | B | C | D | E | F | REST |
| CRANKING COILS | 76 | 82 | 49 | 35 | 33 | 130 | 113 |
| FS CONTACTOR | 76 | 82 | 49 | 35 | 33 | 130 | 139 |
EPOXY MOULDED COILS
| COILS NAME | A | B | C | D | E | F | REST |
| CRANKING COILS | 85 | 83 | 75 | 25 | -- | 32 | 325 |
EPOXY MOULDED COILS
| COILS NAMES | A | B | C | D | E | F | REST |
| OPERATING COILS | 64 | 73 | 40 | 26 | 14.5 | 68 | 65 |
EPOXY MOULDED COILS
| COILS NAMES | A | B | C | D | E | F | REST AT 230 VOLT |
| OPERATING COILS | 53 | 60 | 5.5 | 18.5 | 9.5 | 54.5 | 453 |
| OPERATING COILS | 53 | 60 | 5.5 | 18.5 | 9.5 | 54.5 | 555 |
Our company is the prominent exporter and manufacturer of high quality oflinear solenoidsthat are classified based on the construction, voltage and electrical duty cycle. We can also deliver these Linear Solenoids in customized specifications as per the client requirement.
Features:
* Quality finished range
* Longer service life
* Low maintenance
* Cost effective
Vibrator Coil is a device that combines two magnetic devices on the same iron-cored solenoid, it operate equally on both AC and DC Current. We manufacture various types of Vibrator coils that are used in various applications like Construction site, automobile industry, metal industry, electrical industry. These coils are precisely designed, easy to install and required low maintenance.
VOLTAS TYPE CONTACTOR COILS (BOBBIN TYPE)
| COILS NAME | A | B | C | D | E | F | REST AT 220 VOLT |
| 100 AMP | 79 | 79 | -- | 25 | -- | 65 | 1150 |
| 200 AMP | 94 | 94 | -- | 38 | -- | 75 | 750 |
AC SOLENOIDS (VOLTAGE AVAILABLE UPTO 500V) CONTINUE.
| TYPE | A | B | C | D | E | F | G | SEALED PULL IN KG | MAX LENGHT OF STROKE IN MM |
| NE-8 | 103 | 127 | 115 | 40 | 75 | 100 | 45 | 10.5 | 37 |
| NE-9 | 130 | 153 | 125 | 50 | 105 | 125 | 38 | 22.5 | 40 |
| NE-10 SUSPEN- DED | A- | 58 | 45 | 8 | A- | A- | 75 | 1.4 | 8 |
| NE-12 | 45 | 61 | 61 | 10 | 63 | 77 | 37 | 3 | 18 |
| NE-15T | 58 | 70 | 73 | 14 | 36 | 55 | 27 | 4.5 | 25 |
| NE-15 | 58 | 70 | 73 | 25 | 36 | 55 | 27 | 3.5 | 25 |
| NE-16 | 34 | 41 | 49 | 17 | 31 | 39 | 19 | 1 | 12 |
| NE-17T | 34 | 49 | 43 | 19 | 42 | 53 | 28 | 1.4 | 10 |
| NE-18T | 41 | 52 | 50 | 27 | 54 | 65 | 27 | 27 | 15 |
UI TYPE VIBRATOR COIL
| COILS NAMES | A | B | C | D | E | F | REST AT 230 VOLT |
| SMALL VIBRATOR | 56 | 35 | 23 | 42 | 40 | 57 | 116 |
| HEAVY DUTY VIBRATOR | 76 | 41 | 25 | 57 | 53 | 76 | 50 |
Solenoid coilis a device that converts energy in to linear motion. It is suitable for DC and AC voltage, further these also offer optimum flexibility, long service life, High performance, fast operation, compact design as well as corrosion resistant properties.
What is Solenoid?Solenoid is a coil of insulated copper wire cover in the shape of cylinder. Magnetic field of a solenoid is similar to bar magnet when a electric current is passed through it.
Solenoid Coilis made by the technical experts using high grade raw materials to ensure their quality and durability. These Coils are available in various specifications to meet the requirement of our customers.
Additional Information:
Payment Terms : T/T,
Coilsnsolenoid is the leading manufacturer, exporter and supplier of solenoid coil and solenoid valve coil, we offer these valves at different sizes, shapes and configuration as per the various industrial requirements and specifications. Now you can easily get these products at reasonable price by just contacting us on-line on our website.
Asolenoid valveis an electromechanically device which is controlled by an electric current through a solenoid. Electric current polarity is not improtant as you can connect AC or DC wire to solenoid valve coils.
Range :Hydraulic Solenoid Valve CoilPneumatic Solenoid Valve Coil
Features:High performanceAvailable in different voltage rangesAvailable in different finish specifications
Fields coils for Alternator, Generator, Traction Motors, Pole & Interpole Coils for Traction Motors, Air Core Reactors etc as per Customer requirment. We can manufacture upto 5TON KG Coils. HVCoils and insulator rings for PrecipitatorTransformers upto42 KV.
We are manufacturer and exporter of coils and solenoids. Vickers coil 617475 in 230 vac coil Id - 26 mm , od - 46 x 70 , ht - 44 mm
Additional Information:
Payment Terms : T/T,
Packaging Details : standard box packing
Delivery Time : 07 days
NITIN ENGINEERS is one of the credible Manufacturers and Exporters of the Hydraulic Solenoid Valve Coils, which are designed paying utmost focus on quality and functioning to facilitate clients in the best possible manner.
Specifications :
Applications :
Additional Information:
Payment Terms :
Packaging Details : standard box packing
Delivery Time : 07 days
vickers coil
Additional Information:
Packaging Details : standard box packing
Delivery Time : 07 days
We are manufacturer and exporter of coils and solenoids. This is Vickers coil 507848 with following dimensions. id - 23 , od - 46 x 46 , ht - 60 mm
Additional Information:
Packaging Details : standard box packing
Delivery Time : 07 days
this is molded coil 230 vac coil avilable in different voltages
id - 15 , od - 40 , ht - 32 mm
Additional Information:
Payment Terms :
Packaging Details : standard box packing
Delivery Time : 07 days
we are manufacturer and exporter of coils and solenoids. we have vickers coil 230 vac
Additional Information:
Payment Terms : T/T
Packaging Details : standard box packing
Delivery Time : 07 DAYS

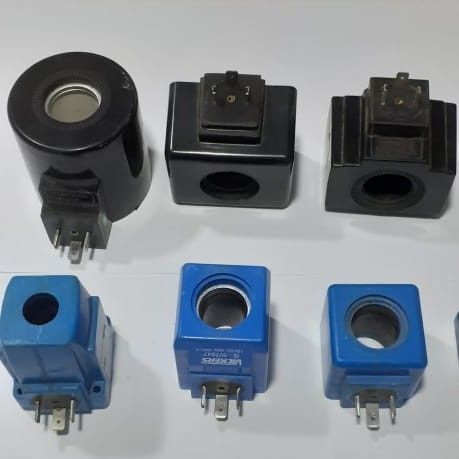

We are manufacturer and exporter of coils and solenoids. We have yuken coil 230 vac./p>
Additional Information:
Packaging Details : standard box packing
Delivery Time : 07 DAYS
