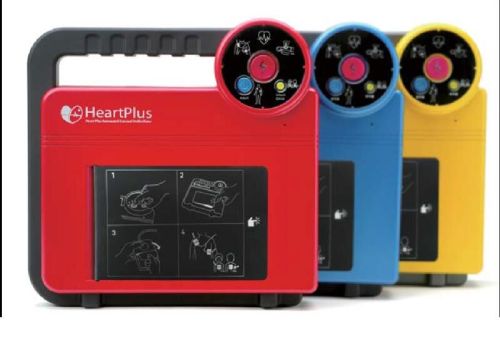

Heart Plus Automated External Defibrillator (AED)

₹ 1.81 Lakh / Piece

Get Latest Price

MOQ1 Piece(s)
Analysis OverviewPatient evaluated to determine whether ECG rhythm represents shockable or non-shockable state.
WaveformTruncated Exponential Biphasic
Analysis OverviewPatient evaluated to determine whether ECG rhythm represents shockable or non-shockable state.
Battery Cartridge TypeNon-rechargeable lithium (LiMn02)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Capacity180 shocks @ 25°C, 130 shocks @ 0°C
Analysis OverviewShockable rhythms are ventricular fibrillation (VF) and ventricular tachycardia (VT)
Drop Test1 meter
MemoryECG Records 5 sec during analysis only (up to 1000 instances), Ambient Noise: 60 minutes,4 inst of 1
Analysis OverviewPatient evaluated to determine whether ECG rhythm represents shockable or non-shockable state.
ECG RecordingLEAD II
Stored Contents:ECG recordings, operation information (whether shock delivered or not), ambient noise, self-diagnost
Memory: ECG1,000 instances of 5 seconds recordings, Ambient Noise: Total 60 minutes (4 instances of 15 minute c
Energy180J (Adult, Impedance 50Î©), 50J (Pediatric, Impedance 50Î©)
Analysis TimeLess than 11 seconds (Read: 5 seconds ± 2 seconds, Analyze: within 4 seconds)
Humidity(operating/storage)10% to 95% Relative Humidity, Non-Condensing
Altitude (operating/storage)0 to 2000 meters
Defibrillator SeriesNT-180
Water ResistanceIPX2 per IEC 60529
PartsMicrophone, Status button, Pads port,Shock button, Internal speaker, Power button for adults, Power button for infants
PhysicalDimensions 8.0cm(H) x 22.0cm(W) x 28.2cm(D), Weight 2kg (including battery and pads)
Temperature Operating & StorageOperating: 0°C to 40°C; Storage: -20°C to 60°C
Battery Cartridge TypeNon-rechargeable lithium (LiMn02)
ECG RecordingLEAD II
Self-TestTimes & results of 3,000 events, Storage Type: Internal Memory
WaveformTruncated Exponential Biphasic
Shock Charge Time13 seconds (Â±10%)
Analysis OverviewPatient evaluated to determine whether ECG rhythm represents shockable or non-shockable state.

Heart plus is a life-saving device that can be used safely and quickly in the case of an emergency.
our technology features accurate analysis to only advise shocks when necessary.
If the electrodes are not attached properly, the electric shock process is halted.
If the electric shock button is not pushed within 20 seconds, battery will discharge.
Inclusion of an overcharge prevention circuit for proper electric shock loads.
Dual electric shock waveform control circuit prevents malfunction of device.
Anyone can use by following voice prompts : voice prompts are simple and easy to follow.
Easy to check the status of device: check the status of device via status indicator, if some problem occurs.
Simple management of device to ensure its readiness: heart plus performs a self diagnostics every day to check its vital components. Administrator pre-connects pads and closes the cover after each use.
One pad for both adults and children: save time by using same electrode pads on both adults and infants children.
Automatically analyzing accurate ecg: after attaching the pads to the patient, ecg is analyzed. An electric shock is advised if a shockable rhythm is detected.

Additional Information

Payment Terms T/T
Packaging DetailsPhysical: Dimensions 8.0cm(H) x 22.0cm(W) x 28.2cm(D), Weight 2kg (including battery and pads)
Delivery Time14 -21 days
