Our Products
PVC, PP & Plastic Products
1 Products availablePlastic Component
1 Products availableIndustrial Plastic Pipes
1 Products availableHoses, Hose Assemblies & Fittings

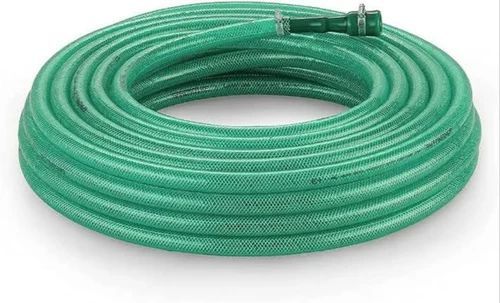

1 Products availableWe offer the best product range of Duct Hose, Plasticised PVC hose, Gas Welding Hose, Washing Machine Hose and Garden Hose.
Technical Specification
Nominal Size (mm) | Nominal Size (inch) | Std. Length (m) | Bend Radius (mm) | Bend Radius (inch) |
---|---|---|---|---|
25 | 1 | 30 | 30 | 1.2 |
32 | 1 1/4 | 30 | 33 | 1.3 |
38 | 1 1/2 | 30 | 35 | 1.4 |
50 | 2 | 50 | 50 | 2.0 |
65 | 2 1/2 | 50 | 60 | 2.4 |
75 | 3 | 50 | 75 | 3.0 |
100 | 4 | 30 | 90 | 3.5 |
125 | 5 | 30 | 120 | 4.7 |
150 | 6 | 20 | 150 | 5.9 |
colour:transparent with white spiral.temperature range: 10o c + 60o c, + 14 f + + 140 f.features :plasticised pvc hose with incorporated spiral reinforcement of anti-shock. rigid pvc. inside surface smooth, light corrugation outside. easy handling, light & flexible.resistant to crushing, abrasion, atmospherical agents and most chemicals. whether resistant.applications:suction and delivery of mineral waters, fruit juices, wines, liqueurs up to 25% alcohol contents, vinegar, alimentary liquids, milk, beverage, ice-cream, chocolates, pepremint, arreated drinks, powdered cereals. etc.approved for foodstuffs as d.m. 21.3.1973 and further changes.
Technical Specification
Inside (mm) | Inside (inch) | Wall Thickness (mm) | Bending Radius (mm) | Pressure Kg/cm | Vaccum mH2O | Roll Length | Volume m3 |
---|---|---|---|---|---|---|---|
19 | 3/4" | 2.4 | 110 | 5 - 15 | 6 | 30 | 0.062 |
25 | 1" | 204 | 140 | 5 - 15 | 6 | 30 | 0.062 |
32 | 1 1/4" | 2.5 | 180 | 5 - 15 | 6 | 30 | 0.130 |
40 | 1 1/2" | 3 | 210 | 5 - 15 | 6 | 30 | 0.190 |
50 | 2" | 3.6 | 270 | 5 - 15 | 6 | 30 | 0.475 |
63 | 2 1/2" | 3.7 | 350 | 5 - 15 | 6 | 30 | 0.675 |
76 | 3" | 4.1 | 500 | 4 - 12 | 6 | 30 | 0.676 |
90 | 3 1/2" | 6.0 | 420 | 4 - 12 | 7 | 30 | 0.630 |
100 | 4" | 6.0 | 470 | 4 - 12 | 7 | 30 | 0.765 |
Technical Specification
Size (mm) ID | Size (inch) ID | Working Press Kg/cm2 | Bursting Press Kg/Cm2 | Coil Length Mtrs. |
---|---|---|---|---|
8 x 14 | 5/16 | 20 | 56 | 100 |
10 x 16 | 3/8 | 20 | 56 | 100 |
Technical Specification
Size (mm) ID | Size (inch) ID | Working Press Kg/Cm2 | Bursting Press Kg/Cm2 | Coll Length Mtrs. |
---|---|---|---|---|
12.5 x 17 | 1/2 | 10 | 30 | 100 |
16 x 20 | 5/8 | 9 | 27 | 50 |
20 x 25 | 3/4 | 8 | 24 | 50 |
25 x 31 | 1 | 7 | 21 | 50 |
Technical Specification
INSIDE(mm) | INSIDE(inch) | Wall Thickness (mm) | Bending Radius (mm) | Pressure Kg/cm | Vaccum Length mH2O | Roll (m) | Volume (m |
---|---|---|---|---|---|---|---|
25 | 1" | 2.8 | 130 | 5 - 15 | 7 | 30 | 0.093 |
32 | 1 1/4" | 3.0 | 182 | 5 - 15 | 7 | 30 | 0.130 |
40 | 1 1/2" | 3.4 | 182 | 5 - 15 | 7 | 30 | 0.190 |
50 | 2" | 4.1 | 235 | 5 - 15 | 7 | 30 | 0.329 |
63 | 2 1/2" | 4.2 | 290 | 5 - 15 | 7 | 30 | 0.475 |
76 | 3" | 4.7 | 340 | 5 - 15 | 7 | 30 | 0.676 |
90 | 3 1/2" | 6.0 | 420 | 4 - 12 | 7 | 30 | 0.630 |
100 | 4" | 6.0 | 470 | 4 - 12 | 7 | 30 | 0.765 |
127 | 5" | 6.2 | 680 | 3 - 9 | 5.5 | 15 | 1.200 |
150 | 6" | 6.2 | 780 | 3 - 9 | 5 | 15 | 1.255 |
Technical Specification
Inside (mm) | Inside (inch) | Min Wall Thickness (mm) | Max Wall Thickness (mm) | Bending Radius (mm) | Vaccum mH2O | Roll Length (m) | Volume m3 |
---|---|---|---|---|---|---|---|
19 | 3/4" | 0.5 | 2.2 | 40 | 0.8 | 30 | 0.040 |
25 | 1" | 0.5 | 2.2 | 40 | 0.8 | 30 | 0.040 |
32 | 1 1/2" | 0.5 | 2.4 | 40 | 0.7 | 30 | 0.065 |
40 | 1 1/2" | 0.5 | 2.6 | 60 | 0.7 | 30 | 0.124 |
50 | 2" | 0.5 | 3.0 | 90 | 0.7 | 30 | 0.182 |
63 | 2 1/2" | 0.5 | 3.3 | 100 | 0.6 | 30 | 0.279 |
76 | 3" | 0.5 | 3.4 | 110 | 0.5 | 30 | 0.343 |
90 | 3 1/2" | 0.5 | 4.2 | 150 | 0.4 | 30 | 0.529 |
100 | 4" | 0.5 | 4.3 | 160 | 0.4 | 30 | 0.627 |
127 | 5" | 0.6 | 5.0 | 230 | 0.3 | 15 | 0.923 |
150 | 6" | 0.6 | 5.7 | 280 | 0.3 | 15 | 0.928 |
Technical Specification
Size (mm) ID | Size (inch) ID | Working Press Kg/cm2 | Bursting Press Kg/Cm2 | Coil Length Mtrs. |
---|---|---|---|---|
10 X 20 | 3/8 | 40 | 160 | 100 |
12.5 X 22.5 | 1/2 | 40 | 160 | 100 |
