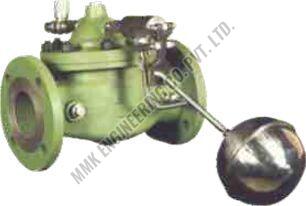

Level Control Valve SC-1110

Function The Model SC-1110 Modulating float control valve to maintain constant liquid level in storage tanks and reservoirs by compensating for variations in supply or demand, keeping the tank full. Operation The Ball type float operated Pilot Control is installed at the high liquid level in the tank/reservoir and is connected via tubing or pipe to the main valve. As the liquid level changes, the float control proportionally opens or closes the main valve, keeping the liquid level nearly constant. Size : 25NB - 400NB

This is an electrically actuated, hydraulically operated multi-function control valve. Used extensively in loading terminal automation systems in refineries and storage tanks of petroleum products for effective and accurate filling of tankers and railway wagons. It has two solenoid valves, receiving signal from batch controllers to position the valve for low flow/medium flow / high flow conditions as programmed.
Size : 25NB - 400NB

Function

Operated by two way-three way solenoid pilot valve, 3110 a Solenoid Control Valve is an on-off control valve that either open or closed upon receiving an electrical signals to the solenoid pilot control, provides two position (on-off) Operation.

Operation

This valve is consist of a "ACV" main valve and a two way solenoid valve. The main valve opens fully or closes drip tight depending upon the actuation position of the solenoid, energized to open/energized to close. The valve may be remotely operated by times, relays, probes or any triggered device to the solenoid. Size : 25NB - 400NB

• Non return function, closes automatically in case of reversal flow.
• The valve allows flow when inlet pressure is higher than outlet pressure.
• In case of reverse flow, the valve closes within appropriate time to ensure it does not generate any surge / water hammer.
• Ideal for Air craft fuelling application.
• IValve opens and closes at controlled (adjustable) speed to ensure smooth flow.

Size : 25NB - 400NB

• Auto Re-circulation on a Refueller to control the pumping pressure of Air Crafts.
• Solenoid Override or Pneumatic Override to safeguard the system. This can be operated remotely to re-circulate full flow.
• When installed in Main line, it prevents upstream pressure dropping below preset value.
• When installed on a By-Pass line, it controls main line pressure by relieving excess pressure in By-Pass/sump.
• Ideal for pump by pass to protect the downstream equipments
• Relief pilot (PR-610) is normally closed due to spring tension.
• With increase in upstream pressure above set value, Pilot (PR-610) opens which makes Main Valve to open fully.
• Spring Range: Standard: 20-200 psig. Optional: 5-30 psig.

Size : 25NB - 400NB

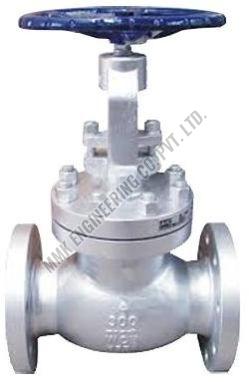

we synthesize a wide range of globe valves which includes seal globe valves, gate globe valves and cast iron globe valves. these globe valves are made from the finest quality of metal and raw materials. we hold a state of the art infrastructure, where we have all the latest machineries and tools. all are team is specially trained. we have set our own quality control team. the designs are unique and efficient. its been more than a decade that we are consistently serving our clients. with all this we are the paramount cast iron globe valves manufacturer and supplier from india.

safecon globe valves are o.s. & y type i.e. outside screw & yoke, bolted bonnet, & rising stem. globe valves are used where throttling and both throttling and shut-off is required. they can also be used for on-off service, but because of high pressure drop, this is generally confined to applications where the valve is normally closed and drop is not important when the valve is open. normally globe valves are installed with flow under the disc, but under certain conditions flow over the disc may have the advantages.

safecon can also supply angle valves, y type globe valves and globe valves as s.d.nr (screw-down non-return) which in effect converts it into two valves stop valve when closed or a check valve when open.

design features :

streamlined shaped body for smooth flow of the working fluid for minimum pressure drop. back seating arrangement permits the replacement of packings while the valve is in full open position

standards applicable : design standard : bs 1873 testing standard : api 598 / bs en 12266 -1 face to face : asme b 16.10 end connection : flanged end : asme b 16.5 butt weld end : asme b 16.25 pressure temperature : asme b 16.34 valve operation : operator : hand wheel size range : 2" - 10" class 150, 300 2" - 6" class 600 2" - 4" class 900, 1500 operator : gear operator size range : 12" & above class 150, 300 8" & above class 600 6" & above class 900 & 1500 material structure : end connection : flanged end raised face, butt weld end, rtj, etc. operation : hand wheel, gear operator, electrical actuator, pneumatic, hydraulic shell : wcb, wc1, wc6, wc9, lcb, lcc, lc3, c5, c12, cf8, cf8m, cf3, cf3m, cf8c, cn7m, cd4mcu, hastalloy, inconel, duplex stainless steel. trim : 13% cr. steel, 304, 304l, 316, 316l, 321, 347, monel, duplex stainless steel.

We fabricate a wide range of Check Valves which includes swing check valves, ball check valves and many more valves. These valves manufactured by us are made from the best of the metals. The designs of these valves are completely unique in comparison to other available in the market which directly increases its efficiency. These valves even work properly under tough and unyielding condition. These things make our products stand a way ahead of others available. We have a special quality analysis department which checks the quality. This has made us the most prominent wafer check valves manufacturer and suppliers in India. Swing Check Valves are having Bolted cover, Swing type disc. These valves are used to prevent flow reversal in piping systems. They are suitable for service in horizontal (flow up through valve only) piping runs. Swing Check Valves have low pressure drop and are best suited for moderate velocity applications. Correct sizing of swing check valves is important. Either too low a line velocity or too high a velocity can damage valve internals and shorten valve life. Swing Check Valves are suitable for all service media. Valves can also be supplied with counter weights and dash pot arrangement depending upon the condition and request.

Standards Applicable : Design Standard : BS 1868/API-6D Testing Standard : API 598/BS EN 12266 -1 Face to Face :ASME B 16.10 End Connection : Flanged End : ASME B 16.5 Butt Weld End : ASME B 16.25 Pressure Temperature : ASME B 16.34 Material Structure : End Connection : Flanged end raised face, Butt weld end, RTJ, etc. Shell : WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastalloy, Inconel, Duplex Stainless Steel. Trim : 13% Cr. Steel, 304, 304L, 316, 316L, 321, 347, Monel, Duplex Stainless steel.

MMK Valves is leading Globe Valve Manufacturers and Exporter in India. Our organization holds specialization in offering a wide range of Forged Globe Valves to the patrons. We source these products from renowned vendors, who manufacture the entire range using advanced technology. These products are manufactured in line with the set industry standards. To fulfill the variegated demands of our clients, we offer these products in varied specifications

MMK Valves is leading Globe Valve Manufacturers and Exporter in India. Our organization holds specialization in offering a wide range of Forged Globe Valves to the patrons. We source these products from renowned vendors, who manufacture the entire range using advanced technology. These products are manufactured in line with the set industry standards. To fulfill the variegated demands of our clients, we offer these products in varied specifications.

Application Throttling Features / Benefit:Throttling Single & Double Eccentric Design Full Lug & Semi Lug Type Design Top Mounting Pad as per ISO 5211 Unique Stem retention design to provide blow out proof stem & easy assembly & disassembly of valves Heavy Duty square grooved seat design with moulded O ring seals to act as flange gasket Self energizing seating design Through flow disc design for large size Butterfly Valves Different Lining and Metallurgy to suit a wide variety of applications including sea water & water desalination plants

Ansi Class / Rating :PN 10, PN 16, PN 20

Design Standard :BS EN 14432

Testing Standard:API 598

Size:50 mm to 500 mm

Materials :Body : Cast Iron, WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Disc : Ductile Iron, WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Seals : EPDM, Nitrile, Viton, Metal Seated etc

Ends Operation :Wafer End Mannual, Pneumatic, Electric

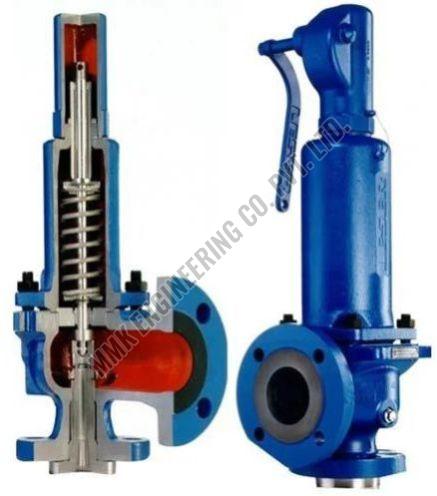

SAFECON - Series SC- 5000 SAFETY / PRESSURE RELIEF VALVES are designed and manufactured in compliance with API 520 / ASME Section Vlll Division l for High performance application for use on vapor, gas and liquid for over pressure protection. This Conventional safety / pressure relief valves are versatile, safe & interchangeable.

"SAFECON - Globe type Control valves are available for any control application. Built to take the punishment imparted by many processes, including extreme pressure drops, the valve is backed by the most respected name in the valve industry.

291 (Single Seated, Globe, Unbalanced Design) Top guidedMost widely used valve, for all major Fluids, Working conditions & Applications. Very easy to maintain. 282 (Single Seated, Globe, Balanced Design) Cage GuidedExcellent valve for Liquid, Air & Clean Gases. Has very high stability and better response. 142 (Single Seated, Globe) Top & Bottom guidedSuitable for High working pressure & High pressure Drop. 112 (Double Seated Globe) Top & Bottom guidedUsed for High Flow Capacity (Cv Value) & High Pressure Differential such as Boiler feed Water, etc. 153 (3 Way Mixing & Diverting) Skirt & Top GuidedUsed for Thermic Fluid, Steam, Cooling Water, etc. where excess amount of fluid has to be by-passed.

Accessories (Optional) Positioner (Pneumatic, Electro Pneumatic & Smart) Pressure Transmitter I/P Converter Solenoid Valve Limit Switches Air Filter Regulator Manual Hand Wheel All models available with Direct and Reverse Acting Actuators

We are the eminent Gate Valves Manufacturer and Exporter in India which is basically a motor valve. It is very useful and made with advanced technology.Features:Optimum qualityLow maintenance requiredEconomic prices
