Our Products
Industrial Carts
2 Products availableSteel Products
1 Products availableused in vibro classoifer mtra machine for cleaning purpose
size available 995 x 995
1495 x 995
available in:- wire mesh
perforated sheet
Additional Information:
Payment Terms :
Packaging Details : Packed in Cartoon box
Delivery Time : 10 to 12 days
Additional Information:
Payment Terms : T/T
Packaging Details : INDIVIDUAL PACKED IN PRINTED BOX AND PACKED SIX NOS OF BOX IN MASTER CORRUGATED CARTON
Delivery Time : ONE MONTH
Additional Information:
Payment Terms : T/T
Packaging Details : INDIVIDUAL PACKED IN PRINTED BOX AND PACKED SIX NOS OF BOX IN MASTER CORRUGATED CARTON
Delivery Time : ONE MONTH
Additional Information:
Payment Terms : T/T
Delivery Time : ONE MONTH
The company is a highly efficient and dependable Manufacturer & Supplier of Industrial Trolley (MGMT - WB). These Industrial Trolleys have Wheel Barrows and the company ensures the delivery of the best quality and highly efficient products. The Industrial Trolleys can be availed at the best prices and the deliveries of the consignments are timely. Features
screw flights available in MS & SS 304
screw segments available in MS, SS 304 & SS 316
screw conveyor available
Additional Information:
Payment Terms : D/P
Packaging Details : packed in plastic sheet
Delivery Time : 10 to 12 days
Additional Information:
Payment Terms : T/T
Packaging Details : INDIVIDUAL PACKED IN PRINTED BOX AND PACKED SIX NOS OF BOX IN MASTER CORRUGATED CARTON
Delivery Time : ONE MONTH
Additional Information:
Payment Terms : T/T
Packaging Details : INDIVIDUAL PACKED IN PRINTED BOX AND PACKED SIX NOS OF BOX IN MASTER CORRUGATED CARTON
Delivery Time : ONE MONTH
MGMT has a wide range of Vibrator Motors (unbalanced) Manufacturer, Supplier & Exporter to meet the requirement of various industries wherein material handling plays a major role.These vibrators help to empty, dose, convey, loosen, test, clean, screen, compact, distribute, feed etc., and therefore have a very wide application in Mining, Fertilizer, Chemical, Pharmaceuticals & Food Process Industry etc. These vibrators are suitable for mounting on bin and storage silo, vibrating feeders, tables & screens and many other applications Orton Unbalance Motor Vibrator is totally enclosed, surface cooled units operating 415/440 volts, 3 phase, 50 cycles. A. C. Supply. The vibrating frequency depends on the revolutions of the rotary unit and can be chosen from four ranges available viz., : 3000, 1500, 1000, 750 vibrations per minute. The Centrifugal force can be adjusted from Zero to Maximum by manipulating the relative positions of the eccentric weights provided on either side of the shaft. Various models are available giving a wide choice of Centrifugal force, frequency of vibration, mounting position, Insulation etc. The customer is therefore assured of getting the most suitable vibrator to meet his requirements.
When used as a single unit, they impact circular vibrations. If directional vibrations are needed, two vibrators running in the opposite direction should be use.
Salient Features :
Construction :
Specifications :
Description
Sizes & RPM | Working Moment (Kg/cm) | Centrifugal Force Newton | Vibrating Equipment Mass (Kgs.) |
---|---|---|---|
0.25 HP, 960 / 1440 / 2800 RPM | 40 | 6450 | 60-120 |
0.5 HP, 960 / 1440 / 2800 RPM | 75 | 8800 | 120-200 |
1.0 HP, 960 / 1440 / 2800 RPM | 95 | 11100 | 200-450 |
1.5 HP, 960 / 1440 / 2800 RPM | 145 | 17000 | 300-725 |
2.0 HP, 960 / 1440 / 2800 RPM | 235 | 27500 | 485-1210 |
3.0 HP, 960 / 1440 / 2800 RPM | 325 | 35000 | 690-1750 |
5.0 HP, 960 / 1440 / 2800 RPM | 430 | 44000 | 970-2400 |
Specifications
Model No | Power Input HP | A | B | Mounting Hole Dia. x Nos. Of Holes | Mounting Hole Dia. x Nos. Of Holes |
---|---|---|---|---|---|
VMFT - 025 | 0.25 | 80 | 85 | 12.5 mm x 4 nos | 350 |
VMFT - 050 | 0.5 | 120 | 85 | 15 mm x 4 nos | 750 |
VMFT - 100 | 1 | 140 | 108 | 17 mm x 4 nos | 1800 |
VMFT - 200 | 2 | 152 | 130 | 21 mm x 4 nos | 3500 |
VMFT - 300 | 3 | 152 | 180 | 25 mm x 6 nos | 4500 |
VMFT - 500 | 5 | 248 | 170 | 25 mm x 6 nos | 5500 |
VMFT - 750 | 7.5 | 280 | 200 | 27 mm x 6 nos | 9000 |
VMFT - 1000 | 10 | 300 | 235 | 27 mm x 6 nos | 12000 |
Technical Specifications
Model No | Power Input HP | PCD | Mounting Hole Dia. x Nos. Of Holes |
---|---|---|---|
VMFT - 025 | 0.25 | 160 | 14 mm x 6 nos. |
VMFT - 050 | 0.5 | 180 | 14 mm x 6 nos. |
VMFT - 100 | 1 | 230 | 15 mm x 6 nos. |
VMFT - 200 | 2 | 230 | 22 mm x 6 nos. |
VMFT - 300 | 3 | 270 | 22 mm x 6 nos |
VMFT - 500 | 5 | 300 | 27 mm x 6 nos |
VMFT - 750 | 7.5 | 360 | 27 mm x 6 nos |
VMFT - 1000 | 10 | 400 | 27 mm x 6 nos |

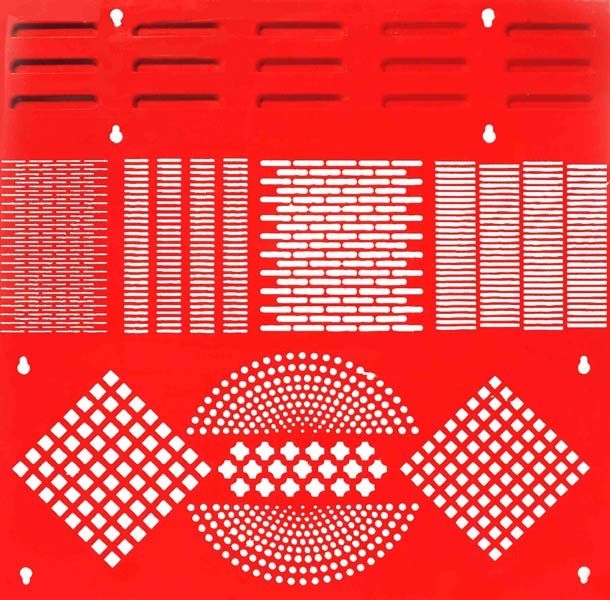

We are one of a leading manufacture and supplier of perforated sheets. These perforated sheets are made of premium quality raw material which is collected and selected by our experts. Perforated sheets are made by us against specific orders and are made available with round, square & rectangle holes in different metals. We also offer you special hole perforate by cnc laser & cnc turret punch machines product usage the versatile uses of perforated metal sheets are : flour, dal, rice agricultural machinery malt & beverages oil mills cement & sugar mill machinery automobile components filters radiator grills indented sheets for seed grading wagons building & houses interior decoration electric components electronics strainers for chemicals textile and dyeing machinery gas stoves cooling & heating equipments type : square hole round hole triangular hole oblong hole etc. moc : ms crc gi ss brass copper aluminium. size & pitch : as per requirement.
Additional Information:
Payment Terms : T/T
Delivery Time : 10 TO 12 DAYS
Based in Sidhpur (Gujarat), the company is recognized as a prominent Importer Distributor & Supplier of Continuous Cold Rolled Screw Flights.
Material of Construction : Carbon steel / Stanless steel
Features :
Additional Information:
Delivery Time : 10 TO 12 DAYS
Technical Specifications
Standard Model | 100 | 125 | 160 | 175 | 200 | 250 | 300 | 320 | 400 | 500 | 630 | 800 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Outer Diameter (mm) | Φ100 | Φ125 | Φ160 | Φ175 | Φ200 | Φ250 | Φ300 | Φ320 | Φ400 | Φ500 | Φ630 | Φ800 |
Inner Diameter (mm) | Θ 32 | θ 32 | Θ 42 | θ 38 | θ 48 | θ 60-73 | θ 60-73 | θ 73 | θ 114 | θ141 | θ 168 | θ219 |
Pitch (mm) | 100 | 100-125 | 120-160 | 175 | 160-200 | 200-250 | 250-300 | 250-320 | 320-400 | 400 | 450-500 | 500 |
Thickness of plate (mm) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5-5 | 3.5-5 | 3.5-5 | 3.5-5 | 5-6 | 5-6 | 5-6 | 5-6 |
Standard Length | 3 Mtrs. |
Download
Additional Information:
Payment Terms : T/T
Delivery Time : ONE MONTH
Additional Information:
Payment Terms : T/T
Delivery Time : ONE MONTH
Additional Information:
Payment Terms : T/T
Delivery Time : ONE MONTH
Additional Information:
Payment Terms : T/T
Delivery Time : ONE MONTH
we are one of the reliable importer distributor & supplier of sectional screw flights from sidhpur (gujarat). we use the finest grade metal to manufacture sectional screw flights.
material :
carbon steel, low alloy steel, stainless steel
features :
specification :
Additional Information:
Payment Terms :
Delivery Time : 10 TO 12 DAYS
Technical Specifications
Pitch (mm) | Minimum Inner Diameter (mm) | Maximum Outer Diameter (mm) | Thickness (mm) |
60-150 | 30 | 480 | Carbon Steel < 50mm Manganese Steel < 50mm Stainless Steel < 40 mm |
150-200 | 50 | 520 | |
200-300 | 60 | 670 | |
300-450 | 90 | 950 | |
450-500 | 135 | 1150 | |
500-650 | 150 | 1350 | |
650-850 | 200 | 1400 | |
850-950 | 250 | 1450 | |
950-1200 | 300 | 1600 | |
1200-1250 | 400 | 1800 | |
1250-1300 | 450 | 2000 |
Download
The company has achieved expertise as a Manufacturer & Supplier of Industrial Trolley (MGMT - SCT). These Industrial Trolleys work with a Single Cylinder Trolley and are appreciated for their unmatched efficiency. The company ensures the timely delivery of the Industrial Trolleys under the safest conditions and the prices are highly competitive as well.
Features
Additional Information:
Delivery Time : 10 TO 12 DAYS
MGMTis a world famous company amidst the leading Manufacturers, Suppliers and Exporters of Rolling Work Station With 3 Drawer & Cabin With Perforated Panel For Hanging Tools in India. For the manufacturing of the Rolling Work Station With 3 Drawer & Cabin With Perforated Panel For Hanging Tools, high grade materials are used to make it a perfect match to the international paradigms in terms of quality and performance. Buyers from India and international market are placing huge orders as there is no preference available when it comes to notable attributes and affordability. Moreover, the conventional packaging is also provided to prevent the Rolling Work Station With 3 Drawer & Cabin With Perforated Panel For Hanging Tools from transit damage.
FeaturesSmall compact design with full features.Strong handle for easy action.Central locking with cylindrical key.30 to 70 kgs. load capacity per drawer depending on drawer size.Different size drawers for storing different tools.Bottom big cabinet for big and heavy tools.Removable drawers with ball bearings 100% extendable.Even load distribution while opening and closing.Both side crucifix perforation for hanging of tools and other attachments.Stable standing secured by locking castors.Robust wheel design to protect from toppling.Heavy duty Rubber/PU wheels.Electro powder coating for better paint life.Perforated panel on top for hanging of tools.15)Special tray for mouse for working on laptop.set of assorted hooks of different sizes for hanging different tools.Ideal for Garages and workshops.
The company is Manufacturer & Supplier of Vibro De Stoner Wooden Frame. The Vibro De Stoner Frame offered by the company have best proformance in grading. & more production, & is made of best quality of tig wood Which match perfect size
The company is Manufacturer & Supplier of Vibro Classifier MTRA Wooden Frame. The Vibro Classifier MTRA Wooden Frame offered by the company have best performance in grading. & more production, & is made of best quality of tig wood Which match perfect size.
Our Network AreaTalking about our network area, well, lets say that we are serving people almost all over the world. This includes countries like India, England, Austria, Brazil, and the list never ends. So why worry when you have us for your services. Contact us and avail from us premium quality equipments along with our gratifying services!
MGMTis listed as one of the leading Perforated Sieves Manufacturers, Suppliers and Exporters from India. The sieves are manufactured using genuine grade materials that ensure a perfect match to the international quality standards. The market demand has also increased as these sieves are available at market leading prices and in various sizes and dimensions. In addition to this, to ensure a damage free transit, the perforated sieves are packed using conventional packaging material. The sieves, offered by MGMT are widely used in various domestic and international industries.
Application AreasFlour, Dal, Rice Agricultural MachineryMalt & BeveragesOil MillsCement & Sugar Mill MachineryAutomobile ComponentsFiltersRadiator GrillsIndented Sheets For Seed GradingWagonsBuilding & Houses Interior DecorationElectric ComponentsElectronicsStrainers For ChemicalsTextile And Dyeing MachineryGas StovesCooling & Heating Equipments
Types AvailableSquare HoleRound HoleTriangular HoleOblong Hole etc.
Material of ConstructionMild SteelCRCGIStainless SteelBrassCopperAluminum
Buyers from India and abroad are placing huge orders for MS Perforated Sheet offered by MGMT Gujarat. The company is looked upon as one of the forefront Manufacturers, Suppliers and Exporters of MS Perforated Sheets, based in India. To meet the specific industrial requirements of the application areas, the sheets are available in different types, sizes and dimensions. Notable features such as high durability, resistance to rust, smooth finish, cost-effective price and timely delivery have played crucial role in the enhancement of the domestic as well as international market demand.
Application AreasFlour, Dal, Rice Agricultural MachineryMalt & BeveragesOil MillsCement & Sugar Mill MachineryAutomobile ComponentsFiltersRadiator GrillsIndented Sheets For Seed GradingWagonsBuilding & Houses Interior DecorationElectric ComponentsElectronicsStrainers For ChemicalsTextile And Dyeing MachineryGas StovesCooling & Heating Equipments
MGMThas carved a niche as one of the supreme Round Hole Perforated Sieves Manufacturers, Suppliers and Exporters from India. Materials used in the manufacturing are of genuine grade that further comply with the international quality standards. The buyers are facilitated with the availability of the Round Hole Perforated Sieves at market leading prices and within the stipulated timeframe. The sieves are also packed conventionally to prevent damage during transit. Moreover, the company also specializes in ascertaining customer satisfaction by offering Round Hole Perforated Sieves in various sizes and dimensions.
Application AreasFlour, Dal, Rice Agricultural MachineryMalt & BeveragesOil MillsCement & Sugar Mill MachineryAutomobile ComponentsFiltersRadiator GrillsIndented Sheets For Seed GradingWagonsBuilding & Houses Interior DecorationElectric ComponentsElectronicsStrainers For ChemicalsTextile And Dyeing MachineryGas StovesCooling & Heating Equipments
Material of ConstructionMild Steel
CRC
GI
Stainless Steel
Brass
Copper
Aluminum
MGMTis the name to trust for the availability of international standard Laser Cutting Perforated Sieves at market leading prices. The unmatched quality and excellent performance has attracted buyers from India and international market for the availability of the Laser Cutting Perforated Sieves. Our company is well-reputed as one of the top-notch Manufacturers, Suppliers and Exporters of Laser Cutting Perforated Sieves, based in Gujarat. The Laser Cutting Perforated Sieves are manufactured using premium quality materials that ensure noteworthy features such as high durability, tensile strength and resistance to corrosion.
Application AreasFlour, Dal, Rice Agricultural MachineryMalt & BeveragesOil MillsCement & Sugar Mill MachineryAutomobile ComponentsFiltersRadiator GrillsIndented Sheets For Seed GradingWagonsBuilding & Houses Interior DecorationElectric ComponentsElectronicsStrainers For ChemicalsTextile And Dyeing MachineryGas StovesCooling & Heating Equipments
Material of ConstructionMild Steel
CRC
GI
Stainless Steel
Brass
Copper
Aluminum
The heavy Duty Tool Box is manufactured using high grade MS Sheets that ensure notable features such as high durability, tensile strength, and resistance to corrosion. The tool boxes are available in various sizes, dimensions and sections to meet the specific requirements of the buyers. The affordability and timely delivery have also played crucial role in the enhancement of the market demand. We are also acknowledged as one of the dependable Heavy Duty Tool Box Manufacturers, Suppliers and Exporters from India. The heavy duty tool boxes are also available in conventional packaging that prevents damage during transit.
FeaturesStrong dual handles for easy lift.PVC grip on handles for better grip while lifting.Constructed from best quality 0.7mm fresh MS sheets.One or more sections to store tools as per convenience.Heavy duty corrosion free stainless steel rivets for extra strength.Electro powder coating for better paint life.Lockable top lids for security.
Cold Process Conveyor Screw Flights, offered by MGMT, are widely demanded in the domestic and international market as there is no alternative available when it comes to quality and performance. The company is listed as one of the sought-after manufacturers, suppliers and exporters of Cold Process Conveyor Screw Flights, based in Gujarat. The unmatched quality, excellent performance, and cost effectiveness have also played a crucial role in the enhancement of the market demand. Moreover, Cold Process Conveyor Screw Flights are available in various sizes and dimensions to meet the requirements of the application areas.
Material of Construction
Carbon SteelStainless Steel
Features
Continues Length (3 Mtr. Long)Smooth Finish SurfaceUniform ShapeHigh PrecisionGood Tensile StrengthWear Resistance
Standard Model | 100 | 125 | 160 | 175 | 200 | 250 | 300 | 320 | 400 | 500 | 630 | 800 |
Outer Diameter (MM) | Φ 100 | Φ 125 | Φ 160 | Φ 175 | Φ 200 | Φ 250 | Φ 300 | Φ 320 | Φ 400 | Φ 500 | Φ 630 | Φ 800 |
Inner Diameter (MM) | Θ 32 | θ 32 | Θ 42 | θ 38 | θ 48 | θ 60-73 | θ 60-73 | θ 73 | θ 114 | θ 141 | θ 168 | θ 219 |
Pitch
(MM) |
100 | 100-125 | 120-160 | 175 | 160-200 | 200-250 | 250-300 | 250-320 | 320-400 | 400 | 450-500 | 500 |
Thickness of plate (MM) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5-5 | 3.5-5 | 3.5-5 | 3.5-5 | 5-6 | 5-6 | 5-6 | 5-6 |
Standard
Length |
3 Mtrs. |
