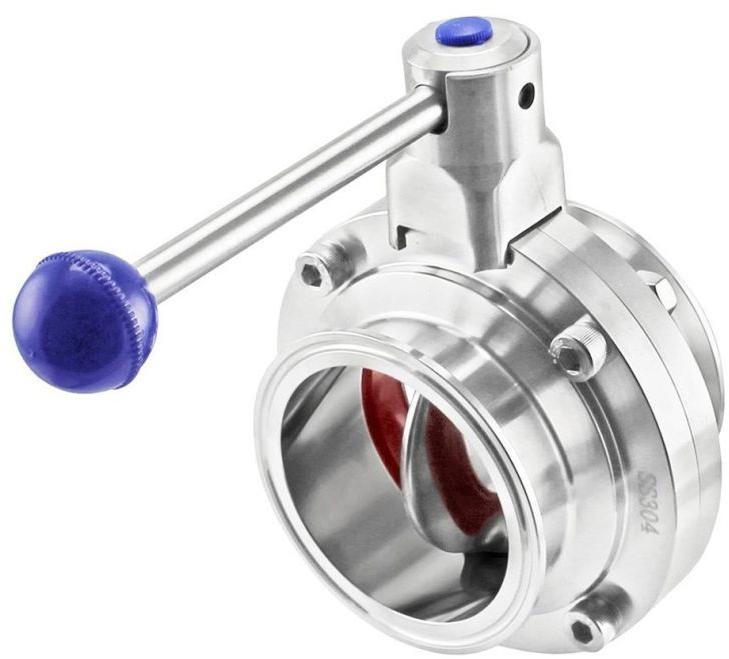

1 Products availableButterfly Valves
1 Products availableBall Valves
1 Products availableWe offer the best product range of Stainless Steel Butterfly Valves, Stainless Steel Ball Valve, Water SS 304 Y Type Strainer, Metal Seated Gate Valve and WCB Pulp Valve.
Metflow Engineers are global and integrated Globe Valves manufacturers in India selling and distributing our supreme range of products at the most suitable prices.
Our product range is exported in the local and international market as per industry requirements. Precisely engineered and manufactured, our globe valves are taken as quality pieces in the manufacturing industry.
Our products are available at the most competitive prices having commendable functionality and user-friendly nature that makes our valve products highly demanding in the market.
Further, being reputed Globe Valves suppliers and manufacturers in India, we also give custom solutions to our clients as per their usage and industry requirements. You can place either bulk or small order with us; our staff is always ready to help you with cutting-edge valve solutions.
Standard Materials
Parts | Materials | ||
---|---|---|---|
Body | WCB | CF8 | CF8M |
Bonnet | WCB | CF8 | CF8M |
Stem | SS 410 | SS 304 | SS 316 |
Plug | CA 15 or 13Cr faced | CF8 | CF8M |
Seat | 13% Cr. or Steel | CoCr Alloy Faced | CoCr Alloy Faced |
Packing Flanged | Carbon Steel | Stainless steel | Stainless Steel |
Gland Bushing | Carbon Steel | Stainless steel | Stainless steel |
Packing ring | Graphite | ||
Gland Stud | Gr. B7 | Gr. B8 | B8M |
Gland Nut | Gr.2H | Gr.8 | Gr.8M |
Boby/Bonnet Nut | Gr.2H | Gr.8 | Gr.8M |
Body/Bonnet Stud | Gr.B7 | Gr.B8 | B8M |
Back Seat | SS 410 | SS 304 | SS 316 |
Gasket | Class 150: Corrugated Steel / Graphite Class 300 - 1500: Spiral Stainless Steel / Graphite |
||
Hinge Pin | AISI 410 | SS 304 | SS 316 |
Yoke Bushing | Carbon Steel | Stainless Steel | Stainess Steel |
Stem Nut | A 439 Austenitic Ductile Iron Gr.D-2c | ||
Handwheel Nut | Malleable Iron or Steel | ||
Handwheel | Malleable Iron or Ductile Iron |
Design Specifications
Item | Applicable STD. |
---|---|
Wall thickness and general design ≤ NPS 24 | API 600, ISO 1873 |
Wall thickness and general design > NPS 24 | ASME B16.34 |
Pressure Temperature Rating | ASME B16.34 |
Face-to-Face dimensios for butt weld and flanged valves | ASME B16.10 |
Testing Standard | API 598 |
Flange Design | ASME B16.5 |
Butt Welding Design | ASME B16.25 |
Materials | ASTM |
ANSI Class 150
Dimensional Details As Per ANSI 150 # Class | |||||||||||||
Size | 2" | 2 1/2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
F to F | 203 | 216 | 241 | 292 | 406 | 495 | 622 | 699 | 787 | 914 | 978 | 978 | 1295 |
OD | 150 | 180 | 190 | 230 | 280 | 345 | 405 | 485 | 535 | 595 | 635 | 700 | 815 |
THK | 17.5 | 20.7 | 22.3 | 22.3 | 25.4 | 28.6 | 30.2 | 31.8 | 33.4 | 35 | 38.1 | 41.3 | 46.1 |
RFD | 92 | 105 | 127 | 157 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 |
PCD | 120.7 | 139.7 | 152.4 | 190.5 | 241.3 | 298.5 | 362 | 431.8 | 476.3 | 539.8 | 577.9 | 635 | 749.3 |
od | 19.05 | 19.05 | 19.05 | 19.05 | 22.23 | 22.23 | 25.4 | 25.4 | 28.58 | 28.58 | 31.75 | 31.75 | 34.93 |
NOH | 4 | 4 | 4 | 8 | 8 | 8 | 12 | 12 | 12 | 16 | 16 | 20 | 20 |
ANSI Class 300
Dimensional Details As Per ANSI 300 # Class | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Size | 2" | 2 1/2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
F to F | 266.7 | 292.1 | 317.5 | 355.6 | 444.5 | 558.9 | 622.3 | 711.2 | - | - | - | - | - |
OD | 165 | 190 | 210 | 255 | 320 | 380 | 445 | 520 | 585 | 650 | 710 | 775 | 915 |
THK | 20.7 | 23.9 | 27 | 30.2 | 35 | 39.7 | 46.1 | 49.3 | 52.4 | 55.6 | 58.8 | 62 | 68.3 |
RFD | 92 | 105 | 127 | 157 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 |
PCD | 127 | 149.2 | 168.3 | 200 | 269.9 | 330.2 | 387.4 | 450.8 | 514.4 | 571.5 | 628.6 | 685.8 | 812.8 |
od | 19.05 | 22.22 | 22.22 | 22.22 | 22.22 | 25.4 | 28.57 | 31.75 | 31.75 | 34.93 | 34.93 | 34.93 | 41.28 |

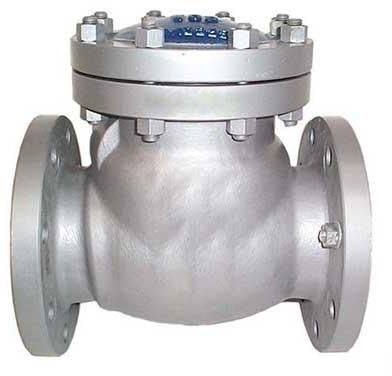

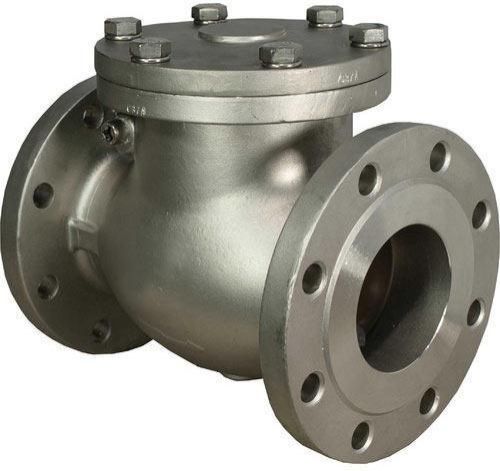

Metflow Engineers is the best swing check Valves Manufacturer and supplier in India. A swing check valve is mounted with a disc that swings on a hinge or shaft. The disc swings off the seat to allow forward flow and when the flow is stopped, the disc swings back onto the seat to block reverse flow. The weight of the disc and the return flow has an impact on the shut-off characteristics of the valve.
Often a lever and weight or a lever and spring are mounted to achieve optimum performance. Swing check valves with lever and weight are appropriate for installations with an increased risk of water hammer at standard velocities.
Order now.
Standard Materials
Parts | Materials | ||
---|---|---|---|
Body | WCB | CF8 | CF8M |
Cover | WCB | CF8 | CF8M |
Hinge Pin | SS 410 | SS 304 | SS 316 |
Disc | CA 15 or 13Cr faced WVB | CF8 | CF8M |
Seat | 13% Cr. or Steel | CoCr Alloy Faced | CoCr Alloy Faced |
Gasket | Class 150: Corrugated Steel / Graphite Class 300 - 1500: Spiral Stainless Steel / Graphite |
||
Boby/Cover Nut | Gr.2H | Gr.8 | Gr.8M |
Body/Cover Stud | Gr.B7 | Gr.B8 | B8M |
Name Plate | Stainless Steel |
Specifications
Item | Applicable STD. |
---|---|
Wall thickness and general design ≤ NPS 24 | API 600, ISO 1868 |
Wall thickness and general design > NPS 24 | ASME B16.34 |
Pressure Temperature Rating | ASME B16.34 |
Face-to-Face dimensios for butt weld and flanged valves | ASME B16.10 |
Testing Standard | API 598 |
Flange Design | ASME B16.5 |
Butt Welding Design | ASME B16.25 |
Materials | ASTM |
ANSI Class 150
Dimensional Details As Per ANSI 150 # Class | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Size | 2" | 2 1/2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
F to F | 203 | 216 | 241 | 292 | 356 | 495 | 622 | 699 | 787 | 914 | 978 | 978 | 1295 |
OD | 150 | 180 | 190 | 230 | 280 | 345 | 405 | 485 | 535 | 595 | 635 | 700 | 815 |
THK | 17.5 | 20.7 | 22.3 | 22.3 | 25.4 | 28.6 | 30.2 | 31.8 | 33.4 | 35 | 38.1 | 41.3 | 46.1 |
RFD | 92 | 105 | 127 | 157 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 |
PCD | 120.7 | 139.7 | 152.4 | 190.5 | 241.3 | 298.5 | 362 | 431.8 | 476.3 | 539.8 | 577.9 | 635 | 749.3 |
od | 19.05 | 19.05 | 19.05 | 19.05 | 22.23 | 22.23 | 25.4 | 25.4 | 28.58 | 28.58 | 31.75 | 31.75 | 34.93 |
NOH | 4 | 4 | 4 | 8 | 8 | 8 | 12 | 12 | 12 | 16 | 16 | 20 | 20 |
ANSI Class 300
Dimensional Details As Per ANSI 300 # Class | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Size | 2" | 2 1/2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
F to F | 266.7 | 292.1 | 317.5 | 355.6 | 444.5 | 533.4 | 622.3 | 711.2 | 838.2 | 863.6 | 977.9 | 1016 | 1346.2 |
OD | 165 | 190 | 210 | 255 | 320 | 380 | 445 | 520 | 585 | 650 | 710 | 775 | 915 |
THK | 20.7 | 23.9 | 27 | 30.2 | 35 | 39.7 | 46.1 | 49.3 | 52.4 | 55.6 | 58.8 | 62 | 68.3 |
RFD | 92 | 105 | 127 | 157 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 |
PCD | 127 | 149.2 | 168.3 | 200 | 269.9 | 330.2 | 387.4 | 450.8 | 514.4 | 571.5 | 628.6 | 685.8 | 812.8 |
od | 19.05 | 22.22 | 22.22 | 22.22 | 22.22 | 25.4 | 28.57 | 31.75 | 31.75 | 34.93 | 34.93 | 34.93 | 41.28 |
NOH | 8 | 8 | 8 | 8 | 12 | 12 | 16 | 16 | 20 | 20 | 24 | 24 | 24 |

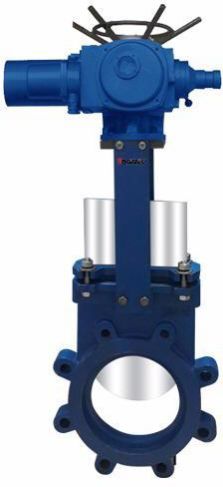

Metflow Engineers is reliable and trusted Knife Edge Gate Valve manufacturer in India. Metflow Engineers manufacturing uni-directional knife gate valves and bidirectional knife gate valves a wide range of knife gate valve manufacturers in different models and several different sizes of knife gate Valves using high grade of CI / WCB / SS304 and SS316 knife gate valves casting to the suite to every specific application are honoured as the finest one and has become an obvious choice in the user industries.
Our Knife Edge Gate Valve is one of the specific designs to ensure minimum contact between the parts of the valve to reduce Wear & Tear. The Batten edge of the Gate (Knife-Edge) allows the tight shut-off even when solid particles settle at the bottom of the Body.
Contact us today.
Standard Materials
Edge Gate Valves | Uni-directional I Bi-directional Knife Edge Gate Valve | |
---|---|---|
Body/Gate/Seat | Cast Steel I CastIron I S.G.lrolVSS 304 I 316 I 316L. | |
M.O.C. | Body: | Cast Corrosion resistant steelor cast Iron to provide receptivity against corrosion for all wetted parts |
Stem: | Stainless steel or as desire, having double start thread rising I non-rising spindle, For fast closing and opening. | |
Gate: | The Stainless steel knife gate plate is precision-buffed on both sides, to enhance Packing life and ensure positive shut off even heavy or high-viscous fluid. | |
Seat: | Renewable Metal-to-Metal, replaceable type, soft seat and other Suitable to application. | |
Port Type : | Round Port, Lugged Type. | |
Valve End Connection : | Flanged End I Uni Lugged,Wafer ,Two Lug, Wafer Flangeless. | |
Sizes : | SOmm TO 600mm | |
Rating : | Pressure Rating Up to PN 10 Class | |
Drilling : | Option Include ANSI, DIN, BS, JIS and AS standard; others on request | |
Operat on Available : | Manual,Cylinder Operated,Electrical Actuator,Pneumatic Actuator with Manual Override. |
Design Specifications
Body Parts Name | M.O.C. of Parts |
---|---|
Body | WCB / CF8 / CF8M |
Yoke | WCB / CF8 / CF8M |
Yoke Bush / Sleev | C.S. |
Disc | S.S. 304 / 316 |
Gland | WCB / CF8 / A 19A 2H |
Gland Stud & Nut | ASTM A 193 B7 / A 194 2H |
Gland Packing | Graphite / PTFE |
Seat | Soft / Metal |
Seat Ring | CF8 / CF8M |
Seam / Spindle | S.S. 304 / 316 |
Spindle Pind / Stud & Nut | S.S. 304 / 316 |
Wheel / Nut | C.S. |
Wheel / Nut | C.I. |
Metflow Engineers is a reliable and trusted forged Ball Valves Manufacturer. This valve is specially designed to meet the standards of the industry. This is forged carefully to have better mechanical properties, ductility, impact and scratch body.
Our product is cold forged or hot forged depending upon requirements. Our product is ideal for high-pressure and temperature applications. Forged Ball Valve is generally used in several industries including oil & gas, refining and petrochemicals, marine, pulp and paper, and mining.
Features:
Large robust lockable handle
3-Piece Construction
Graphite Packing
The products of our company are quality assured and tested at every stage by our experts. These are the best for your use. Contact us and get our products today.

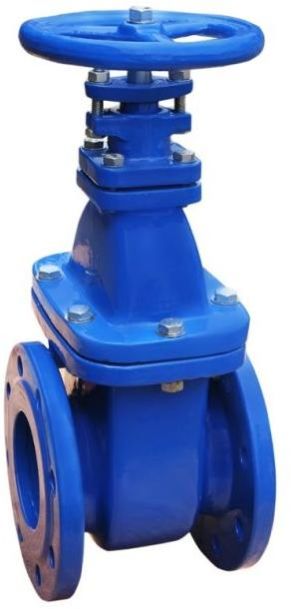

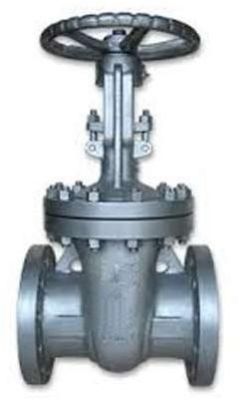

Metflow Engineers is the best gate Valves Supplier in Gujarat. Gate Valves are a superior product in the Metal Market. These Gate Valves come in various sizes, shapes, and dimensions and can be modified to match our customers' specific requirements.
Strong Valves sells and distributes Gate valves that have been thoroughly tested. Gate Valves at Metflow Engineers are subjected to many toughness and hardness tests before being distributed to our customers. Our Gate Valves and various variants are manufactured in India under international standards.
Our high-quality Gate valves are intended explicitly for the petrochemical sector, chemical industries, steel factories, fire prevention systems, and shipping industries, among other applications. Gate Valves, and their various varieties, are created and developed to meet international quality standards.
Get our products today.
Standard Materials
Parts | Materials | ||
---|---|---|---|
Body | WCB | CF8 | CF8M |
Bonnet | WCB | CF8 | CF8M |
Stem | SS 410 | SS 304 | SS 316 |
Wedge | CA 15 or 13Cr faced | CF8 | CF8M |
Seat | 13% Cr. or Steel | CoCr Alloy Faced | CoCr Alloy Faced |
Packing Flanged | Carbon Steel | Stainless steel | Stainless Steel |
Gland Bushing | Carbon Steel | Stainless steel | Stainless steel |
Packing ring | Graphite | ||
Gland Stud | Gr. B7 | Gr. B8 | B8M |
Gland Nut | Gr.2H | Gr.8 | Gr.8M |
Boby/Bonnet Nut | Gr.2H | Gr.8 | Gr.8M |
Body/Bonnet Stud | Gr.B7 | Gr.B8 | B8M |
Back Seat | SS 410 | SS 304 | SS 316 |
Gasket | Class 150: Corrugated Steel / Graphite Class 300 - 1500: Spiral Stainless Steel / Graphite |
||
Key | Carbon Steel | ||
Yoke Bushing | Carbon Steel | Stainless Steel | Stainess Steel |
Handwheel Nut | Malleable Iron or Steel | ||
Handwheel | Malleable Iron or Ductile Iron | ||
Name Plate | Stainless Steel | ||
Stem Nut | A 439 Austenitic Ductile Iron Gr. D-2c |
Design Specifications
Item | Applicable STD. |
---|---|
Wall thickness and general design = NPS 24 | API 600, ISO 10434 |
Wall thickness and general design > NPS 24 | ASME B16.34 |
Pressure Temperature Rating | ASME B16.34 |
Face-to-Face dimensios for butt weld and flanged valves | ASME B16.10 |
Testing Standard | API 598 |
Flange Design | ASME B16.5 |
Butt Welding Design | ASME B16.25 |
Materials | ASTM |
ANSI Class 150
Dimensional Details As Per ANSI 150 # Class | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Size | 2" | 2 1/2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
F to F | 178 | 191 | 203 | 229 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 |
OD | 150 | 180 | 190 | 230 | 280 | 345 | 405 | 485 | 535 | 595 | 635 | 700 | 815 |
THK | 17.5 | 20.7 | 22.3 | 22.3 | 25.4 | 28.6 | 30.2 | 31.8 | 33.4 | 35 | 38.1 | 41.3 | 46.1 |
RFD | 92 | 105 | 127 | 157 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 |
PCD | 121 | 139.7 | 152 | 191 | 241 | 299 | 362 | 432 | 476 | 540 | 578 | 635 | 749 |
od | 19.1 | 19.05 | 19.1 | 19.1 | 22.2 | 22.2 | 25.4 | 25.4 | 28.6 | 28.6 | 31.8 | 31.8 | 34.9 |
NOH | 4 | 4 | 4 | 8 | 8 | 8 | 12 | 12 | 12 | 16 | 16 | 20 | 20 |
ANSI Class 300
Dimensional Details As Per ANSI 300 # Class | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Size | 2" | 2 1/2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
F to F | 216 | 241 | 282 | 305 | 403 | 419 | 457 | 501 | 762 | 838 | 914 | 990 | 1143 |
OD | 165 | 190 | 210 | 255 | 320 | 380 | 445 | 520 | 585 | 650 | 710 | 775 | 915 |
THK | 20.7 | 23.9 | 27 | 30.2 | 35 | 39.7 | 46.1 | 49.3 | 52.4 | 55.6 | 58.8 | 62 | 68.3 |
RFD | 92 | 105 | 127 | 157 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 |
PCD | 127 | 149.2 | 168 | 200 | 270 | 330 | 387 | 451 | 514 | 572 | 629 | 686 | 813 |
od | 19.1 | 22.2 | 22.2 | 22.2 | 22.2 | 25.4 | 28.6 | 31.8 | 31.8 | 34.9 | 34.9 | 34.9 | 41.3 |
NOH | 8 | 8 | 8 | 8 | 12 | 12 | 16 | 16 | 20 | 20 | 24 | 24 | 24 |

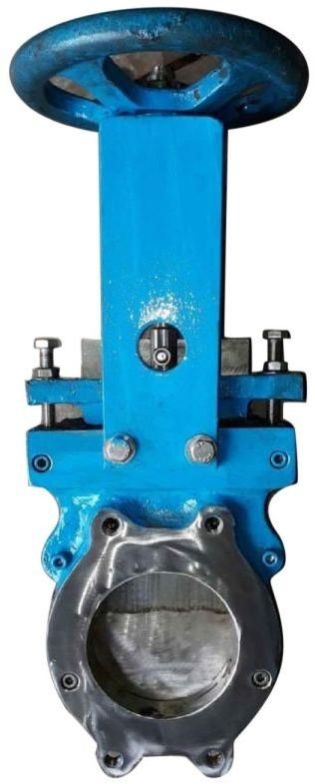

Metflow Engineers is one of the acknowledged pulp valve exporters and manufacturers in India. Quality being the major concern of our organization, we keep a stringent check on the production, packaging and delivery processes.
Therefore, our esteemed customers regard us as one of the best plug valve suppliers in India. Designed and developed using the best quality material, we pack them meticulously to ensure hassle-free deliveries. In addition to this, we make sure that only premium material is used for packaging.
Metflow Engineers is a key supplier in many pulp and paper industry manufacturers. Our industrial-grade valves fit the pulp and paper requirements and satisfy many standards. The pulp and paper industry demands the most reliable and strongest flow control valves and actuators.
Get the best products from our company. Contact us and get the products from us today.
Standard Materials
Body Parts Name | M.O.C of Parts |
---|---|
Body | CI / WCB / CF8 / CF8M |
Gate | AISI 304 / AISi 316 |
Seat | Metal to Metal |
Packing | PTFE Impreg / Synth / Fibre |
Gland Follower | Ductile Iron |
Stem | AISI 304 |
Stem Nut | Gun Metal |
Yoke | Carbon Steel |
Seat Ring | AISI 304 / AISI 316 |
Handwheel | 310: Ductile Iron / > 410: Gji 250 (Gg25) |
Fasteners | Zinc Plated Carbon Steel |

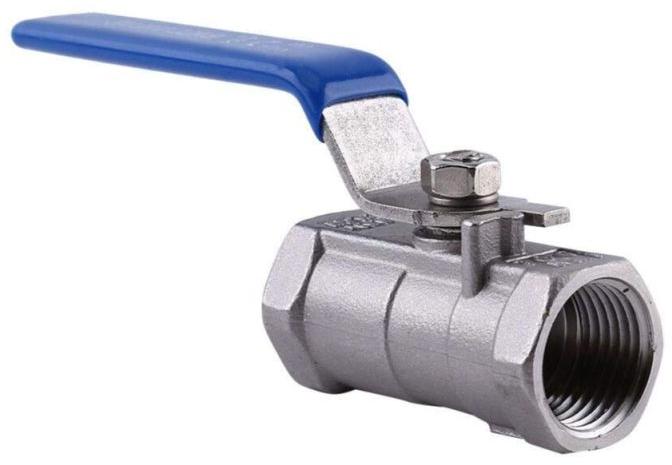

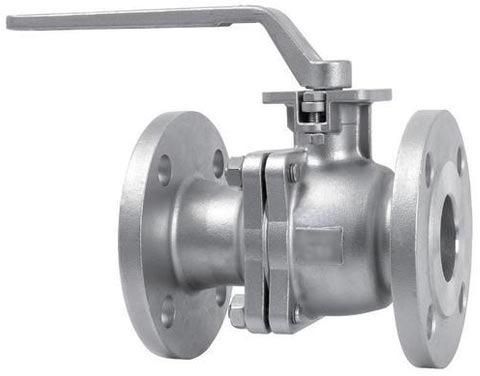

Metflow Engineers is the best Ball Valve supplier in Ahmedabad. Our corrosion-resistant ball valves have been designed by a team of expert engineers with years of experience in the field. These valves can easily tolerate heavy loads, and therefore, they have applications in various fields including Pharma, Refining, Nuclear, Petrochemicals, and other industry verticals.
Our products are manufactured using only high-quality graded materials, resulting in outstanding levels of customer satisfaction. We have established ourselves as one of the most preferred suppliers of ball valve systems because of our quality and we promise to manufacture all valves exactly to their requirements & demands.
We have approvals for the ball valve from API 6D & PED. We also always accept third-party inspection (TPI) from customers for their satisfaction and until the product does not fulfil all criteria, we do not deliver it to our customers.
Get the best services from us today.
Standard Materials
Parts | Materials | ||
---|---|---|---|
Body & Side Piece | WCB | CF8 | CF8M |
Ball | WCB + ENP / CF8 / CF8M | CF8 / CF8M | CF8M |
Stem | SS 410 / 17-4 PH / SS 304 / SS 316 | SS 304 | SS 316 |
Seat Seal | PTFE / CFT / GFT / VITON | ||
Gasket | PTFE / CFT / GFT / VITON / SPIRAL WOUND | ||
Packing Flanged | PTFE / CFT / GFT / VITON / SPIRAL WOUND | ||
Trunnion MOC | AISI 410 / SS 304 / SS 316 | SS 304 / SS 316 | SS 316 |
Body / Side Piece Nut | GR. 2H | GR. 8 | GR. 8M |
Body / Side Piece | GR. B7 | GR. B8 | B8M |
Lever | SS | ||
Name Plate | STAINLESS STEEL / ALLUMINIUM |
Design Specifications
Item | Applicable STD |
---|---|
Design Standard | API 6D / BS 5351 |
Fire Safe Standard | API 607 / API 6FA |
Pressure Temperature Rating | ASME B16.34 |
Face-to-Face Dimensios | ASME B16.10 |
Testing Standard | API 598 / BS 6755 |
Flange Design | ASME B16.5 |
Butt Welding Design | ASME B16.25 |
Materials | ASTM |
ASME Class 150
Size | ASME Class 150 | ||||||
---|---|---|---|---|---|---|---|
DN | F to F | Flange Dia | RFD | THK | PCD | Hole Dia | No. of Hole |
15 | 108 | 90 | 35 | 9.6 | 60.3 | 15.9 | 4 |
20 | 117 | 100 | 43 | 11.2 | 69.9 | 15.9 | 4 |
25 | 117 | 100 | 43 | 12.7 | 79.4 | 15.9 | 4 |
32 | 140 | 115 | 64 | 14.3 | 88.9 | 15.9 | 4 |
40 | 165 | 125 | 73 | 15.9 | 98.4 | 15.9 | 4 |
50 | 178 | 150 | 92 | 17.5 | 120.7 | 19.05 | 4 |
65 | 190 | 180 | 105 | 20.7 | 139.7 | 19.05 | 4 |
80 | 203 | 190 | 127 | 22.3 | 152.4 | 19.05 | 4 |
100 | 229 | 230 | 157 | 22.3 | 190.5 | 19.05 | 8 |
150 | 267 | 280 | 216 | 23.9 | 214.3 | 22.22 | 8 |
200 | 292 | 345 | 270 | 27 | 298.5 | 22.22 | 8 |
250 | 330 | 405 | 324 | 28.6 | 362 | 25.4 | 12 |
300 | 356 | 485 | 381 | 30.2 | 431.8 | 25.4 | 12 |
ASME Class 300
ASME Class 300 | |||||||
---|---|---|---|---|---|---|---|
DN | F to F | Flange Dia | RFD | THK | PCD | Hole Dia | No. of Hole |
15 | 140 | 95 | 35 | 12.7 | 66.7 | 15.9 | 4 |
20 | 152 | 115 | 43 | 14.3 | 82.6 | 19.05 | 4 |
25 | 165 | 125 | 51 | 15.9 | 88.9 | 19.05 | 4 |
32 | 178 | 135 | 64 | 17.5 | 98.4 | 19.05 | 4 |
40 | 190 | 155 | 73 | 19.1 | 114.3 | 22.22 | 4 |
50 | 216 | 165 | 92 | 20.7 | 127 | 19.05 | 8 |
65 | 241 | 190 | 105 | 23.9 | 149.2 | 22.22 | 8 |
80 | 282 | 210 | 127 | 27 | 168.3 | 22.22 | 8 |
100 | 305 | 255 | 157 | 30.2 | 200 | 22.22 | 8 |
150 | 403 | 320 | 216 | 35 | 269.9 | 22.22 | 12 |
200 | 502 | 380 | 270 | 39.7 | 330.2 | 25.4 | 12 |
250 | 568 | 445 | 324 | 46.1 | 387.4 | 28.57 | 12 |
300 | 648 | 520 | 381 | 49.3 | 450.8 | 31.75 | 12 |
ASME Class 600
ASME Class 600 | |||||||
---|---|---|---|---|---|---|---|
DN | F to F | Flange Dia | RFD | THK | PCD | Hole Dia | No. of Hole |
15 | 165 | 95 | 35 | 14.3 | 66.7 | 15.9 | 4 |
20 | 190 | 115 | 43 | 15.9 | 82.6 | 19.05 | 4 |
25 | 216 | 125 | 51 | 17.5 | 88.9 | 19.05 | 4 |
32 | 229 | 135 | 64 | 20.7 | 98.4 | 19.05 | 4 |
40 | 241 | 155 | 73 | 22.3 | 114.3 | 22.22 | 4 |
50 | 292 | 165 | 92 | 25.4 | 127 | 19.05 | 8 |
65 | 330 | 190 | 105 | 28.6 | 149.2 | 22.22 | 8 |
80 | 356 | 210 | 127 | 31.8 | 168.3 | 22.22 | 8 |
100 | 432 | 275 | 157 | 38.1 | 215.9 | 25.4 | 8 |
150 | 559 | 355 | 216 | 47.7 | 292.1 | 28.57 | 12 |
200 | 660 | 420 | 270 | 55.6 | 349.2 | 31.75 | 12 |
250 | 787 | 510 | 324 | 63.5 | 431.8 | 34.92 | 16 |
300 | 838 | 560 | 381 | 66.7 | 489 | 34.92 | 20 |
Features :
Standard Materials
Parts | Materials | ||
---|---|---|---|
Body | WCB | CF8 | CF8M |
Closure Plate | WCB / SS 304 / SS 316 | CF8 | CF8M |
Seat Ring | PTFE / Metal to Metal | ||
Spring | SS 202 / SS 304 / SS 316 | SS 304 / SS 316 | SS 316 |
Hinge Pin | AISI 410 / SS 304 / SS 316 | SS 304 / SS 316 | SS 316 |
Specifications
Item | Applicable STD. |
---|---|
Wall thickness and general design ≤ NPS 24 | API 600, ISO 1868 |
Wall thickness and general design > NPS 24 | ASME B16.34 |
Pressure Temperature Rating | ASME B16.34 |
Face-to-Face dimensios for butt weld and flanged valves | ASME B16.10 |
Testing Standard | API 598 |
Flange Design | ASME B16.5 |
Butt Welding Design | ASME B16.25 |
Materials | ASTM |
ASME Class 150
Size | ASME Class 150 | ||
---|---|---|---|
DN | L | ⌀C | ⌀D |
50 | 60 | 60 | 101 |
65 | 67 | 73 | 120 |
80 | 73 | 89 | 133 |
100 | 73 | 114 | 171 |
125 | 86 | 141 | 193 |
150 | 98 | 168 | 218 |
200 | 127 | 219 | 276 |
250 | 146 | 273 | 336 |
300 | 181 | 324 | 406 |
350 | 184 | 356 | 447 |
400 | 191 | 406 | 511 |
450 | 203 | 457 | 546 |
500 | 219 | 508 | 603 |
600 | 222 | 610 | 714 |
ASME Class 300
Size | ASME Class 300 | ||
DN | L | ⌀C | ⌀D |
50 | 60 | 60 | 107 |
65 | 67 | 73 | 127 |
80 | 73 | 89 | 145 |
100 | 73 | 114 | 177 |
125 | 86 | 141 | 212 |
150 | 98 | 168 | 247 |
200 | 127 | 219 | 304 |
250 | 146 | 273 | 358 |
300 | 181 | 324 | 419 |
350 | 222 | 356 | 482 |
400 | 191 | 406 | 536 |
450 | 264 | 457 | 593 |
500 | 292 | 508 | 650 |
600 | 318 | 610 | 771 |
ASME Class 600
Size | ASME Class 300 | ||
---|---|---|---|
DN | L | ⌀C | ⌀D |
50 | 60 | 60 | 107 |
65 | 67 | 73 | 127 |
80 | 73 | 89 | 145 |
100 | 73 | 114 | 177 |
125 | 86 | 141 | 212 |
150 | 98 | 168 | 247 |
200 | 127 | 219 | 304 |
250 | 146 | 273 | 358 |
300 | 181 | 324 | 419 |
350 | 222 | 356 | 482 |
400 | 191 | 406 | 536 |
450 | 264 | 457 | 593 |
500 | 292 | 508 | 650 |
600 | 318 | 610 | 771 |

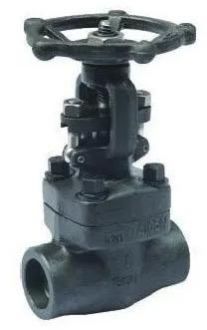

Your search for the best-forged gate Valves Supplier is over with us. Our company Metflow Engineers is the right choice for your needs. Forged steel gate valves are mostly reduced bore design, compared with the same size cast steel gate valve, the amount of flow is slightly smaller, but the pressure and temperature range are higher than the cast steel valve.
Its sealing performance is much better than the cast steel gate valve. It has a longer service life and the flow direction of the medium is not restricted.
Advantages of Forged Steel Gate Valves
Get our products today.
ASME Class 150
Size | F / F | ⌀F | FT | WT (kg) |
---|---|---|---|---|
15 mm | 108 | 90 | 9.6 | 2.6 |
20 mm | 117 | 100 | 11 | 3.5 |
25 mm | 127 | 110 | 13 | 5.1 |
32 mm | 140 | 115 | 14 | 8.7 |
40 mm | 165 | 125 | 16 | 9.3 |
50 mm | 178 | 150 | 18 | 15 |
ASME Class 300
Size | F / F | ⌀F | FT | WT (kg) |
---|---|---|---|---|
15 mm | 140 | 95 | 13 | 3.2 |
20 mm | 152 | 115 | 14 | 4.7 |
25 mm | 165 | 125 | 16 | 6.5 |
32 mm | 178 | 135 | 18 | 10.5 |
40 mm | 190 | 155 | 19 | 12.1 |
50 mm | 216 | 165 | 21 | 17.2 |
ASME Class 600
Size | F / F | ⌀F | FT | WT (kg) |
---|---|---|---|---|
15 mm | 165 | 95 | 14 | 3.6 |
20 mm | 190 | 115 | 16 | 5.1 |
25 mm | 216 | 125 | 18 | 7.3 |
32 mm | 229 | 135 | 21 | 11.5 |
40 mm | 241 | 155 | 22 | 13.7 |
55 mm | 292 | 165 | 25 | 20 |

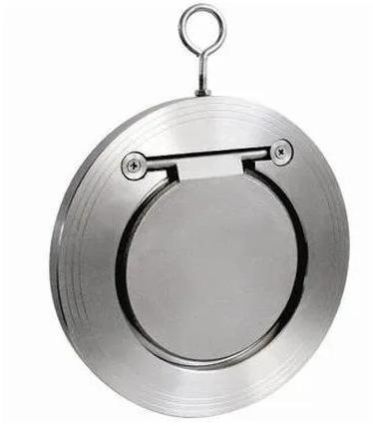

Are you looking for single plate check Valves? You are in the right place. Our company Metflow Engineers is the best.
The single plate check valve is automatically held in a middle position by the flange connection bolts and hex nuts. It uses a swinging plate to prevent return flow in the piping system. The valve design allows them to be fitted in a tight space.
The flow is restricted within the valve body because the flange connection is in place and there is not much room for the plate to open in the pipeline. The valve requires a low opening pressure to allow fluid to flow through. The valve is at the closing position and sealed with O-ring if the initial pressure is higher than the entrance pressure.
Get the best check Valves from us today.
Material Description
Description | Material | Standard |
---|---|---|
Body | SS304 | ASTM A276 |
O Ring | EPDM | EN681 |
Disc | SS316 | ASTM A276 |
O Ring | EPDM | EN681 |
Eye Bolt | SS304 | ASTM A276 |
Gasket | SS304 | ASTM A276 |
Screw | SS304 | ASTM A276 |
Dimensions
DN | A | B | C | D | E | F | G |
---|---|---|---|---|---|---|---|
32 | 85 | 15 | 18 | 57 | 20.5 | 26 | 2 |
40 | 95 | 16 | 22 | 69.4 | 26 | 28.5 | 1.5 |
50 | 109 | 14 | 32 | 82.8 | 38 | 28.8 | 3.2 |
65 | 129 | 14 | 40 | 106 | 46 | 31 | 3.5 |
80 | 144 | 14 | 54 | 116 | 56 | 32.5 | 3.5 |
100 | 164 | 18 | 70 | 143 | 75 | 31 | 6 |
125 | 195 | 18 | 92 | 170 | 96 | 35.3 | 7.5 |
150 | 220 | 20 | 112 | 194 | 113 | 35.5 | 8 |
200 | 275 | 22 | 154 | 252 | 151 | 38.5 | 11 |
250 | 330 | 26 | 192 | 308 | 195 | 41 | 13 |
300 | 380 | 32 | 227 | 359 | 229 | 41 | 20 |
350 | 440 | 38 | 266 | 411 | 254 | 55 | 16 |
400 | 491 | 44 | 310 | 462 | 291 | 55.5 | 19 |
450 | 541 | 52 | 350 | 515 | 325 | 61 | 19 |
500 | 596 | 58 | 400 | 545 | 545 | 58 | 545 |
600 | 698 | 62 | 486 | 655 | 446 | 60 | 28 |
Your search for the best wholesale Butterfly valves supplier is over with us. Our company Metflow Engineers is the right choice. Butterfly valves are a popular choice because they are easy to install, very inexpensive and are available in almost all sizes. These are usually used in regulation services and for on-off purposes.
Butterfly Valve Applications
Butterfly valves are important to processes and operations in many different industries. This is because of their range in size and their ability to control the flow of liquids, gases, and slurries. Not only can butterfly valves stop or start the flow, but when partially opened, they can also limit or reduce flow as desired.
Customers from many industries purchase butterfly valves, including those in food processing (liquid), waterworks, irrigation, pipe fabrication, industrial manufacturing, heating systems, and chemical transport.
Order our products today.
Standard Materials
Parts | Materials | |||
---|---|---|---|---|
Body & Side Piece | CI | WCB | CF8 | CF8M |
Disc | CI / WCB / CF8 / CF8M | WCB / CF8 / CF8M | CF8 / CF8M | CF8M |
Stem | SS 410 / 17-4 PH / SS 304 / SS 316 | SS 410 / 17-4 PH / SS 304 / SS 316 | SS 304 | SS 316 |
Lining | EPDM / NITRILE / VITON / PTFE / PFA | |||
Stem Packing | NBR / VITON / PTFE | |||
Lever | IC CASTED, IN ALL MOC | |||
Stud - Nut | GR. B7 / 2H | GR. B7 / 2H | GR. 8 | GR. 8M |
Anme Plate | Stainless Steel / Alluminium |
Specifications
Item | Applicable STD |
---|---|
Design Standard | API 6D / BS 5351 |
Fire Safe Standard | API 607 / API 6FA |
Pressure Temperature Rating | ASME B16.34 |
Face-to-Face Dimensios | ASME B16.10 |
Testing Standard | API 598 / BS 6755 |
Flange Design | ASME B16.5 |
Materials | ASTM |

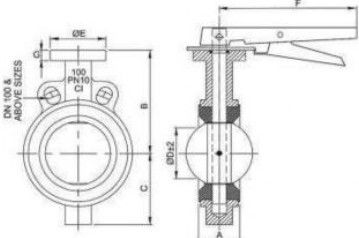

Gear Operated Butterfly Valve : PN 10 / PN 16
DN | A | B | C | D | E | F | G |
---|---|---|---|---|---|---|---|
50 | 43 | 104 | 61 | 28 | 65 | 185 | 15 |
65 | 46 | 111 | 68 | 48 | 65 | 185 | 15 |
80 | 46 | 124 | 75 | 67 | 65 | 230 | 15 |
100 | 52 | 140 | 89 | 88 | 65 | 230 | 15 |
125 | 56 | 158 | 105 | 114 | 65 | 230 | 15 |
150 | 56 | 180 | 120 | 142 | 65 | 265 | 15 |
200 | 60 | 230 | 156 | 194 | 75 | 325 | 15 |
250 | 68 | 566 | 196 | 243 | 75 | 385 | 18 |
300 | 78 | 300 | 230 | 292 | 75 | 385 | 18 |

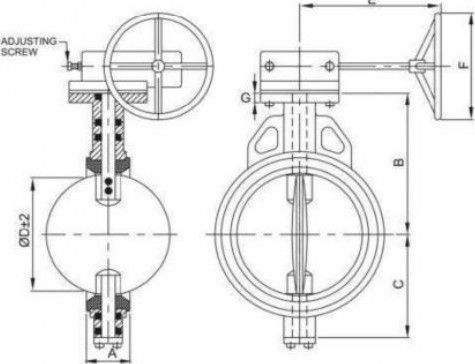

Gear Operated Butterfly Valve : PN 10 / PN 16
DN | A | B | C | D | E | F | G | FLANGE STD. ISO 5211 |
---|---|---|---|---|---|---|---|---|
100 | 52 | 157 | 100 | 88 | 180 | 200 | 15 | F07 |
125 | 56 | 164 | 115 | 114 | 180 | 200 | 15 | F07 |
150 | 56 | 181 | 133 | 142 | 240 | 250 | 15 | F07 |
200 | 60 | 230 | 165 | 194 | 285 | 350 | 15 | F10 |
250 | 68 | 266 | 196 | 243 | 285 | 350 | 18 | F10 |
300 | 78 | 300 | 230 | 292 | 285 | 350 | 18 | F10 |
350 | 92 | 320 | 272 | 330 | 300 | 350 | 22 | F12 |
400 | 102 | 385 | 302 | 375 | 305 | 350 | 22 | F14 |
450 | 114 | 405 | 325 | 425 | 305 | 450 | 25 | F14 |
500 | 127 | 465 | 405 | 470 | 350 | 500 | 26 | F16 |
600 | 154 | 540 | 460 | 570 | 370 | 600 | 26 | F16 |
