Leading Manufacturer, Supplier & Retailer of Case Binding Machine EB - 75, Gluing Machine TG - 55, Semi Automatic Pasting Machine, Rigid Box Corner Tapping Machine and Automatic Stacker.

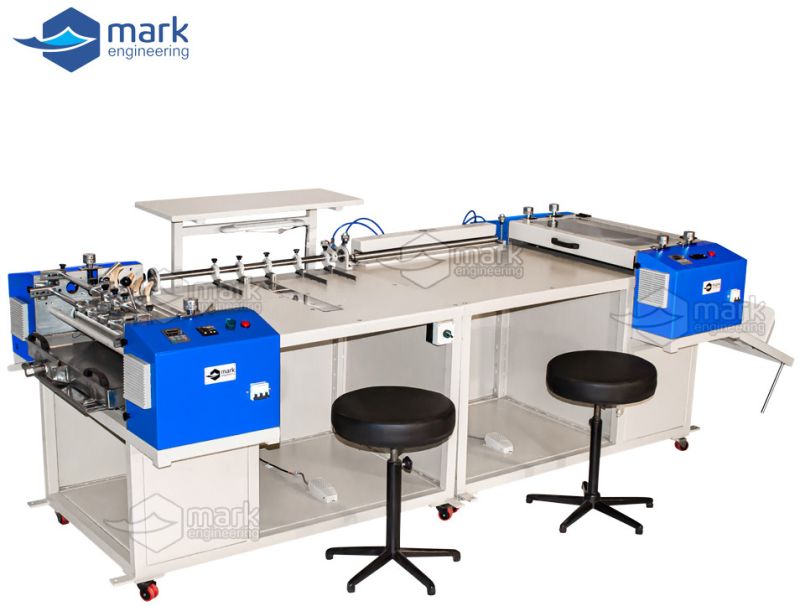

Case Binding Machine EB - 75

Case binding machineMark - Easy Bind 75 is automation to the conventional manual case making process. Easy bind 75 ensures high productivity, superior & uniform case quality throughout the job run. It is redefining case making process in post press. Easy Bind is designed and developed with special concern on higher productivity, simple operation, large variety of jobs, ease of maintenance & most suitable size for binding.

Applications :Case making for hard bound books, diaries, files, registers, notebooks, calendars, clip boards etc. Back to back pasting & pressing for duplex boards, pharmaceutical catalogs and other packaging items.

Case Binding Machine EB - 75 Salient Features

Automatic glue tank temperature control with auto cut off for optimum power use
Sheet counter
Uniform thickness of glue layer on title sheet with easy adjust control
Easy mounting & dismounting of glue tank
Multiple glue tank for different glue (optional)
Precise title and Spine (board) gauging unit up to 4 spines
Easy and rapidly adjustable gauging system
Vacuum table and vacuum blower for easy handling of thin sheets
Short make ready time (Approx. 20 mins for hot glue, immediate for cold glue)
Less than 5 minutes for size changes
PLC program cycle for case making and back to back pasting
Dual speed for turning system, fast and medium speed cycles
Long lasting, high quality PU conveyor belt

Case Binding Machine EB - 75 Applications:

Case binding machine for hard bound books
Case binding machien for diary
Case binding machine for files
Case binding machine for register
Case binding machine for notebook
Case binding machine for calendar
Case binding machine for clip board, exam pad
Case binding machine for pharmaceutical catalog

TECHNICAL DATA (mm)	CASE BIDING MACHINE EB 75	CASE BIDING MACHINE EB 105
Min. case size	150 mm x 150 mm	150 mm x 150 mm
Max. case size	750 mm x 750 mm	1050 mm x 1050 mm
Paper thickness	70 gsm To 170 gsm	70 gsm To 170 gsm
Board thickness	0.5 mm To 5 mm	0.5 mm To 5 mm
Turning in width	15 To 25 mm	15 To 25 mm
Speed*	300 case/hr depending upon case size, material	300 case/hr depending upon case size, material
Glue type	Hot / Cold	Hot / Cold
Pneumatic pressure	6 - 8 bar	6 - 8 bar
Power	3.5 HP for 2 AC motors, 3 kW for heater	3.5 HP for 2 AC motors, 4 kW for heater
Materials	Paper, laminated, paper, plastic coated paper, cloth	Paper, laminated, paper, plastic coated paper, cloth
Floor space**	1200 mm (L) x 3600 mm (W) x 1500 mm (H)	1500 mm (L) x 3600 mm (W) x 1500 mm (H)
1 HP air compressor	to be provided by client	to be provided by client

View Complete Details

Ask Latest Price & Details

Gluing Machine TG - 55

Top gluing machine TG 55 is Two roller top side gluing machine for cold glue. The indigenously designed roller and bottom plate design enables pasting on 70 gsm to 1000 gsm thick paper sheets in same settings. The new TG 55 can glue up to 10 mm thick boards. Glue and feed rollers are easily detachable for cleaning of the machine. TG 55 is virtually maintenance free. Hot glue option available in bottom gumming machine (HG 55).

Application :Back to back pasting jobs, Album making, Board Laminating

Gluing Machine Salient Features

Heavy duty frame structure and wall
Smooth AC drive with variable roller speed
Indigenous roller & returner blade design to carry pasting on 0.07 to 1.0 mm thick materials
Easily removable feed roller and glue roller system to provide full space for cleaning
Glue tank above gluing rollers with knob for required continuous glue input.
Adjustable glue thickness with precise self alignment roller
100 Micron thick hard chrome plated roller/ Stainless Steel rollers (Optional)
Easily removable bottom tray for excess glue collection and reuse.
Best quality control panel components used

Gluing Machine Applications:

Gluing machine for wedding card papers
Glunig machine for tag manufacturing
Gluing machine for back to back pasting
Gluing machine for album making
Gluing machine for board to board pasting
Gluing machine for jewlery box making
Gluing machine for velvet box making
Gluing machine for box making

Hot Melt Top Gluing Machine: (Optional Attachment) Salient Features

Top Gluing Machine TG-55 integrated with optional circulating hot melt attachment for high quality results for making high end and expensive products
Precise digital glue temperature controller
Dual tank heating system for indirect and uniform heating of glue
Inbuilt system for cold glue applications
Very easy cleaning system of rollers
Integrated with high quality & durable piping system for hot glue

Hot Melt Top Gluing Machine Applications:

Hot melt top gluing machine for wedding card papers
Hot melt top glunig machine for tag manufacturing
Hot melt top gluing machine for back to back pasting
Hot melt top gluing machine for album making
Hot melt top gluing machine for board to board pasting
Hot melt top gluing machine for jewlery box making
Hot melt top gluing machine for velvet box making
Hot melt top gluing machine for box making

TECHNICAL DATA (mm)	TOP GLUING TG 55	TOP GLUING TG 75
Max. paper size	500 mm (W) x 810 mm (L)	750 mm (W) x 810 mm (L)
Min. paper size	60 mm (W) x 150 mm (L)	60 mm (W) x 150 mm (L)
Paper thickness	70 gsm To 170 gsm	70 gsm To 170 gsm
Type of glue	Cold	Cold
Motor power	1 HP AC variable drive	1 HP AC variable drive
Max. Speed*	45 m/min	45 m/min
Materials	Paper, laminated paper, plastic coated paper, cloth etc.	Paper, laminated paper, plastic coated paper, cloth etc.
Floor space**	2000 mm (L) x 1000 mm (W) x 1200 mm (H)	2000 mm (L) x 1200 mm (W) x 1200 mm (H)
Hot glue option available in bottom gumming machine. Model: HG 55
