1 Products availableWe are leaders in the market for providing best range of SS 304 Eye Link Conveyor Belt, Stainless Steel food processing Conveyor Belt, Stainless steel Curved mesh Conveyor Belt and enrober conveyor belt
Eye link conveyor belts are specially designed for applications requiring an extremely rugged structure and long service life.It is also known as eye flex belt, With larger open areas, eye flex conveyor belts are generally used in chemical industry, steel industry and food industry such as drying, washing, baking, pasteurizing, frying, freezing and cooling, etc.
Features
Eye flex conveyor belts can be manufactured with various styles of eye-links: eye flex belt without spacer, eye flex belt with under welded spacing, eye flex belt with rings as spacers and eye flex belt with springs as spacers as shown in the following pictures:
Additional Information:
Payment Terms : L/C
Packaging Details : Wooden package
Delivery Time : 30 Days
Additional Information:
Payment Terms : L/C
Packaging Details : Wooden box package
Delivery Time : 2 weeks

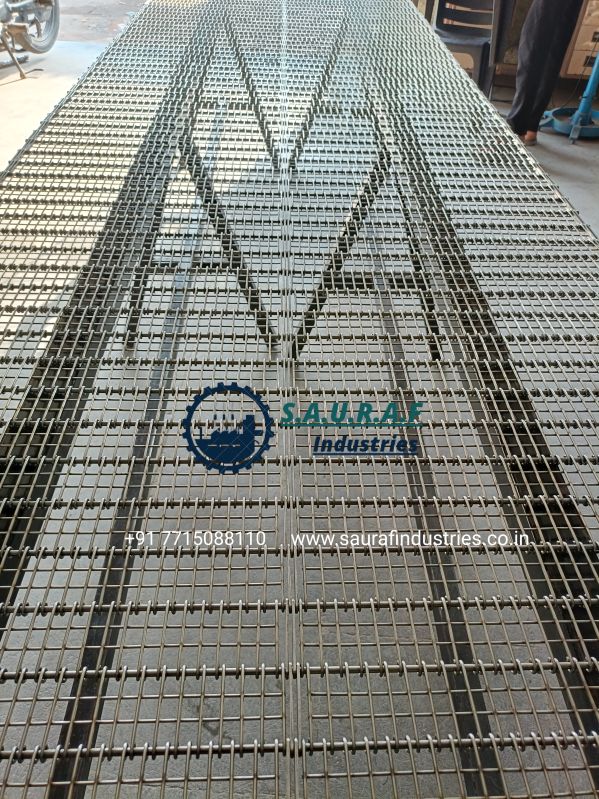

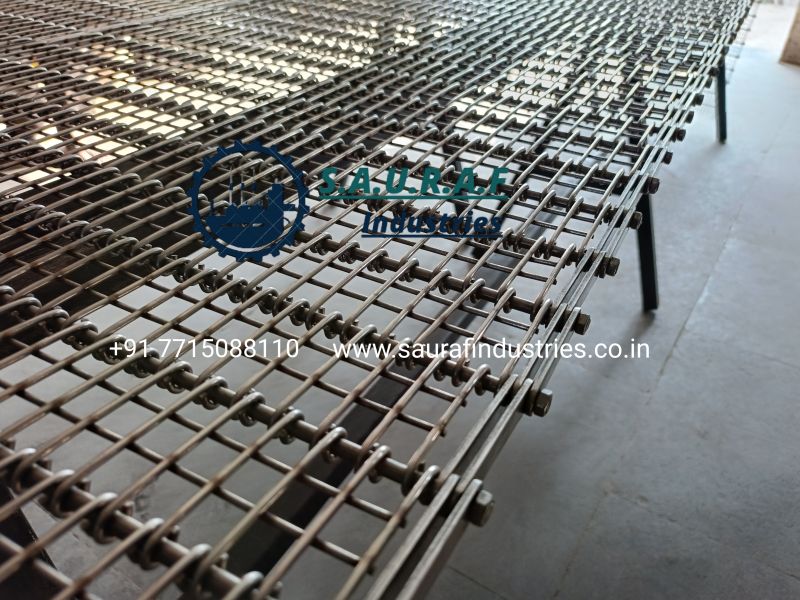

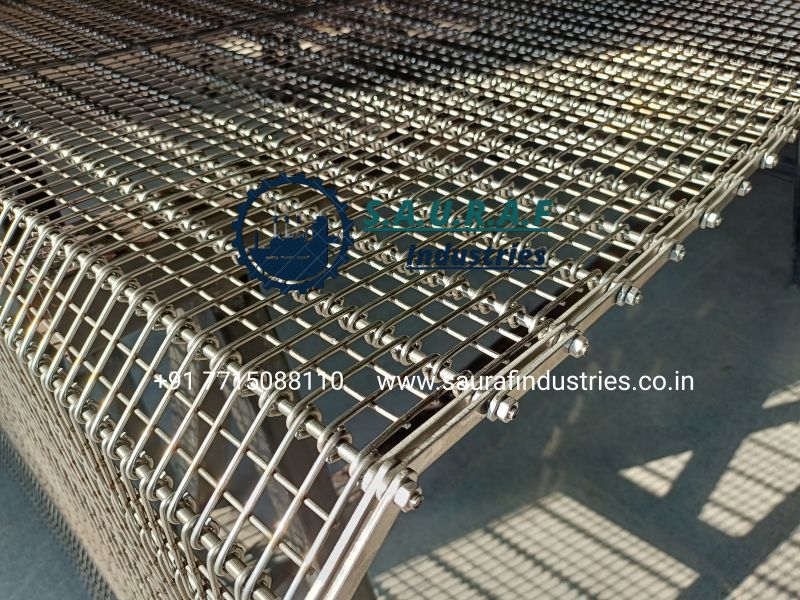

The ladder conveyor belts are composed of cross rods jointed by S - shaped hooks chain links and U -shaped links. The belts with links are secured by welding a ring to the cross rod for containing the integrity of the ladder conveyor belts.
Material : steel, stainless steel 304, 316 or other materials as your request. Speed : from less than 1 m/min to 20 m/min. (High speed quick may affect the longevity of the conveyor belt)
Application :Ladder conveyor belts are available in straight types and curved types with a fixed inside radius
Additional Information:
Payment Terms : L/C
Packaging Details : Wooden box
Delivery Time : 21 days
Technical Specification
Properties | Ladder belt with S-shaped hook | Ladder belt with chain links | Ladder belt with U-shaped links |
Pitch | 1/2" to 4" | 1" to 3" | 3/4", 1" and 1-1/13" |
Width | 20mm to 1500mm | 25mm to 2000mm | 80mm to 2000mm |
Diameter of cross rod | 2mm to 8mm | 4mm to 20mm | 5mm |
Application | Running in straight & curved applications | Only running in straight application | Running in straight & curved applications |

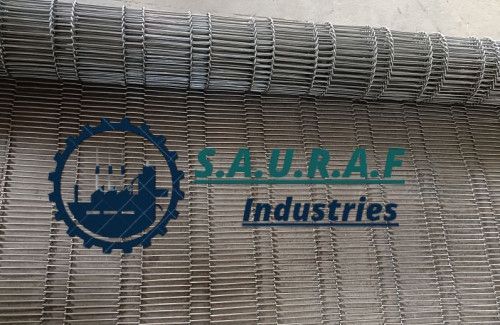

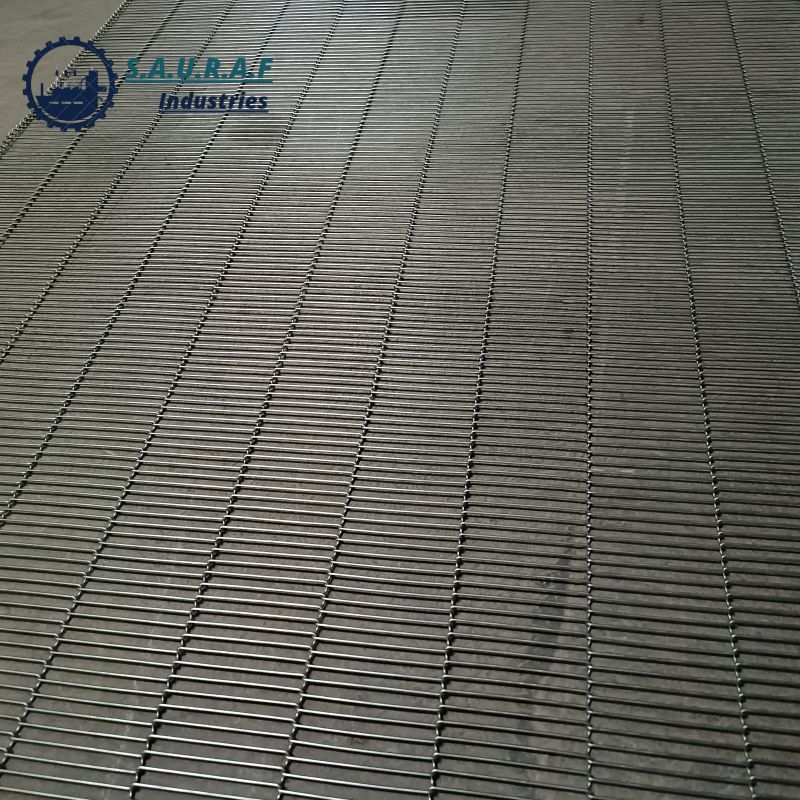

Rod network belts, also known as enrober conveyor belts or flat flex conveyor belts, feature specially designed "Z-bend" joints in the wire mesh. They are perfect for transporting light and medium weight products in food processing industries.
Features :
Belt Edge
Rod network conveyor belts can be manufactured with three types of bending end: single loop edge, double loop edge and C-shaped loop edge.
Details :
