Our Products
Water Treatment & Purification Plant
2 Products availableFilter Press
1 Products availableMbbr Media
1 Products availableColored Plastic Sheet
1 Products availableFashion Jewelry
1 Products availableWater Aeration System
1 Products availableFilter Media
1 Products availablePlant Maintenance Service
1 Products available
By keeping records of the clients' requirements, we have developed a system that offers several options for transferring money from one end to another. We keep the finished assortment of products in highly developed and spacious space. This helps us in keeping products secure and sorted. Our advanced sewage treatment plant is designed for easy installation, superior performance, convenient operation and low maintenance.

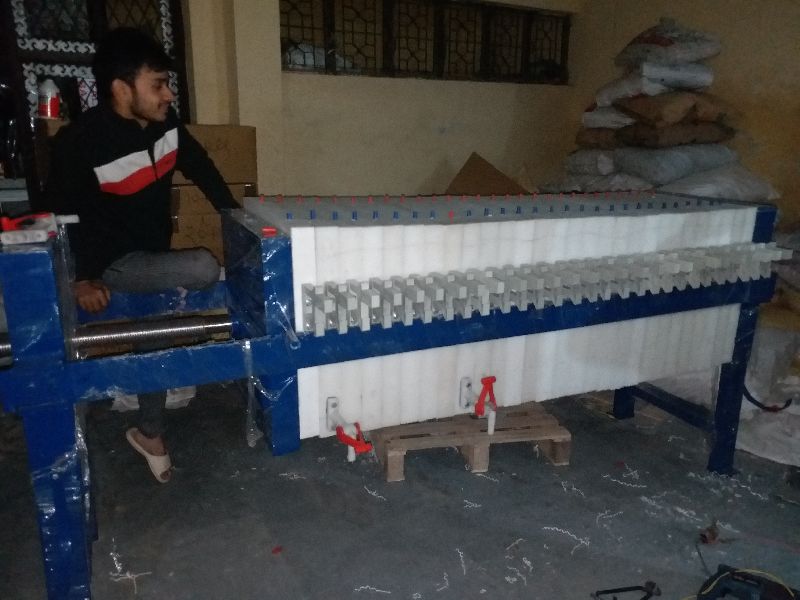

we are manufacturer of filter press manufacture and hydrophilic type
size available 12
18x18
24x24 and more size
We are big manufacturer of MBBR Media, Tube settler Media, Air Diffuser and Filter Press in alll size in Okhla Industial area Phase - 1 New Delhi
Additional Information:
Payment Terms : L/C, T/T
Delivery Time : Ready Stock
| Surface Area Calculation |
| |||||||
| Parameter | Unit(mm) | |||||||
| Average Height | 10.76 | |||||||
| Average Dia Height | 26.45 | |||||||
| Average Inner Barrier | 3 | |||||||
| Average Outer Barrier | 4 | |||||||
| Average Thickness of Barrier | 0.4 | |||||||
| Average Outer Shell Thickness | 0.416 | |||||||
| Average middle Shell Thickness | 0.47 | |||||||
| Average Inner Shell Thickness | 0.33 | |||||||
| Outer Shell surface area |
|
|
|
|
|
| ||
| circumference height | 894.463429 | Mm2 |
|
|
|
| ||
| Outer Shell Inner Side Area | 814.679566 | Mm2 |
|
|
|
| ||
| Middle Shell Out Side Area | 544.142423 | Mm2 |
|
|
|
| ||
| Middle Shell Inner Side Area | 538.178309 | Mm2 |
|
|
|
| ||
| Inner Shell outer side | 335.275451 | Mm2 |
|
|
|
| ||
| Inner Shell Inner side | 338.780137 | Mm2 |
|
|
|
| ||
| Area of Barriers |
|
|
|
|
|
| ||
| Outer Barriers | 1032.96 | Mm2 |
|
|
|
| ||
| Inner Barriers | 387.86 | Mm2 |
|
|
|
| ||
| Flat Dimensions area for 2 sides |
|
|
|
|
|
| ||
| Outer Circle | 68.0751909 | Mm2 |
|
|
|
| ||
| Middle Circle | 50.6600914 | Mm2 |
|
|
|
| ||
| Inner Circle | 21.4647086 | Mm2 |
|
|
|
| ||
| Total Surface Area per pcs | 5026.03931 | Mm2 |
|
|
|
| ||
| Total Unprotected surface area | 1034.66342 | Mm2 |
|
|
|
| ||
| Protected Surface Area | 3991.37589 |
|
|
|
|
| ||
| PSA/TSA | 0.79413941 | Say 85% |
|
|
|
| ||
| No of PCs/cbm | 107280 |
|
|
|
|
| ||
| Surface Area Per CBM | 589.193497 | M2 |
|
|
|
| ||
Additional Information:
Payment Terms : L/C
Packaging Details : GUNNY BAG WITH 10 KG WEIGHT
Delivery Time : READY STOCK
We always remain concerned about delivering a flawless range of products and thus we store the entire lot under secured environment till the final dispatch of the orders. Raw material that is used for preparing the offered lot is sourced from the genuine vendors. Also, we procure it only after complete quality inspection. Our sturdy PVC settler media is available in various thicknesses ranging from 0.4mm to 0.8mm.
Technical Details
Model |
bi-tsm-99 |
|---|---|
| Plan settling area of media | 12 m2/m3 (600 slope) |
| Laying angle | 60 deg. from horizontal |
| Structure | Hexagonal chevron |
| Straight height of media | 750 mm & 1000 mm |
| Moc of media | Pvc |
| Thickness | 1.0 mm |
| Fitting arrangement | Tongue & groove |
| Cross sectional area | 75 mm x 60 mm |
| Max continuous operating temperature | 550 celsius |
| Actual plan area of each tube settler | 68.72 m2 |
| Colour | Black |
| Settling velocity | 0.50 m/sec |
| Slr | 1.70 m3/m2.hr |
| Angle correction | 0.43 m |
| Width of inlet launder | 0.30 m |
| Hobie slope | 50.0 degrees |
| Total no. of hoopers | 4 |
| Weir loading rate | 120 m3/m-day |
| Total weir length | 16.67 m |
Our company offers convenient payment choices. We are well versed with diverse payment methods. Whether online or offline, patrons can make payments as per their convenience. Our organization has a devoted quality regulation section to make sure our entire range is according to global quality management standards. Our super durable tube settler media is available in various diameters ranging from 25mm to 80mm.
Technical Details
| Model | bi-tsm-120 |
|---|---|
| Plan settling area of media 600 slope 550 slope |
|
| Cross sectional area | 120 mm x 44 mm |
| Shape | Hexagonal chevron |
| Hydraulic radius | 1.5 cm |
| Moc of media | Pvc |
| Thickness |
mm (+/- 0.1 mm) |
| Fitting arrangement | Tongue & groove |
| Max continuous operating temperature | 550 celsius |
| Colour | Black |
| Distance between adjacent tubes Horizontal vertical |
|
| Weight | 60.0 kg/m3 (abirox.) |
| Separator heights 500 mm 1000 mm other height |
|
We are a leading name offering the best in class and qualitative array of Trickling Filter Media. With complete security system and with the help of the leading technologies, we make it possible to make payments online. Fret not! We ensure that all the details are kept confidential and are not shared with the third party. Trickling filter media is widely used in various purposes like nitrification, de-nitrification, odour scrubbing, anaerobic treatment, etc.
Additional Information:
Delivery Time : Ready Stock
By employing impurities-free raw materials, our entire array of products is produced. We, as a trusted name, procure these raw materials only from reliable sources of the market. Our complete range of products is subjected to stringent quality tests to ensure they are as per norms of international management systems.
Sizes Available :
Owing to a vast experience, we have emerged as a paramount Manufacturer and Supplier of Pall Ring Media. We carry out our operations from New Delhi, India. Our offered Pall Ring Media is cylindrical in shape. It has a diameter of 42 MM and length of 44MM. Our Pall Ring Media is renowned for its precise dimensions, durability, great performance, and long operational life. The production of Pall Ring Media is carried out under the observance of our dexterous professionals, who abide by the latest industrial standards and norms.
Technical Details
| Pall ring media | Model bi 50 |
|---|---|
| Length | 44 mm |
| Diameter | 42 mm |
| Shape | Cylindrical |
| Type | Non clog |
| Psa/tsa ratio (%) | 88 |
| Void ratio, v/v | 92 |
| Specific weight, kg/m2 | 0.47 |
| Density gm/cc | 0.99 |
| No. of pieces per cubic meter | 18000 |
| Media fill rate range % fill of v | 35-65 |
