Our Products
20 watt to 1000 Watt LED flood lights available with excellent quality and various designs.\r\n-Estella model\r\n-Back choke model\r\n-Lens model\r\n-Slim model\r\n-Eco slim model\r\nSTANDARD Quality IP66 drivers\r\nOSRAM LED chip\r\n10KV surge protection\r\nAuto cuttoff at 300 volt\r\nCRI 80\r\nLumens per watt
| GENERAL INFORMATION | |

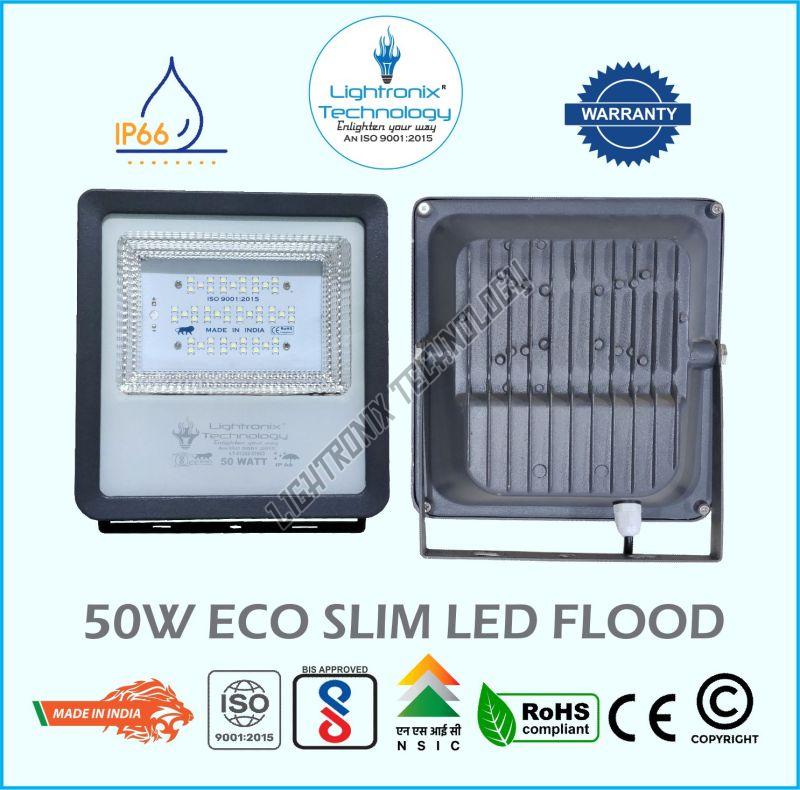

| Order Code | LT-50WFL(ECO SLIM MODEL) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 3030 LED |
| Number of LED | 50 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 7000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 50 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 131X90 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 1.310 Kg |
| Luminaries Size | 214 204 45 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 199x209 mm |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 10 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |

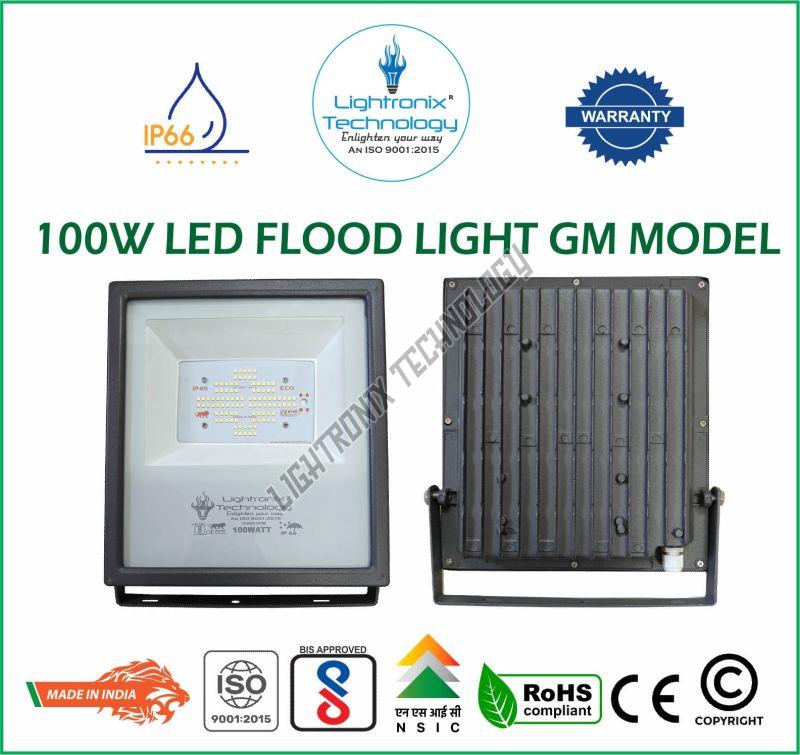

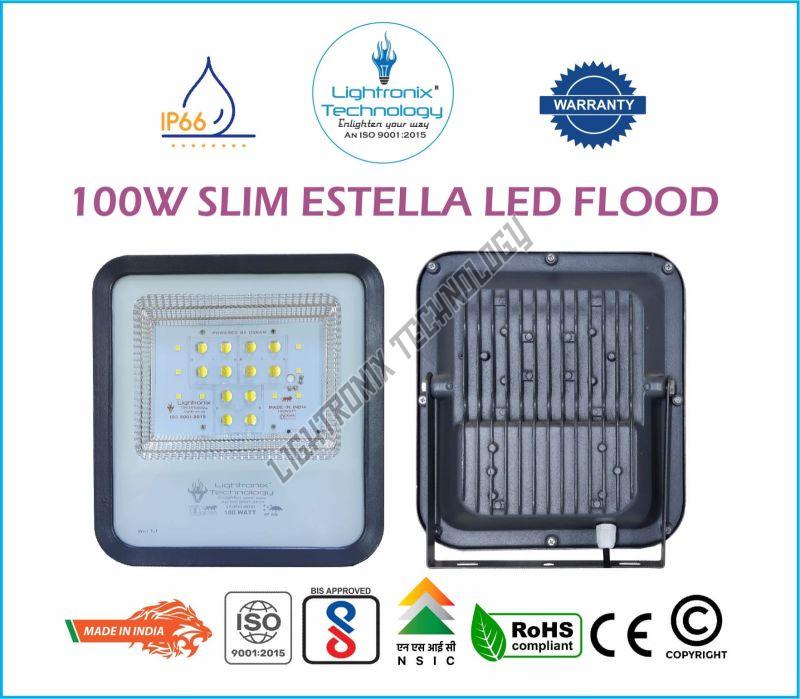

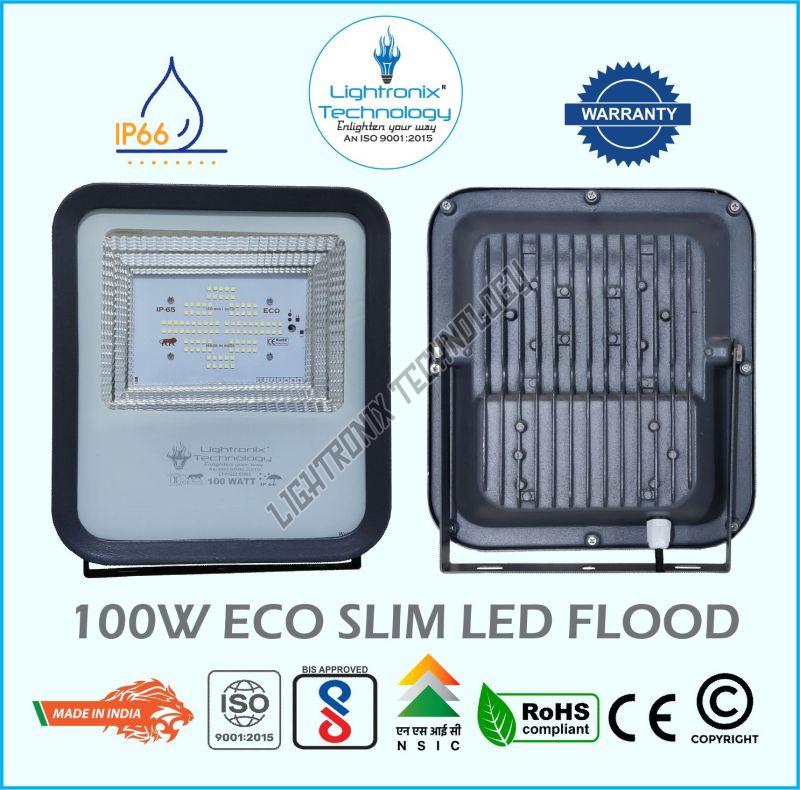

| Order Code | LT-100WFL(ECO SLIM MODEL) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 3030 LED |
| Number of LED | 100 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 14000(±5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 100 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(±5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 135X93 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 1.920 Kg |
| Luminaries Size | 270 × 242 × 51 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 221x249 mm² |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 10 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |

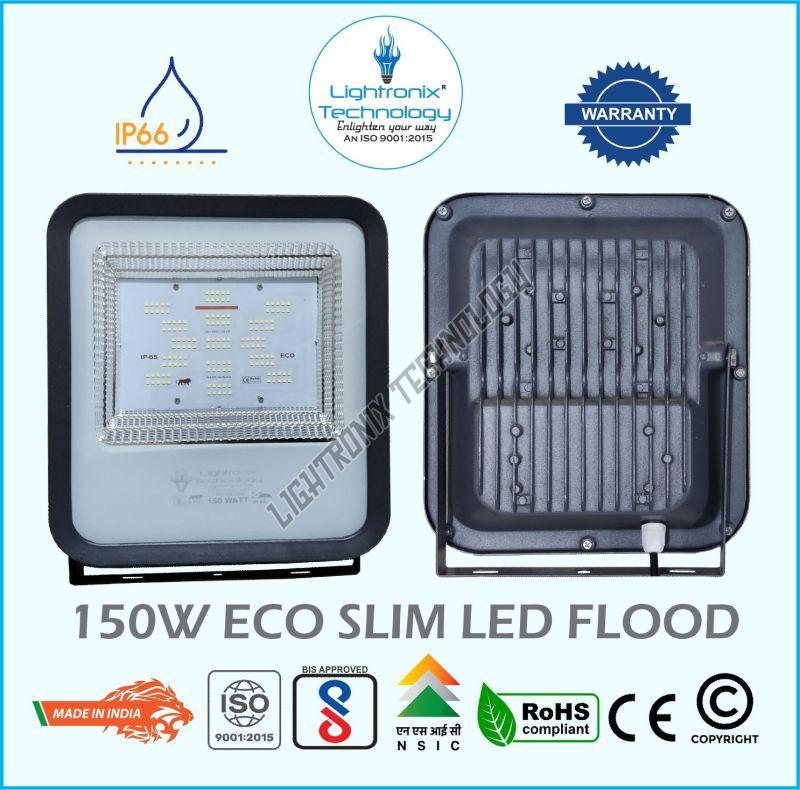

| Order Code | LT-150WFL(ECO SLIM MODEL) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 3030 LED |
| Number of LED | 150 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 21000(±5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 150 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(±5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 178X126 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 2.700 Kg |
| Luminaries Size | 304 × 282 × 40 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 258x281 mm² |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 08 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |

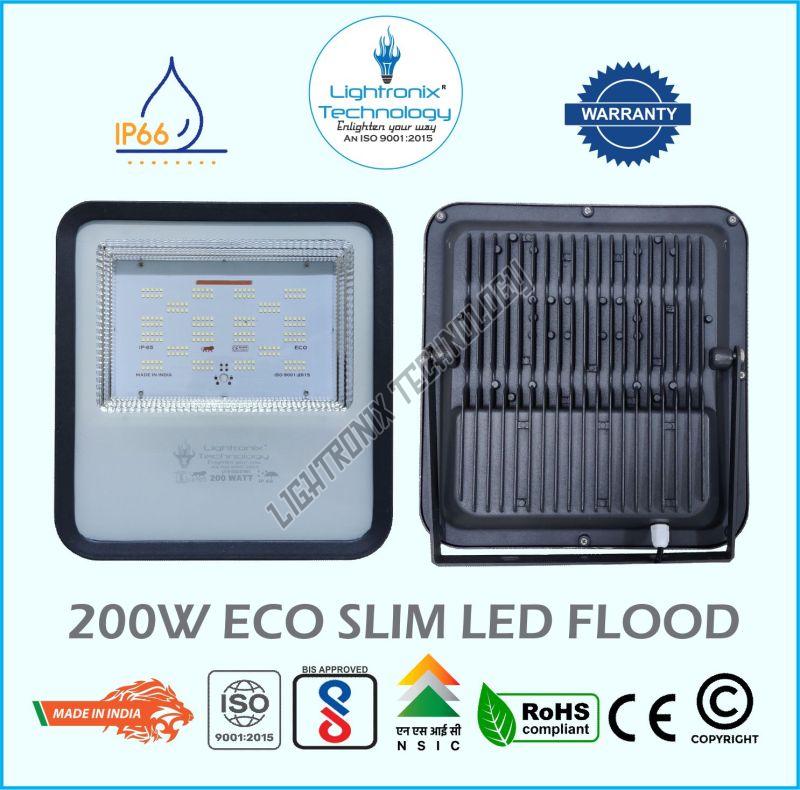

| Order Code | LT-200WFL(ECO SLIM MODEL) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 3030 LED |
| Number of LED | 200 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 28000(±5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 200 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(±5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 230X152 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 3.800 Kg |
| Luminaries Size | 343 × 323 × 80 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass size | 300x321 mm² |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 06 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |

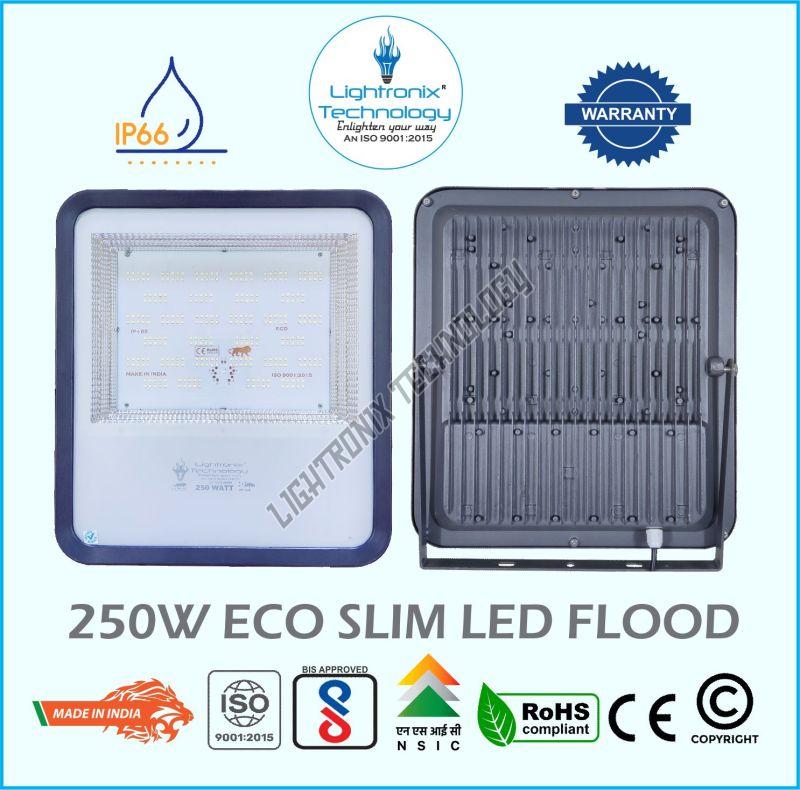

| Order Code | LT-250WFL(ECO SLIM MODEL) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 3030 LED |
| Number of LED | 250 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 35000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 250 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 267X200 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 5.020 Kg |
| Luminaries Size | 412 368 85 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 347x393 mm |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 06 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |
| Order Code | LT-300WFL(ECO SLIM MODEL) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 3030 LED |
| Number of LED | 300 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 42000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 300 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 267X200 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 5.020 Kg |
| Luminaries Size | 412 368 85 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 347x393 mm |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 04 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |

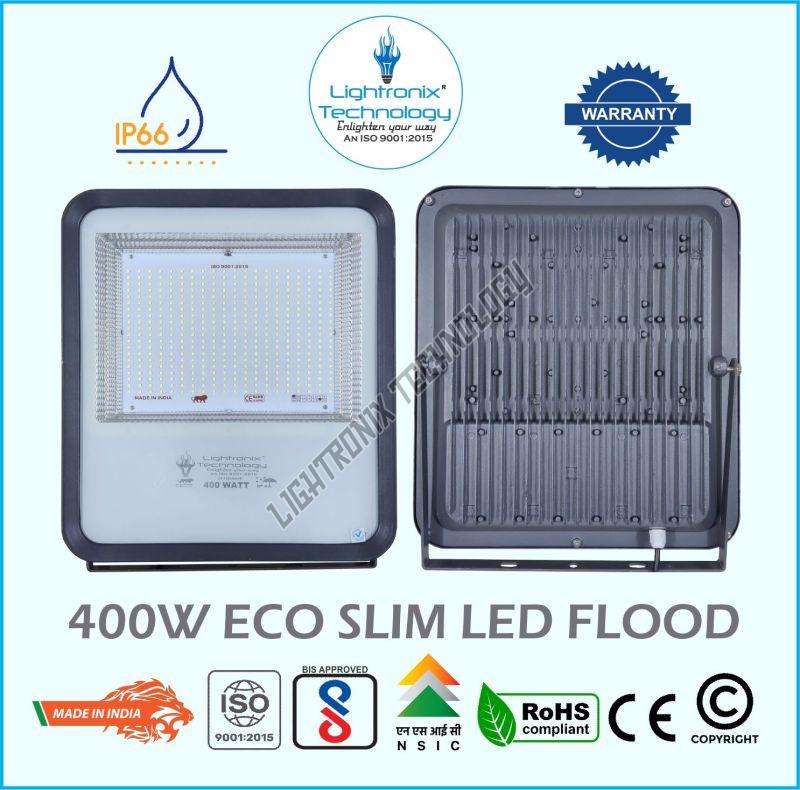

| Order Code | LT-400WFL(ECO SLIM MODEL) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 3030 LED |
| Number of LED | 400 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 56000(±5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 400 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(±5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 267X200 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 5.310 Kg |
| Luminaries Size | 412 × 368 × 85 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 347x393 mm² |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 04 NOS BOX
Delivery Time : 1 DAY
| general information | |

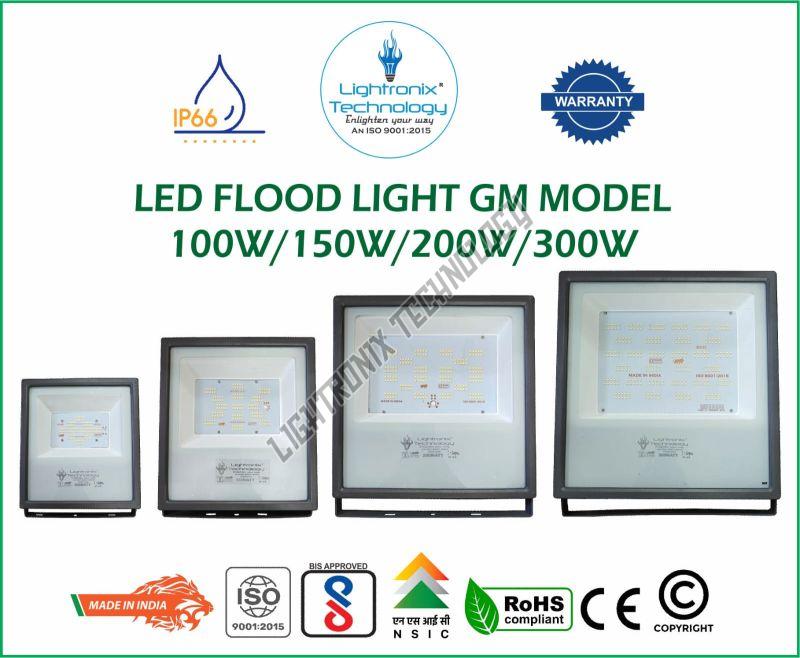

| order code | lt-100wfl-gm (gm model) |
| make | lightronix technology |
| country of origin | india |
| lighting source & type | smd 3030 led |
| number of led | 100 |
| optical parameters | |
| led beam angle | 120 degree |
| cri(color rendering index) | >80 |
| led life span | >60000 hours |
| color | white/warm white/cool white (as per order) |
| color temperature | 2700-6500k(as per order) |
| led voltage/current | 6.2v/150ma |
| led make | seoul/bridge lux/cree/nichia/osram (as per requirement) |
| optical lens | na |
| luminous efficiency | 140 lm/w |
| total lumens | 14000(5%) |
| optical efficiency | >93% |
| thermal efficiency | >90% |
| electrical parameters | |
| wide input voltage range | 90-310vac(with auto cutoff) |
| operating frequency | 50/60hz |
| power consumption | 100 watt |
| power factor | >0.95 |
| thd | 90% |
| supply phase | single phase supply |
| over voltage protection | 440vac protection |
| under voltage protection | 90vac |
| auto cutoff voltage | lower side310vac |
| pcb information | |
| pcb thickness | 1.6mm(5% tolerance) |
| pcb material | pure aluminum-copper |
| copper layer thickness | standard 0.35 micron |
| copper conductivity | >1 watt |
| pcb size | 135x93 mm |
| mechanical parameters | |
| housing material | aluminum pressure die casting |
| housing color type | metal powder coated |
| housing shape | rectangle |
| total luminaries weight | 1.50 kg |
| luminaries size | 260 235 50mm3 |
| mounting device | bracket |
| mounting style | wall/pole/ceiling/roof/hanging |
| glass type | 4mm toughen glass |
| glass size | 221x249 mm |
| cable entry option | pg7 cable gland with rubber washer |
| screw type | stainless steel screw |
| gasket type | silicone rubber gasket |
| ip rating | ip65/ip66 |
| impact rating | ik08/ik10 |
| marking type | laser marking/engraving |
Additional Information:
Payment Terms : L/C,
Packaging Details : 10 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |
| Order Code | LT-150WFL-GM (GM MODEL) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 3030 LED |
| Number of LED | 150 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI(Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 21000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 150 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 178X126 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 2.100 Kg |
| Luminaries Size | 290 275 58mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 258x281 mm |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C,
Packaging Details : 08 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |
| Order Code | LT-200WFL-GM (GM MODEL) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 3030 LED |
| Number of LED | 200 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI(Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 28000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 200 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 230X152 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 2.830 Kg |
| Luminaries Size | 320 322 60mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass size | 300x300 mm |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C,
Packaging Details : 06 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |

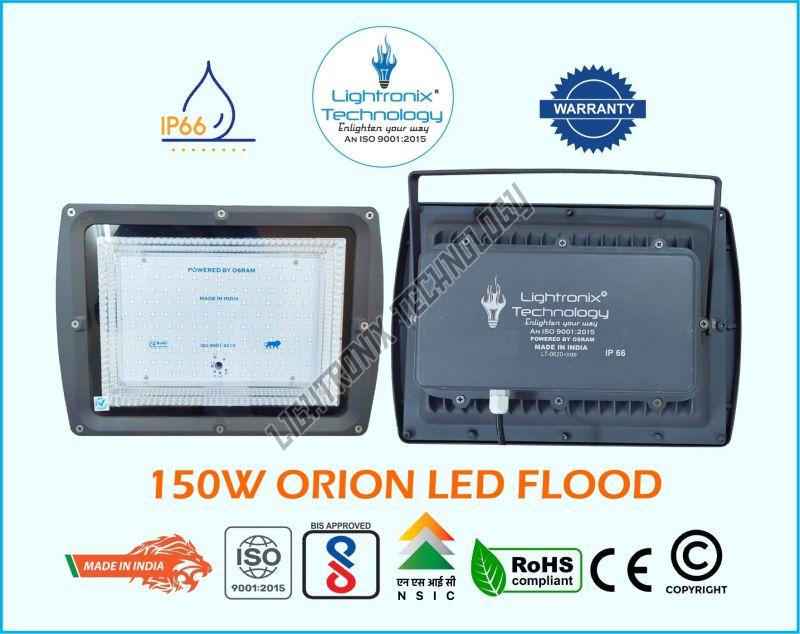

| Order Code | LT-150WFL-ORION-5050 |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 5050 LED |
| Number of LED | 30 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 degree |
| CRI(Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | - |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 25500(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 150 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 230x152 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 3.480 Kg |
| Luminaries Size | 345 239 135mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 214x296 mm |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A,
Packaging Details : 06 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |

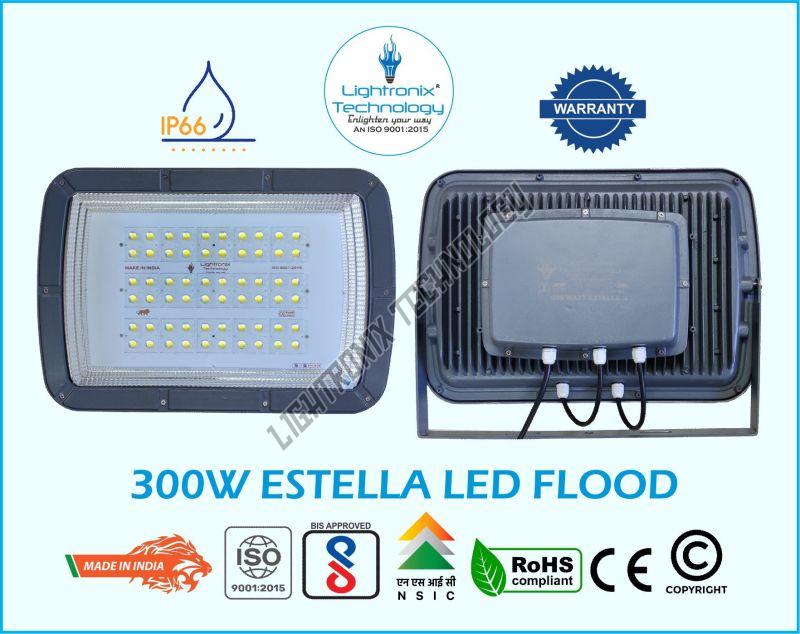

| Order Code | LT-300WFL-ESTELLA |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 5050 LED |
| Number of LED | 60 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 30, 45, 60 or 90 degree Polycarbonate lens |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | 30, 45, 60 or 90 degree Polycarbonate lens |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 51000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| Vertical area Output | >50ft |
| Radius Area Output | 100-150ft |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 300 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 250x395mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 8 Kg |
| Luminaries Size | 495x336x140 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 02 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |

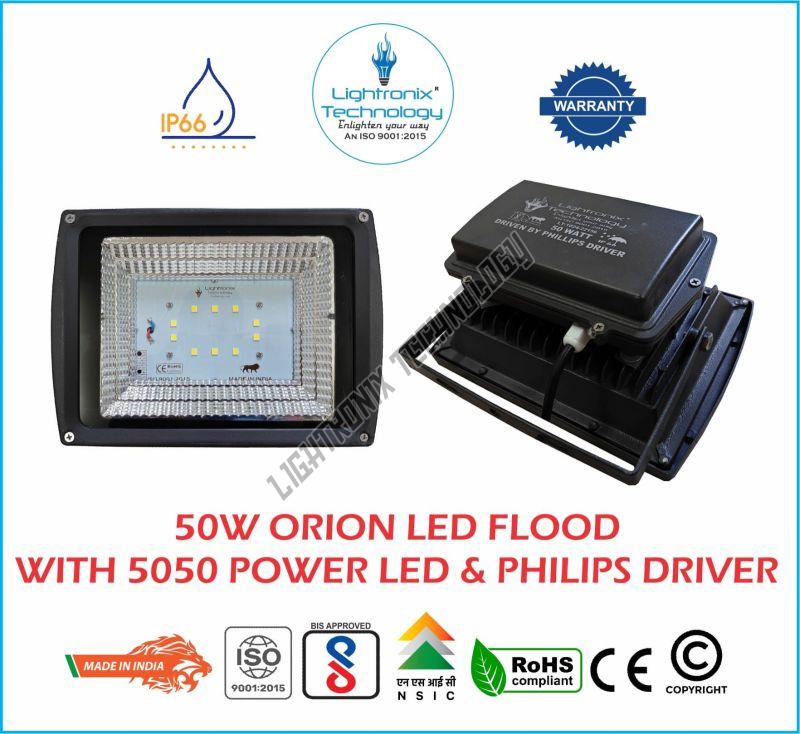

| Order Code | LT-50WFL-ORION-5050 |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 5050 LED |
| Number of LED | 10 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI(Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 8500(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 50 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 135X93 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 1.910 Kg |
| Luminaries Size | 182 254 120 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 169x224mm |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A
Packaging Details : 10 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |

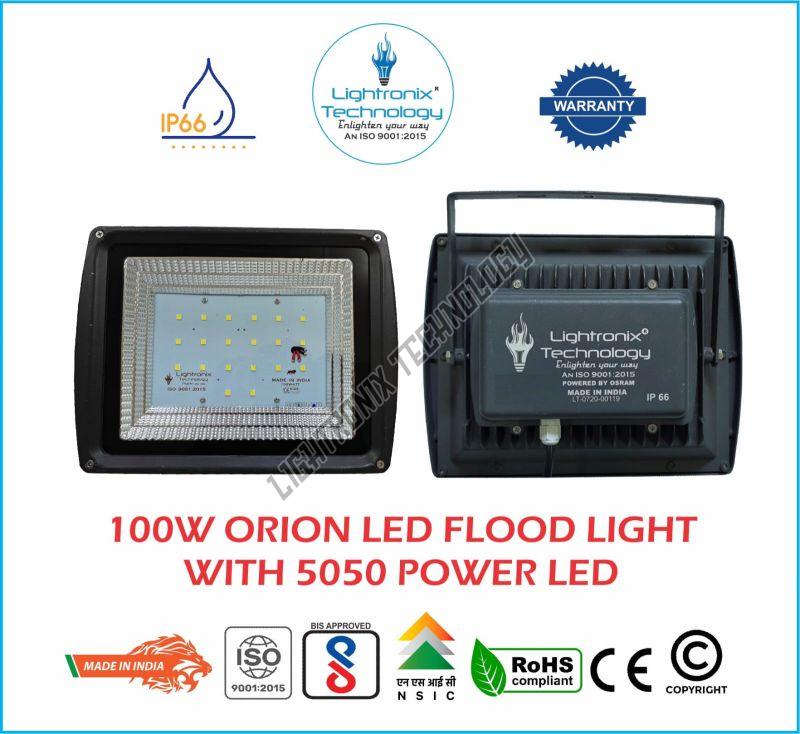

| Order Code | LT-100WFL-ORION-5050 |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 5050 LED |
| Number of LED | 20 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 degree |
| CRI(Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | - |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 17000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 100 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 178X126 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 2.540 Kg |
| Luminaries Size | 225 295 135mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 210x262 mm |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A
Packaging Details : 08 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |

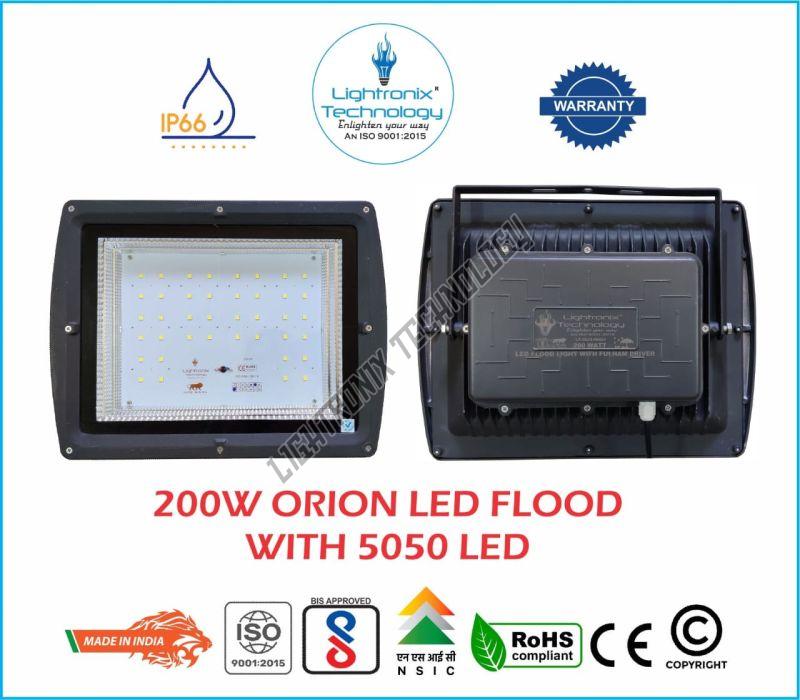

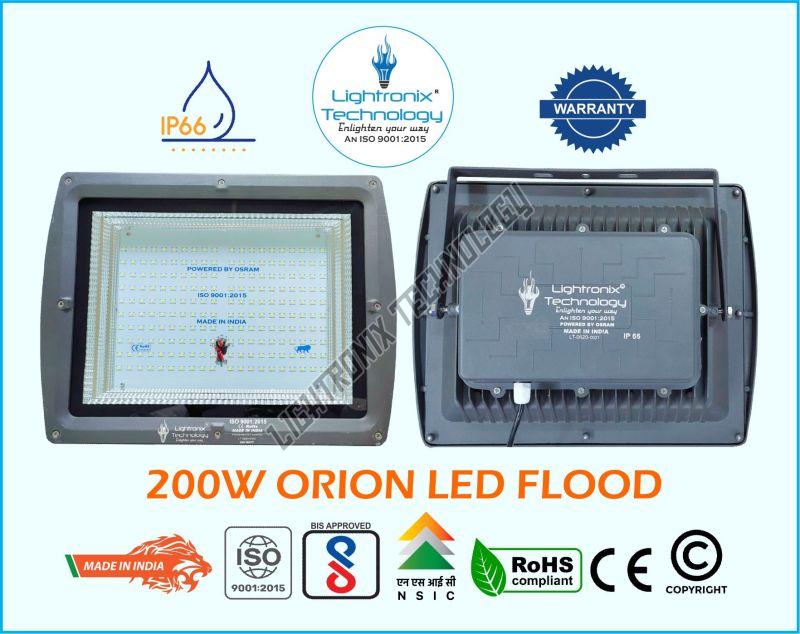

| Order Code | LT-200WFL-ORION-5050 |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 5050 LED |
| Number of LED | 40 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 degree |
| CRI(Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | - |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 34000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 200 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 267x200mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 5.010 Kg |
| Luminaries Size | 397 290 135mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 273x345 mm |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A,
Packaging Details : 06 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |

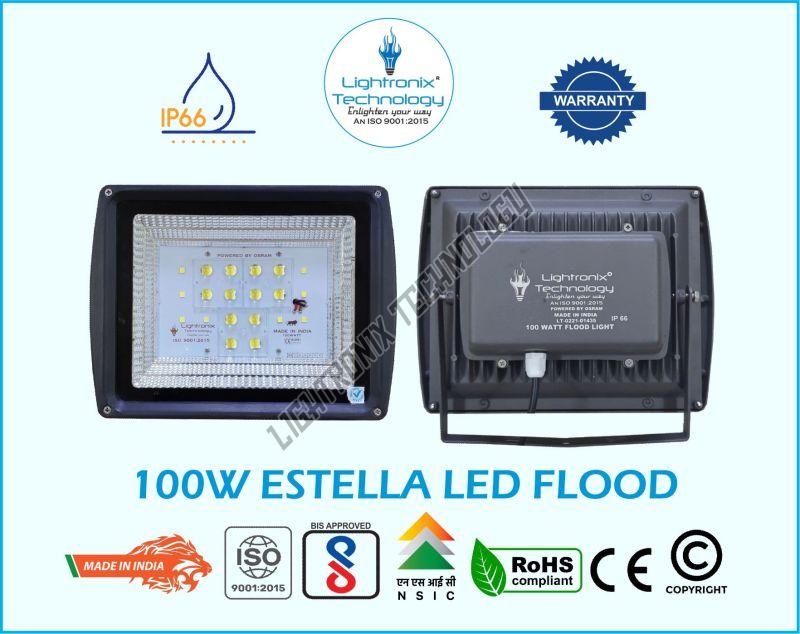

| Order Code | LT-100WFL-SLIM-ESTELLA |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 5050 LED |
| Number of LED | 20 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 30, 45, 60 or 90 degree Polycarbonate lens |
| CRI(Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | 30, 45, 60 or 90 degree Polycarbonate lens |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 17000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 100 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 178X126 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 2.700 Kg |
| Luminaries Size | 304 282 40mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 258x281 mm |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A,
Packaging Details : 08 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |

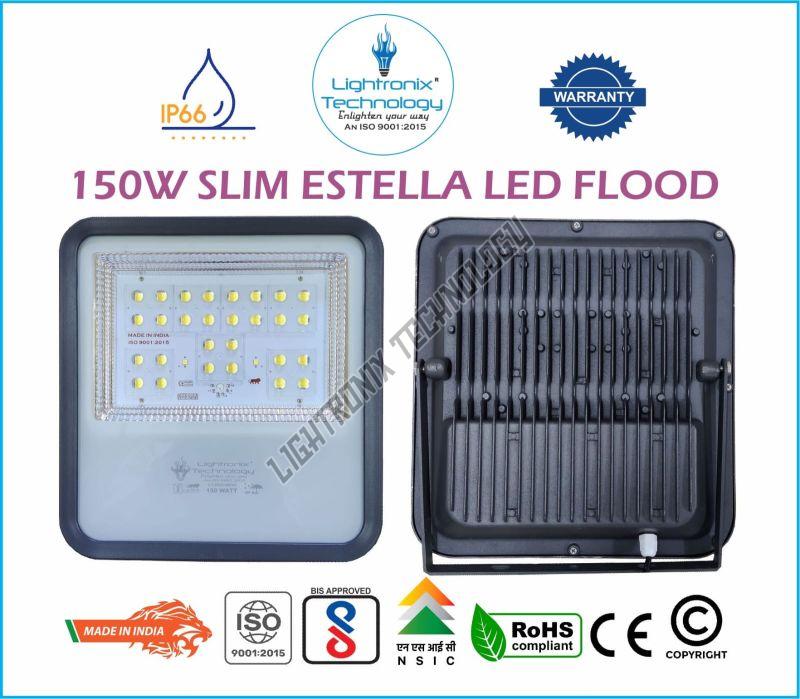

| Order Code | LT-150WFL-SLIM-ESTELLA |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 5050 LED |
| Number of LED | 30 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 30, 45, 60 or 90 degree Polycarbonate lens |
| CRI(Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | 30, 45, 60 or 90 degree Polycarbonate lens |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 25500(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 150 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 230x152 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 3.800 Kg |
| Luminaries Size | 343 323 80mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 300x321 mm |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A,
Packaging Details : 06 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |

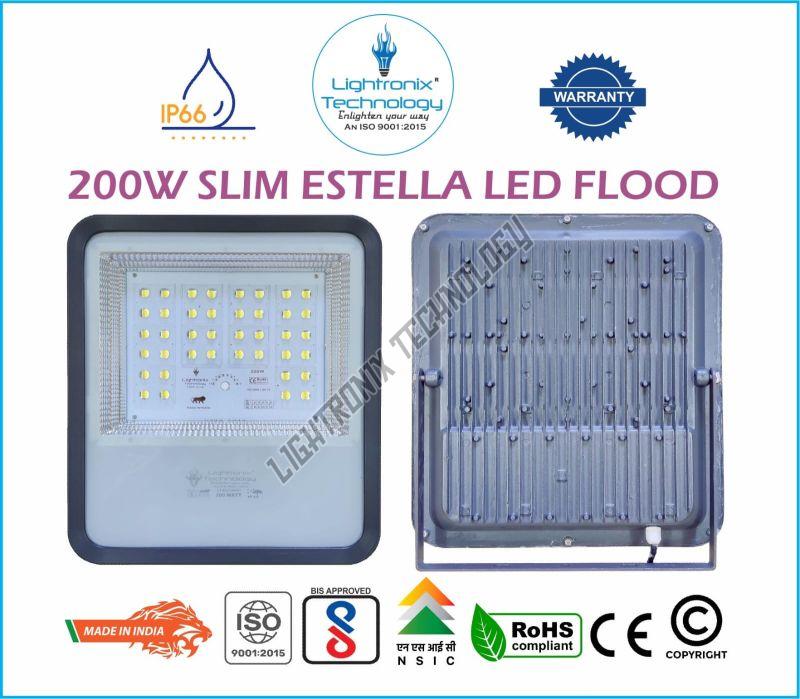

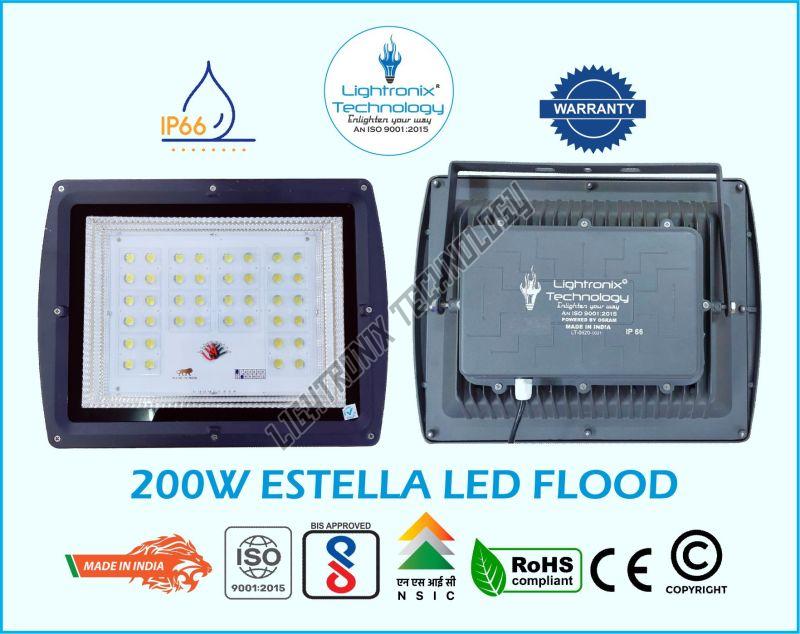

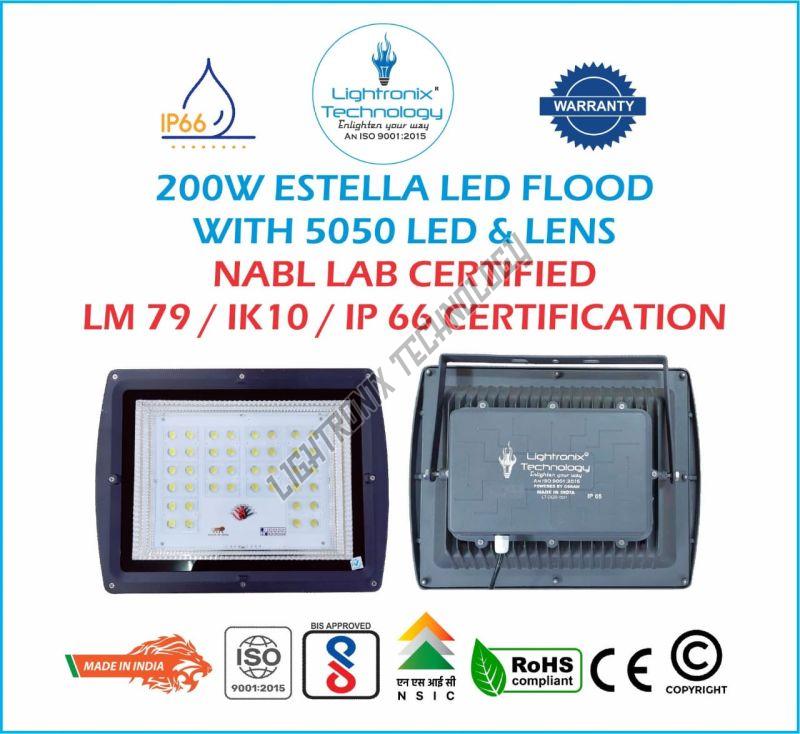

| Order Code | LT-200WFL-SLIM-ESTELLA |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 5050 LED |
| Number of LED | 40 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 30, 45, 60 or 90 degree Polycarbonate lens |
| CRI(Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | 30, 45, 60 or 90 degree Polycarbonate lens |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 34000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 200 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 267x200mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 5.200 Kg |
| Luminaries Size | 412 368 85mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 347x393 mm |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A,
Packaging Details : 06 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |
| Order Code | LT-400WFL-ESTELLA |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 5050 LED |
| Number of LED | 80 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 30, 45, 60 or 90 degree Polycarbonate lens |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | 30, 45, 60 or 90 degree Polycarbonate lens |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 68000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| Vertical area Output | >50ft |
| Radius Area Output | 100-150ft |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 400 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 250x395mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 10 Kg |
| Luminaries Size | 495x336x140 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 02 NOS BOX
Delivery Time : 1 DAY
| general information | |
| order code | lt-fl(gm model) |
| make | lightronix technology |
| country of origin | india |
| lighting source & type | smd 3030 led |
| number of led | as per watt |
| optical parameters | |
| led beam angle | 120 degree |
| cri(color rendering index) | >80 |
| led life span | >60000 hours |
| color | white/warm white/cool white (as per order) |
| color temperature | 2700-6500k(as per order) |
| led voltage/current | 6.2v/150ma |
| led make | seoul/bridge lux/cree/nichia/osram (as per requirement) |
| optical lens | na |
| luminous efficiency | 140 lm/w |
| total lumens |
|
| optical efficiency | >93% |
| thermal efficiency | >90% |
| electrical parameters | |
| wide input voltage range | 90-310vac(with auto cutoff) |
| operating frequency | 50/60hz |
| power consumption | 300 watt |
| power factor | >0.95 |
| thd | 90% |
| supply phase | single phase supply |
| over voltage protection | 440vac protection |
| under voltage protection | 90vac |
| auto cutoff voltage | lower side310vac |
| pcb information | |
| pcb thickness | 1.6mm(5% tolerance) |
| pcb material | pure aluminum-copper |
| copper layer thickness | standard 0.35 micron |
| copper conductivity | >1 watt |
| pcb size | |
| mechanical parameters | |
| housing material | aluminum pressure die casting |
| housing color type | metal powder coated |
| housing shape | rectangle |
| total luminaries weight |
|
| luminaries size |
|
| mounting device | bracket |
| mounting style | wall/pole/ceiling/roof/hanging |
| glass type | 4mm toughen glass |
| glass size |
|
| cable entry option | pg7 cable gland with rubber washer |
| screw type | stainless steel screw |
| gasket type | silicone rubber gasket |
| ip rating | ip65/ip66 |
| impact rating | ik08/ik10 |
| marking type | laser marking/engraving |
Additional Information:
Payment Terms : L/C,
Delivery Time : 1 DAY
| GENERAL INFORMATION | |
| Order Code | LT-100WFL-ESTELLA |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 5050 LED |
| Number of LED | 20 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 30, 45, 60 or 90 degree Polycarbonate lens |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | 30, 45, 60 or 90 degree Polycarbonate lens |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 17000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 100 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 178X126 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 2.670 Kg |
| Luminaries Size | 225 295 135mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 210x262 mm |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 08 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |

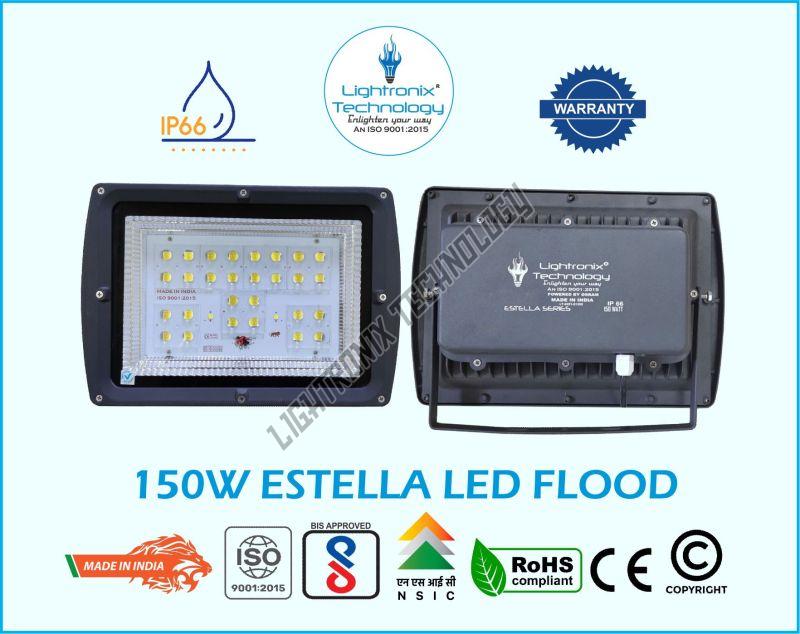

| Order Code | LT-150WFL-ESTELLA |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 5050 LED |
| Number of LED | 30 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 30, 45, 60 or 90 degree Polycarbonate lens |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | 30, 45, 60 or 90 degree Polycarbonate lens |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 25500(±5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 150 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(±5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 230x152 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 3.550 Kg |
| Luminaries Size | 345 × 239 × 135 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 214x296 mm² |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 06 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |
| Order Code | LT-50WFL(ORION MODEL) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 3030 LED |
| Number of LED | 50 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI(Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 7000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 50 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 135X93 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 1.910 Kg |
| Luminaries Size | 182 254 120 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 169x224mm |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A
Packaging Details : 12 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |
| Order Code | LT-100WFL(ORION MODEL) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 3030 LED |
| Number of LED | 100 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI(Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 14000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 100 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 178X126 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 2.540 Kg |
| Luminaries Size | 225 295 135mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 210x262mm |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 06 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |
| Order Code | LT-150WFL(ORION MODEL) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 3030 LED |
| Number of LED | 150 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI(Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 21000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 150 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 230X152mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 3.480 Kg |
| Luminaries Size | 345 239 135 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 214x296mm |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 08 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |
| Order Code | LT-200WFL(ORION MODEL) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 3030 LED |
| Number of LED | 200 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 28000(±5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 200 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(±5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 267X200 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 5.010 Kg |
| Luminaries Size | 397 × 290 × 135 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass size | 273x345 mm² |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 06 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |
| Order Code | LT-300WFL(ORION MODEL) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 3030 LED |
| Number of LED | 300 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI(Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 42000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 300 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 250X395mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 8.900Kg |
| Luminaries Size | 495 336 140mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass size |
|
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 06 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |
| Order Code | LT-350WFL(ORION MODEL) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 3030 LED |
| Number of LED | 350 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI(Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 49000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 350 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 250X395mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 10 Kg |
| Luminaries Size | 495 336 140mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass size |
|
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 06 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |
| Order Code | LT-400WFL(ORION MODEL) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 3030 LED |
| Number of LED | 400 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI(Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 56000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 400 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 250X395mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 10 Kg |
| Luminaries Size | 495 336 140mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass size |
|
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 06 NOS BOX
Delivery Time : 1 DAY
| GENERAL INFORMATION | |
| Order Code | LT-200WFL-ESTELLA |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 5050 LED |
| Number of LED | 40 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 30, 45, 60 or 90 degree Polycarbonate lens |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | 30, 45, 60 or 90 degree Polycarbonate lens |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 34000(±5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 200 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(±5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 267x200mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 5.100 Kg |
| Luminaries Size | 397 × 290 × 135 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 273x345 mm² |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 06 NOS BOX
Delivery Time : 1 DAY
KOMAL DOBARIYA (LIGHTRONIX TECHNOLOGY)
E-122, GIDC ELECTRONIC ESTATE,SECTRO 26,GANDHINAGAR, Sector 26, Gujarat - 382028
Share us via
View Contact Number
