Leading Manufacturer, Supplier & Retailer of H Type Hydraulic Press Machine Manufacturer Supplier Maharashtra, Hydraulic Press Machine Manufacturer Supplier Maharashtra, manual hydraulic press machine, hydraulic press machine manufacturer and Hydraulic Press.
Our Expertise and Trustworthiness, We Are Engaged in Offering an Optimum Quality Range of Hydraulic Press Machine. Manufacturer, Supplier and Exporter of Hydraulic Press - Automatic Hydraulic Press Machine From India
Additional Information:
Payment Terms : T/T
Packaging Details : Standard Export Packaging
Delivery Time : 20 TO 30 Days
Our Expertise and Trustworthiness, We Are Engaged in Offering an Optimum Quality Range of Hydraulic Press Machine. Manufacturer, Supplier and Exporter of Hydraulic Press - Automatic Hydraulic Press Machine From India
Additional Information:
Payment Terms : T/T
Packaging Details : Standard Export Packaging
Delivery Time : 20 TO 30 Days
| Capacity | 60 TON |
| Between Column Length width size | 1050 X 450mm (L x W) |
| Between Ram To Bed size | 180 X 950 mm |
| Ram stroke | 225mm |
| Ram Dia | 95mm |
| Body Plate in mm | 20mm |
| Wight of Machine | 600 to 650kg |
| Machine Size | 1700X 790X2300(LXWXH) |
Additional Information:
Payment Terms : T/T
Packaging Details : WOODEN BOX
Delivery Time : 20 TO 30 DAYS
| Capacity | 100 TON |
| Between Column Length width size | 1200 X 625mm ( L x W) |
| Between Ram To Bed size | 180 X 975 mm |
| Ram stroke | 235mm |
| Ram Dia | 110mm |
| All body plate size | 25mm |
| Weight of machine | 1.2 Tons |
Additional Information:
Payment Terms : T/T
Packaging Details : wooden box
Delivery Time : 25-30DAYS

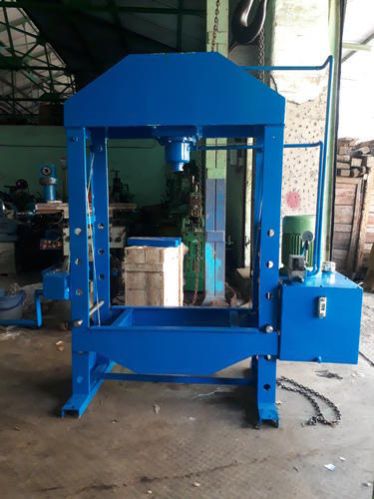

Main Capacity :- 100 Ton
Type of the machine :- H Type power Operated Hydraulic press
Bed Size:- 1200X 600mm (L x B)
Between Ram to Bed :- 180(Mini) x 975mm (Max)
Body Plate:- 25mm
Travel Of Ram:- 235mm
Tank Capacity:- 200 Litre
Motor:- 7.5Hp 3 Phase 1440 RPM Flange Moulding
Pressure :- 250Kg
Main Cylinder Ram Diameter:- 125mm
Additional Information:
Payment Terms : T/T
Packaging Details : WOODEN BOX
