Our Product / Services
We offer a complete product range of C Frame Hydraulic Press Machine OEM Manufacturer, Standard Manufacturer C Frame Hydraulic Press Power Press Machine, 150 TON HYDRAULIC H TYPE PRESS MACHINE, 100 Ton Hydraulic C Type Press Machine and 30 Ton Hydraulic C Type Press machine

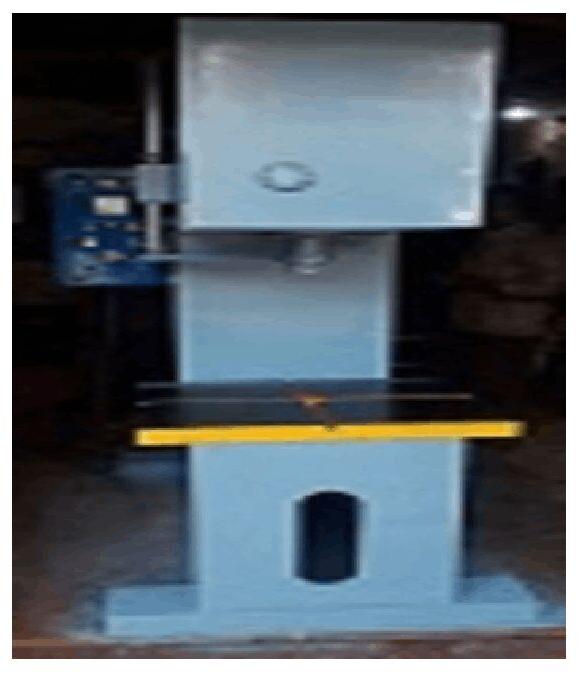

We Offer C-frame Type Presses in a Variety of Designs to Suit Varied Applications. These Presses Can Also Be Equipped With Removable Bolsters, Die Cushion, Automatic Feeding and Material Handling Systems for High-speed Production Applications.
Additional Information:
Payment Terms : T/T
Packaging Details : Standard Export Packaging
Delivery Time : 20 TO 30 Days

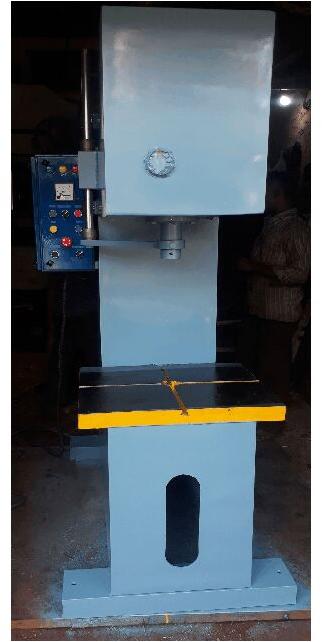

We Offer C-frame Type Presses in a Variety of Designs to Suit Varied Applications. These Presses Can Also Be Equipped With Removable Bolsters, Die Cushion, Automatic Feeding and Material Handling Systems for High-speed Production Applications.
Additional Information:
Payment Terms : T/T
Packaging Details : Standard Export Packaging
Delivery Time : 20 TO 30 Days

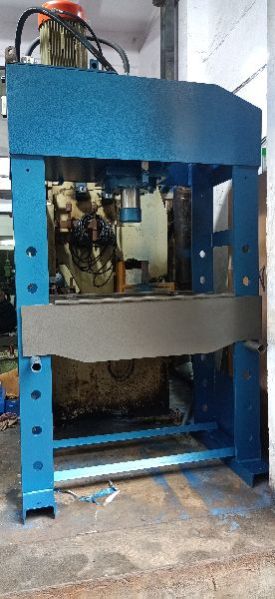

Main Capacity :- 150 Ton
Type of the machine :- H Type power Operated Hydraulic press
Bed Size:- 1200X 675mm (L X B)
Between Ram to Bed :- 175(Mini) X 1000mm (Max)
Body Plate:- 28mm
Travel Of Ram:- 300mm
Tank Capacity:- 250 Liter
Motor:- 15 Hp 3 Phase 1440 RPM Flange Moulding
Pressure :- 300Kg
Main Cylinder Ram Diameter :- 150mm
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden Box
Delivery Time : 30 TO 45 DAYS
Capacity | 60 ton |
Stroke | 225 mm |
Ram to Bed | 650mm |
Working Table Size | 550mm X 600mm |
Working height table | 750mm |
Throat | 230mm |
Hole in Table | 60mm |
Small length | 460mm |
Table Depth | 460mm |
long length (optional) | 1050mm |
Table width | 250mm |
Hydraulic oil tank | 150 Liters |
Hydraulic Cylinder | Double Acting type |
T-slottingtable |
|
Cylinder Dia Mtr | 178mm |
Cylinder ID | 150mm |
Ram Dia Mtr | 100mm |
Height of Cylinder | 500mm |
Working Pressure | Pressure 300 Kg / Cm2 suitable for 60 ton |
Tank Dimension | 600 X 500 X 600mm (L X W X H) |
Motor | 7.5 HP 3 Phase (Siemens or Hindustan) |
Consisting Of Drain Valve, Oil Tank, Oil Level Indictor, Oil filter cum breather | High Pressure Piston Pump, Pump Motor Camping, NRV pressure Gauge with Adaptor Along with Circuit Block |
Machine OperatioN | With Semi-Automatic panel Board (Push button, Foot Switch, Limit Switch & Inches adjustment ) |
All Boy Plate | 32mm (M.S Profile Cutting Plate ) |
Weight of Machine | 3 to 3.5 tons |
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden Box
Delivery Time : 30 TO 45 DAYS
Capacity | 30 ton |
Stroke | 250.mm |
Ram to Bed | 450mm |
Table height | 700mm |
Throat | 250mm |
Small length | 250mm |
Table Depth | 250mm |
long length (optional) | 1000mm |
Table width | 500mm |
T-slottingtable | 1/2" |
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden Box
Delivery Time : 20 TO 30 DAYS
Main Capacity :- 100 Ton
Type of the machine :- H Type power Operated Hydraulic press
Bed Size :- 1200X 600mm (L x B)
Between Ram to Bed :- 180(Mini) x 975mm (Max)
Body Plate :- 25mm
Travel Of Ram :- 235mm
Tank Capacity :- 200 Liter
Motor :- 10Hp 3 Phase 1440 RPM Flange Molding
Pressure :- 250Kg
Main Cylinder Ram Diameter :- 125mm
Additional Information:
Payment Terms : T/T
Packaging Details : wooden box
Delivery Time : 25-30DAYS
Machine Capacity :- 100 Ton
Table Size :- 813 X 584mm
Ram To Bed :- 406mm
TRavel To Ram :- 125mm
Ram Size :- 150mm
Certer to DIP :- 292
Oil Tank Capacity:- 225
Motor Power HP :- 10HP
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden Box
Delivery Time : 30 TO 45 DAYS
