Our Product / Services

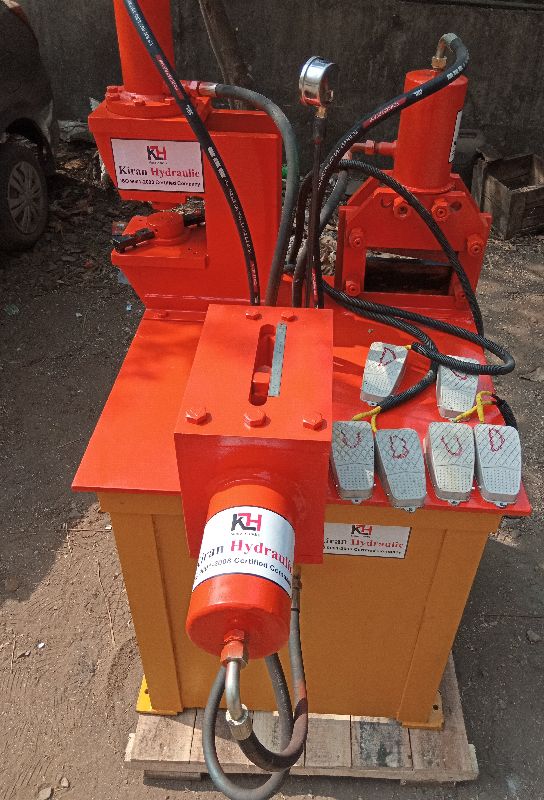

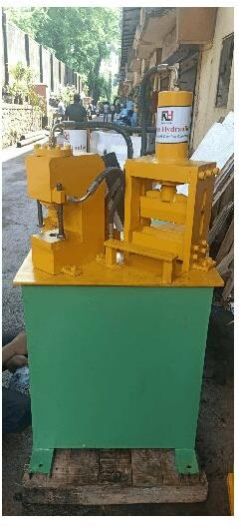

Our product range contains a wide range of High Quality Copper Busbar Bending Machine Manufacturer in Maharashtra, Busbar Bending Machine Manufacturer in Maharashtra, 150mm Hydraulic 3 In 1 Busbar Bending Machine and 3 In 1 Busbar Bending Machine
We Have a Unique Range of Bus Bar Punching/bending Machines, High Quality Busbar Machine With Competitive Price, Punching or Bending Machines Helps in Increasing the Production Efficiency, Busbar Bending Cutting and Punching Machine Manufacturers & Suppliers.
Additional Information:
Payment Terms : T/T
Packaging Details : Standard Export Packaging
Delivery Time : 20 TO 30 Days
We Have a Unique Range of Bus Bar Punching/bending Machines, High Quality Busbar Machine With Competitive Price, Punching or Bending Machines Helps in Increasing the Production Efficiency, Busbar Bending Cutting and Punching Machine Manufacturers & Suppliers.
Additional Information:
Payment Terms : T/T
Packaging Details : Standard Export Packaging
Delivery Time : 20 TO 30 Days
BENDING SIZE :-
lHydraulic Cylinder :- 20 Ton
lAluminium :-150 mm X 12.5 mm
lCoper :- 150mm X 12.5mm
lMild Steel :- 150mm X 6.25mm
CUTTING SIZE :-
lHydraulic Cylinder 30 Ton
l150 mm X 12.5mm
PUNCHING DIAMETER :-
lHydraulic Cylinder :- 20 Ton
l8mm
l10 mm
l12 mm
l14mm
l16mm
uRubber Hose
uMotor Starter
1.Motor 5 HP 3 Phase 1440 Rpm Flange Moulding
2.Oil Tank 40 Litres
3.All Pump & Valve :- Yuken & Polyhedron
1.Operation of the machine :- Push button & foot switch with starter motor
Working pressure :- 250Kg
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden Box
Delivery Time : 20 TO 30 DAYS
SPECIFICATION:
BENDING SIZE :-
lHydraulic Cylinder :- 20 Ton
lAluminium :-150 mm X 12.5 mm
lCoper :- 150mm X 12.5mm
lMild Steel :- 150mm X 6.25mm
CUTTING SIZE :-
lHydraulic Cylinder 30 Ton
l150 mm X 12.5mm
PUNCHING DIAMETER :-
lHydraulic Cylinder :- 20 Ton
l8mm
l10 mm
l12 mm
l14mm
l16mm
uRubber Hose
uMotor Starter
1.Motor 5 HP 3 Phase 1440 Rpm Flange Moulding
2.Oil Tank 40 Litres
3.All Pump & Valve :- Yuken & Polyhedron
1.Operation of the machine :- Push button & foot switch with starter motor
Working pressure :- 250Kg
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden Box
Delivery Time : 20 TO 30 DAYS
