Machines And Equipments

We are leaders in the market for providing best range of insulation paper inserting machine, CNC Insulation Paper Inserting Machine and Slot cell Insulation Paper Inserting Machine

insulation paper inserting machine

Insulation Paper Inserting Machine
2.50 Lakh /Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece(s)
  • Stator O.D Max. 120-160mm
  • Stack Height 10-40mm
  • Number Of Slots 8-18Poles
  • Motor 3phase, 1/2HP
  • Dimension 1000(L)*600(W)*900(H)mm

We are offering insulation paper inserting machine. This machine is specially designed for slot cell or wedge paper insertion of ceiling fan stators. All procedure actions are done by the machine automatically except to put on and take of stators. The complete inserting time for 16 pole

View Complete Details
Ask Latest Price & Details
CNC Insulation Paper Inserting Machine

CNC Insulation Paper Inserting Machine
  • Min. Order (MOQ) 1 Piece
  • Stator O.D. diameter 80mm to 160mm
  • Stack Height 10mm~40mm
  • Number of Slots 8~18 Poles
  • Motor 3 phase, 1/2 HP
  • Dimension 1000 x 600 x 900 mm
  • Net Weight 230 KG
  • Gross Weight 250 KG

Details

  • We manufacture and supply extremely cheap and best insulation paper inserting machine.
  • This machine is specially designed for insulation paper of ceiling fan motor staror.
  • All procedure actions are done by the machine automatically except to put on and take off stator.
  • The production cost will be highly reduced by decreasing the material loss labor cost.


Controllers Features

  • The complete inserting time for 16 poles stator can be shortened to 8sec/stator.
  • High insertion speed is about 0.5 sec/slot for labor saving, cost reduction, and stable qulaity output.
  • Easy adjustment while changing stack height of stator or width of insulating paper.
  • Change tooling design to meet different shape of stator slots.
View Complete Details
Ask Latest Price & Details

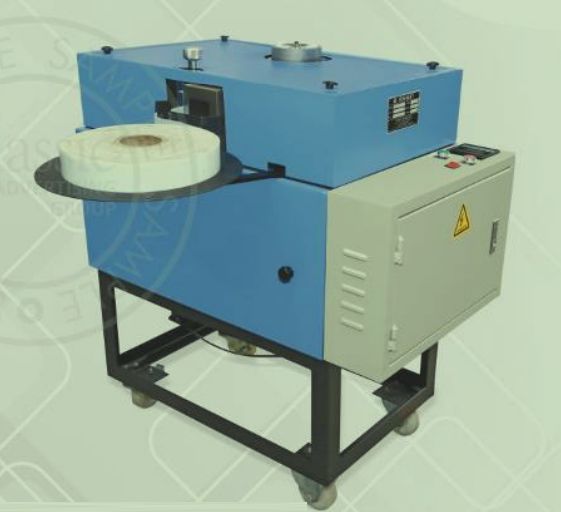

Slot Cell Insulation Paper Inserting Machine

Slot Cell Insulation Paper Inserting Machine
  • Min. Order (MOQ) 1 Piece(s)
  • Power 0.75KW
  • Stator Stack Height 10mm-100mm
  • Max. Stator O.D Dia 200mm
  • Stator I.D. Range Dia 30mm-120mm
  • Height of Edge Folded 2mm-5mm
  • Max. Thickness Of Insulation Paper 0.15mm-0.3mm
  • Paper Feeding Lenght 12mm-40mm
  • Tact time 0.4-0.5 s/slot
  • Power Supply 380V/50HZ Three-Phase
  • Dimension (L*W*H) 960mmX1100mmX900mm

Details

  • This machine is specially designed for automatic slot cell paper insertion of medium and small size stator.
  • The complete inserting time for 24 slots stator can be shortened to 8 sec/ stator.
  • The production cost will be highly reduced by decreasing the material loss and labor cost.


Controllers Features

  • All procedures are done by the machine
  • Automatically except to put on and take off stator.
  • Highinsertion speed (about to 0.5 sec/slot), labor saving, cost reduction, and stable quality output.
  • Easy adjustment while changing stack height of stator or width of insulating paper.
  • Change tooling design to meet different shape of stator slots.



Additional Information:

Delivery Time : Depend on order quantity

View Complete Details
Ask Latest Price & Details
