Coil Winders

Our offered Product range includes Servo Double Sides Stator Winding Lacing Machine, Four Station Automatic Coil Winding Machine, HUB Motor Winding Machine, Automatic Single Sided Coil Lacing Machine and Eight Station Automatic Coil Winding Machine.

Servo Double Sides Stator Winding Lacing Machine

Servo Double Sides Stator Winding Lacing Machine
16.50 Lakh /Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Power 4000W
  • Min Stator ID Φ 33mm
  • Max Outer Diameter of Stator Φ 150mm
  • Heights of winding ends (Change cam per 10mm) 15mm-48mm
  • Thickness of Stator Lamination 15mm-120mm
  • Take Time 15sec/ 24 slots
  • Machine Productivity 2000pcs/8 hours for 24 slots stator
  • Input 380V/50Hz
  • Air Pressure 0.4-0.6MPa
  • Dimension 1570mm × 670mm × 1680mm
  • Weight ≈ 1200kg
  • PLC Delta

Stator is loaded on the Servo Double sides Stator Winding Lacing Machine vertically,   equipped with presser, automatic feeding, automatic cutting device, etc., overhang winding adopts twin needle lacing by servo system simultaneously, needle trans positioning, hooking and stator indexing are controlled by servo system, spindle adopts frequency speed control, slot by slot lacing, interval lacing, and fancy lacing could be achieved by setting in human-machine interface, characterized by compact appearance, fast speed .low noise, simple operation and easy tooling change.

View Complete Details
Ask Latest Price & Details
Four Station Automatic Coil Winding Machine

Four Station Automatic Coil Winding Machine
  • Min. Order (MOQ) 1 Piece
  • Power 1KW/ 2KW as per required
  • Wire diameter range 0.1mm – 1.0mm /0.35mm
  • Winding width 250mm
  • Winding diameter 250mm
  • Effective diameter 250mm
  • Effective distance between winding shafts 520mm/500mm
  • Max. rotation speed 3000rpm
  • Power Supply 220v AC. 50 Hz, 1ph
  • Dimension 1250x550x1500mm
  • Pneumatic 4.5 KG pressure
  • Net weight 330KG / 450KG
  • Program Memory Max. 999 sets

Details

  • This machine is specially designed for automatic coil winding machine.
  • The winding machine is suitable for minimum winding 32 pieces of coil simultaneously.
  • The production cost will be highly reduced by decreasing the material loss and labor cost.
View Complete Details
Ask Latest Price & Details
HUB Motor Winding Machine

HUB Motor Winding Machine
  • Min. Order (MOQ) 1 N
  • Brand Name KDDK
  • Driven Type Electric
  • Color BLUE-GRAY
  • Condition New
  • Automatic Grade Fully Automatic
  • Power 1-3kw
  • Application HUB MOTOR WINDING
  • Voltage 220
  • Production Capacity 20
  • Type Motor Winding Machine
  • Weight 100-1000kg
  • Warranty 1year
  • After-Sales Service Provided ON-SITE
  • Country of Origin India
  • No. of Spindle : 1 Spindle max speed : 2000RPM
  • Axis Controll : Servo Input Power : 220v AC 50hz
  • Spindle Motor : 1.5 kw Weight : Approx 650 kg

Additional Information:

Payment Terms : L/C, T/T

View Complete Details
Ask Latest Price & Details

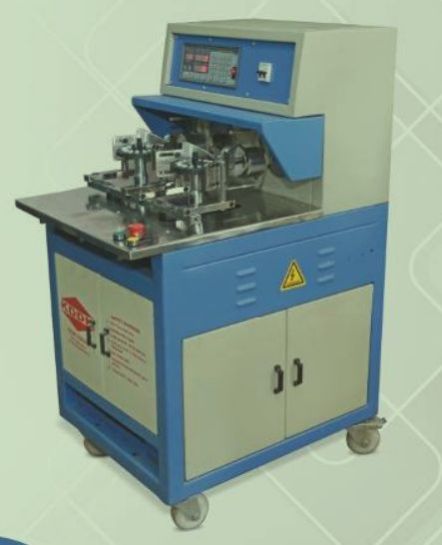

Automatic Single Sided Coil Lacing Machine

Automatic Single Sided Coil Lacing Machine
  • Min. Order (MOQ) 1 Piece
  • Power 3Ph, 50Hz
  • Stator Stack Height 10mm – 100mm
  • Max. stator O.D 130mm
  • Stator I.D range 130mm – 90mm
  • Height of edge folded 2mm – 5mm
  • Max. Thickness of Insulation Paper 0.15mm – 0.3mm
  • Paper Feeding Length 12 mm – 50mm
  • Tact time 0.4 – 0.5 s/slot
  • Power Supply 3Ph, 380 v AC, 50Hz
  • Dimension 800 x 550 x 900 mm
  • Net Weight 280KG

Details

  • This machine is specially designed for automatic slot cell paper insertion of medium and small size stator.
  • The complete inserting time for 24 slots stator can be shortened to 8 sec/ stator.
  • The production cost will be highly reduced by decreasing the material loss and labor cost.


Controllers Features

  • All procedures are done by the machine
  • Automatically except to put on and take off stator.
  • Highinsertion speed (about to 0.5 sec/slot), labor saving, cost reduction, and stable quality output.
  • Easy adjustment while changing stack height of stator or width of insulating paper.
  • Change tooling design to meet different shape of stator slots.
View Complete Details
Ask Latest Price & Details

Eight Station Automatic Coil Winding Machine

  • Min. Order (MOQ) 1 Piece
  • Power 6 KW
  • Weight ≈3000kg
  • Application It is Suitable for 2 Poles. 4 Poles, 6 Poles, Stator and also for Middle or Big Size Stator
  • Wire Diameter Range 0.15-1.00mm
  • Wire Diameter Range 2200RPM
  • Max.coil Segments 5
  • Max.coil Segments 15-50mm
  • Suitable Motor Poles 2, 4, 6
  • Air Pressure 0.7-0.9MPa
  • Power Supply 380v/50hz Three-phase Four-wire
  • Dimension (L*W*H) 2250mm*1250mm*2150mm

Each machine has one set winding tooling and three vertical winding forms.The whole set of tooling can be changed. The table is four stations structure. It adopts servo system to rotate and index transfer form. Allow four wires winding simultaneously. Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn. The working rotation speed can be set. Machine has no distinct vibration and noise. Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop. PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction. X and Y spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.Tooling sunk adopts servo system.

View Complete Details
Ask Latest Price & Details
