We are highly experienced Manufacturer, Exporter and Supplier of Diaphragm Level Switch. The Diaphragm Level Switch is used for indicating, controlling, and regulating the level of granulated or powdered dry materials with a grain diameter up to 10 mm and a density of 0, 3 to 2, 5g/cm3, flowing through a silo, hopper or chute. We offer superior Diaphragm Level Switch that is made up from quality material with perfect finishing. Known for its flawless features, Diaphragm Level Switch is highly in demand among our customers.

Operation

The device must be mounted so that the diaphragm membrane is exposed to the product whose level should be controlled, in such a way that the product, can press the diaphragm. The material weight presses the diaphragm which is adjusted with the microswitch through a flexible mechanisum. A liver attached to the diaphragm transferrs the pressure to the microswich which changes the contact. When the material recedes the diaphragm comes back to its normal postion and the microswitch again changes the contact.

Technical Specifications

• Normal sensitivity - 100 gm / 400 gm
• Diaphargm Membrane material - Nitrial Rubber / SS ax.
• Work ambient temperature - 60 Deg
• Microswitch contacts - 15 Amp, 230 V AC, Potential free
• Cable Gland - PG 11
• Housing - Cast Al
• Protection - IP 40

Installation and Mounting

The JAYCEEBOOT can be installed outside the container by making a hole on the wall, so that the membrane remains exposed to the product inside. Suspended by means of a tube, it can be also installed inside the container. Using adaptors, it can be installed in pipes and conduits.

Wherever possible level switch should be mounted on vertical surfaces. By this means, the product can flow free downwards, and wrong indications are avoided. It can be mounted on surfaces with a slope of not more than 30 degrees from vertical, provided that the product leaves the membrane thoroughly free when flowing along. If maximum levels are to be controlled, the devices must be mounted at such a height that the product overflowing the membrane can exert pressure on this membrane, working the microswitch.

SALIENT FEATURES :

• No moving part, free from maintenance.
• No special cable required for signal transmission, ECONOMICAL to install.
• Long cable connection permissible between probe and evaluation unit.
• Low Pulse voltage  on probes for prevention of electrolytics deterioration of electrodes.
• Low voltage on probe for operational safety.

Two point action for automatic pump control.

Two point independent switching.

Three point switching , two points with pump control logic and one independent point.

Four point switching having two-pump control logic.

Variety of probes available for various process condition.

Multichannel 4 point independent switching available for various process condition.

MEASURING SYSTEM :

A low Pulse voltage is applied between the probe electrode and the tank wall (or reference electrode in case of insulated tank). When the liquid comes in contact with the electrode tip, a conductive path is established between the sense electrode and the tank wall / reference electrode. This current is sensed, amplified and made to operate a relay whose contact in turn can be used for annunciation/control.

APPLICATION :

JAYCEEAQUA 4000 level switches are used in processing plants for conductive liquids of conductivity  as low as 1 micro siemens in Food, Power, Chemicals, Sugar, Detergents, Steel, Minerals, Textiles, WTP and ETP etc. For conductive Liquids and Low-conductive Liquids such as DM-Water. Suitable for liquid having conductivity as low as l micro Siemens.

Usage:

Switching 'OFF' pumps when tank is full, to avoid overflow For maintaining a constant level to avoid material wastage For switching ‘OFF’ pumps before running dry and indicating an empty tank to avoid wear and tear & production stoppage

SENSING PROBE :

• Mounting : Screwed - 1/2" BSP [standard] Above 1/2" BSP and flanged mounting (As per application and requirement)
• Sensing Probe : Stainless steel 304/ 316 rod / rope type
• Insulation :PTFE (standard) Other insulation on request and as per application.
• Operating temperature : 200oC max. (Inside vessel]

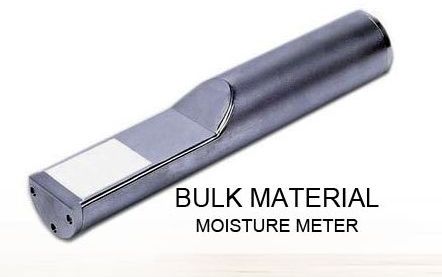

Moisture Sensors for Hopper and ConveyorMoisture Sensors for Hopper and Conveyor are pen style equipment used for various purposes. India is the second most populated country across the globe. And it is not a joke to be the best Moisture Sensors for Hopper and Conveyor supplier in India. But Jayceetech made it true! Well-known as the finest Moisture Sensors for Hopper and Conveyor manufacturer in India,  we install all the quality products while manufacturing the final product.

Salient features of our Moisture Sensors for Hopper and Conveyor

• Hydro – Flush mount, digital, microwave moisture sensor.
• We have used advanced technology in our product with 25 reading per second.
• We have fixed advanced digital signal processing system in the product. So, the product gives rapid response along with a clear signal. 9899221542
• We have added standard quality control measures so that we can provide the best quality products to our customers. For this, calibration data points are stored within the sensor.
• ‘Bin Empty’ and ‘High moisture’ alarms are set to track the performance. We ensure consistent performance; there is no need of recalibration.
• Stand alone or simple integration features are stored in new or existing system in order to ensure the smooth operations.

GeneralBeing the best Moisture Sensors for Hopper and Conveyor manufacturer in India,  users can observe the expertise in our designs. From tip to top, everything is set in a perfect manner which ensures the smooth processing as well as the accurate output. The main body of the product is made of stainless steel and faceplate is made of ceramic. The operating temperature required is 0 to 60 degree Celsius while the power supply required is 15 to 30 V DC. Sensors neither work in minus temperature nor in very high temperature. So, it is very important to keep the temperature and power supply optimum.
The Sensor must be placed in the flow of material for the smooth operation of product. Refresh-rate of the product is 25 times per second. For averaging and alarm functioning, there are two configurable digital signals available. Being the bulk Moisture Sensors for Hopper and Conveyor supplier in India,  we also provide extension cable along with bins and silos.
We provide catalogues, operating manuals, and handbook for each and every product that we supply. Online delivery is available in all areas; you can book your orders now within one click. We don’t charge anything additional for these services. From registration to delivery, everything is free. In fact, users can save bucks by using online free coupons and discounts.
So, our users will always get the benefit of cost-saving. Register yourself today at jayceetech.com and find equipment of your use

Features

• Advanced Digital Signal Processing provides a clear signal with rapid response.
• Fully temperate compensated measurement.
• Two analogue outputs, digital RS485 communications and congurable digital inputs/output, alarms.
• Remote communication with Hydro-Com software allows conguration of all sensor parameters.
• Consistent performance with no need for Recalibration except for use with different materials.
• Calibration data points stored within the sensor for improved quality control.
• Stand alone or simple integration into a new or existing automation system.
• The Averaging Mode provides continuous “average” moisture over a batch.
• Averaging, “Bin Empty” and “High Moisture” ” Alarms and Signal Processing are performed internally by the sensor.

Extension CableSix twisted pairs, 22AWG, 0.35mm 2 conductors. Screen braid with 65% minimum coverage plus Aluminum /polyester foil. Maximum cable runs of 100 m

PrincipalPiCap is microcontroller based, working on ultra high frequency principal, capable of detecting metallic and non-metallic objects at distances, reliably and efficiently. PiCap sensitivity is factory set to detect most of the available substances in common Industrial applications. Since the detection range depends on the dielectric constant of the media and the nearness of objects surrounding the installation; in special cases, the sensitivity may need adjustment. The detection distance can be set by non contact magnetic switch for a desired distance within the PiCap limits.

Details

• Digital sensing, digital setting Available in metal housing
• Flush or non-flush types
• Long sensing range
• Non contact magnetic key provided for sensitivity adjustment in typical applications
• Current limited universal transistor output as standard (PNP/NPN -field selectable)
• Reverse polarity and transient voltage protected

GeneralStanding out of the crowd, Jayceetech is one the best-awarded Capacitance Level Position Detector (PiCap) manufacturer in India. We are also available online for query resolution. We avoid willy-nilly approach while manufacturing and designing products. Different models and designs are available to see in our catalogue. We don’t charge even a single penny for downloading any book linked to our platform. Hence, not only the catalogue but also flipbook and manuals are completely free.
Apart from above, we manufacture product considering the global standards. Different probes are used for conductive and non-conductive materials. We are not only the Capacitance Level Position Detector (PiCap) manufacturer in India but also the fastest growing exporter and supplier for all of our products. Based on nature, purpose, and usages, we use insulated or non-insulated probes.
Being the best Capacitance Level Position Detector (PiCap) manufacturer in India, we supply unbeatable quality products. Both cost and damage are no worries with us as we provide the warranty for our products at the least possible cost. We don’t charge extra bucks for providing the warranty. Our engineers and other professionals are up to date with the market information and work in every possible way to fulfil market needs.

Application and Features

• Suitable for very low dielectric constant material
• Food Grains and plastic pellet detection
• Object detection and counting
• Level control / monitoring through a sight glass / non-metallic window
• Liquid level detection in non-metallic containers

Working mechanism is changing along with the use of technology. Without it, working in the industry is like next to impossible nowadays. Jayceetech makes a difference by providing the highest quality and durable tech products. Our products are another name of advanced and hi-tech era. Our engineers and staff members are the backbone of the company, perhaps, that’s why we are the fastest growing Moisture Sensor for Mixers and Small Vessels supplier in India.

Moisture Sensor for Mixers and Small VesselsBeing the best Moisture Sensor for Mixers and Small Vessels suppliers in India, Jayceetech provides various kinds of sensor. All the products offered by us have different usages. Our Moisture Sensor for Mixers and Small Vessels are known as HydroMix sensor which is useful for flush mount for mixers, in Concrete Plants, Biofood Grains outlet chutes and other bulk materail small hoppers.

Salient Features of our Moisture Sensor for Mixers and Small Vessels

• Hydro – Flush mount, digital, microwave moisture sensor.
• We have used advanced digital technology in our product that makes the product easy to use with the least possible variations.
• Fully temperature compensated measurement is integrated in order to balance the power supply and prevent damages.
• Different measurement modes are available so users can measure temperature, and accuracy easily.
• The product has sensor configuration, easy interface, and normal power requirements.
• We have attached influence calibration with the possible wear life.
• Replaceable Ceramic Faceplate is also available for the product. After the warranty period, even if there is damage, users can just change this part instead of buying a new product or equipment.

GeneralThe simplified design of the product makes it the best Moisture Sensor for Mixers and Small Vessels manufacturer in India. Apart from the above, technical specification includes clear specifications of the parts used in the product. It requires 15 to 30VDC power supply for operation.
The main body of product is made of stainless steel, protection ring is made of hardened steel, and faceplate is made of ceramic. For smooth and comfortable use of product, it is good to keep the operating temperature in between 0 to 60 degree Celsius. Sensor does not work or generate data in minus or ice temperature. Our sensors for mixers and small vessels are highly sensitive to materials and designed in such a way that they can measure as well as sense the saturation and range of materials.
With Jayceetech, there is no worry even if you do not have enough technical knowledge of any part as we provide all information in our primary book. Apart from this, our Technical support for products is available clock-around.

Features

• Fully Temperature Compensated Measurement
• Advanced Digital Technology
• Easy to Interface
• Replaceable Ceramic Faceplate
• Measurement Modes
• Wear Life
• Sensor Configuration
• Simple Power Requirements
• Temperature Measurement
• Measuring in the Mix
• Calibration
• Accuracy of Measurement

Digital (Serial) CommunicationsOpto-isolated RS485 2-wire port. Uses Hydro – com communications protocol for read/write access to sensor parameters and values. Ethernet and USB interfaces are also available.

The electronic rotating paddle sensor is used to detect the level of powder material either inside a machinery, or a bunker, or even a silo that is operating for its production. We at Jaycee Technologies Pvt. Ltd offers the finest quality and high-performing electronic rotating paddle sensor that is preferred for determining the lower and upper levels in solid, bunker, tank, and silo.

Electronic Rotating Paddle Sensor with Motor Fault Indication

We offer electronic rotating paddle sensors of various series that are manufactured to detect and be in charge of the liquid level inside a tank. You can use our offered sensor to detect all types of levels in containers, bin hoppers, and storage tanks to prevent loss of materials and over-spillage. Our electronic rotating paddle sensor features a foldable paddle to simplify installation procedure, rope probe for elaborate lengths, etc. Get in touch with us to place your order.

APPLICATIONS :

• Buiidind Industry materials, Cement, sand, lime, etc
• Foodstuff Industry powder, granular etc.
• Timber Industry, chemical and mining etc.

MODELS :

• JAYCEEADMIT 3600 : With PNP output , DC mains 18 to 30 V DC
• JAYCEEADMIT 3601 : With DPDT Relay Output , Mains 18-36 V DC & 65-265 V AC

We are highly experienced Manufacturer, Exporter and Supplier of Diaphragm Level Switch. The Diaphragm Level Switch is used for indicating, controlling, and regulating the level of granulated or powdered dry materials with a grain diameter up to 10 mm and a density of 0, 3 to 2, 5g/cm3, flowing through a silo, hopper or chute. We offer superior Diaphragm Level Switch that is made up from quality material with perfect finishing. Known for its flawless features, Diaphragm Level Switch is highly in demand among our customers.

Operation

The device must be mounted so that the diaphragm membrane is exposed to the product whose level should be controlled, in such a way that the product, can press the diaphragm. The material weight presses the diaphragm which is adjusted with the microswitch through a flexible mechanisum. A liver attached to the diaphragm transferrs the pressure to the microswich which changes the contact. When the material recedes the diaphragm comes back to its normal postion and the microswitch again changes the contact.

Technical Specifications

• Normal sensitivity - 100 gm / 400 gm
• Diaphargm Membrane material - Nitrial Rubber / SS ax.
• Work ambient temperature - 60 Deg
• Microswitch contacts - 15 Amp, 230 V AC, Potential free
• Cable Gland - PG 11
• Housing - Cast Al
• Protection - IP 40

Installation and Mounting

The JAYCEEBOOT can be installed outside the container by making a hole on the wall, so that the membrane remains exposed to the product inside. Suspended by means of a tube, it can be also installed inside the container. Using adaptors, it can be installed in pipes and conduits.

Wherever possible level switch should be mounted on vertical surfaces. By this means, the product can flow free downwards, and wrong indications are avoided. It can be mounted on surfaces with a slope of not more than 30 degrees from vertical, provided that the product leaves the membrane thoroughly free when flowing along. If maximum levels are to be controlled, the devices must be mounted at such a height that the product overflowing the membrane can exert pressure on this membrane, working the microswitch.

SALIENT FEATURES :

• No moving part, free from maintenance.
• No special cable required for signal transmission, ECONOMICAL to install.
• Long cable connection permissible between probe and evaluation unit.
• Low Pulse voltage  on probes for prevention of electrolytics deterioration of electrodes.
• Low voltage on probe for operational safety.

Two point action for automatic pump control.

Two point independent switching.

Three point switching , two points with pump control logic and one independent point.

Four point switching having two-pump control logic.

Variety of probes available for various process condition.

Multichannel 4 point independent switching available for various process condition.

MEASURING SYSTEM :

A low Pulse voltage is applied between the probe electrode and the tank wall (or reference electrode in case of insulated tank). When the liquid comes in contact with the electrode tip, a conductive path is established between the sense electrode and the tank wall / reference electrode. This current is sensed, amplified and made to operate a relay whose contact in turn can be used for annunciation/control.

APPLICATION :

JAYCEEAQUA 4000 level switches are used in processing plants for conductive liquids of conductivity  as low as 1 micro siemens in Food, Power, Chemicals, Sugar, Detergents, Steel, Minerals, Textiles, WTP and ETP etc. For conductive Liquids and Low-conductive Liquids such as DM-Water. Suitable for liquid having conductivity as low as l micro Siemens.

Usage:

Switching 'OFF' pumps when tank is full, to avoid overflow For maintaining a constant level to avoid material wastage For switching ‘OFF’ pumps before running dry and indicating an empty tank to avoid wear and tear & production stoppage

SENSING PROBE :

• Mounting : Screwed - 1/2" BSP [standard] Above 1/2" BSP and flanged mounting (As per application and requirement)
• Sensing Probe : Stainless steel 304/ 316 rod / rope type
• Insulation :PTFE (standard) Other insulation on request and as per application.
• Operating temperature : 200oC max. (Inside vessel]

Moisture Sensors for Hopper and ConveyorMoisture Sensors for Hopper and Conveyor are pen style equipment used for various purposes. India is the second most populated country across the globe. And it is not a joke to be the best Moisture Sensors for Hopper and Conveyor supplier in India. But Jayceetech made it true! Well-known as the finest Moisture Sensors for Hopper and Conveyor manufacturer in India,  we install all the quality products while manufacturing the final product.

Salient features of our Moisture Sensors for Hopper and Conveyor

• Hydro – Flush mount, digital, microwave moisture sensor.
• We have used advanced technology in our product with 25 reading per second.
• We have fixed advanced digital signal processing system in the product. So, the product gives rapid response along with a clear signal. 9899221542
• We have added standard quality control measures so that we can provide the best quality products to our customers. For this, calibration data points are stored within the sensor.
• ‘Bin Empty’ and ‘High moisture’ alarms are set to track the performance. We ensure consistent performance; there is no need of recalibration.
• Stand alone or simple integration features are stored in new or existing system in order to ensure the smooth operations.

GeneralBeing the best Moisture Sensors for Hopper and Conveyor manufacturer in India,  users can observe the expertise in our designs. From tip to top, everything is set in a perfect manner which ensures the smooth processing as well as the accurate output. The main body of the product is made of stainless steel and faceplate is made of ceramic. The operating temperature required is 0 to 60 degree Celsius while the power supply required is 15 to 30 V DC. Sensors neither work in minus temperature nor in very high temperature. So, it is very important to keep the temperature and power supply optimum.
The Sensor must be placed in the flow of material for the smooth operation of product. Refresh-rate of the product is 25 times per second. For averaging and alarm functioning, there are two configurable digital signals available. Being the bulk Moisture Sensors for Hopper and Conveyor supplier in India,  we also provide extension cable along with bins and silos.
We provide catalogues, operating manuals, and handbook for each and every product that we supply. Online delivery is available in all areas; you can book your orders now within one click. We don’t charge anything additional for these services. From registration to delivery, everything is free. In fact, users can save bucks by using online free coupons and discounts.
So, our users will always get the benefit of cost-saving. Register yourself today at jayceetech.com and find equipment of your use

Features

• Advanced Digital Signal Processing provides a clear signal with rapid response.
• Fully temperate compensated measurement.
• Two analogue outputs, digital RS485 communications and congurable digital inputs/output, alarms.
• Remote communication with Hydro-Com software allows conguration of all sensor parameters.
• Consistent performance with no need for Recalibration except for use with different materials.
• Calibration data points stored within the sensor for improved quality control.
• Stand alone or simple integration into a new or existing automation system.
• The Averaging Mode provides continuous “average” moisture over a batch.
• Averaging, “Bin Empty” and “High Moisture” ” Alarms and Signal Processing are performed internally by the sensor.

Extension CableSix twisted pairs, 22AWG, 0.35mm 2 conductors. Screen braid with 65% minimum coverage plus Aluminum /polyester foil. Maximum cable runs of 100 m

PrincipalPiCap is microcontroller based, working on ultra high frequency principal, capable of detecting metallic and non-metallic objects at distances, reliably and efficiently. PiCap sensitivity is factory set to detect most of the available substances in common Industrial applications. Since the detection range depends on the dielectric constant of the media and the nearness of objects surrounding the installation; in special cases, the sensitivity may need adjustment. The detection distance can be set by non contact magnetic switch for a desired distance within the PiCap limits.

Details

• Digital sensing, digital setting Available in metal housing
• Flush or non-flush types
• Long sensing range
• Non contact magnetic key provided for sensitivity adjustment in typical applications
• Current limited universal transistor output as standard (PNP/NPN -field selectable)
• Reverse polarity and transient voltage protected

GeneralStanding out of the crowd, Jayceetech is one the best-awarded Capacitance Level Position Detector (PiCap) manufacturer in India. We are also available online for query resolution. We avoid willy-nilly approach while manufacturing and designing products. Different models and designs are available to see in our catalogue. We don’t charge even a single penny for downloading any book linked to our platform. Hence, not only the catalogue but also flipbook and manuals are completely free.
Apart from above, we manufacture product considering the global standards. Different probes are used for conductive and non-conductive materials. We are not only the Capacitance Level Position Detector (PiCap) manufacturer in India but also the fastest growing exporter and supplier for all of our products. Based on nature, purpose, and usages, we use insulated or non-insulated probes.
Being the best Capacitance Level Position Detector (PiCap) manufacturer in India, we supply unbeatable quality products. Both cost and damage are no worries with us as we provide the warranty for our products at the least possible cost. We don’t charge extra bucks for providing the warranty. Our engineers and other professionals are up to date with the market information and work in every possible way to fulfil market needs.

Application and Features

• Suitable for very low dielectric constant material
• Food Grains and plastic pellet detection
• Object detection and counting
• Level control / monitoring through a sight glass / non-metallic window
• Liquid level detection in non-metallic containers

Working mechanism is changing along with the use of technology. Without it, working in the industry is like next to impossible nowadays. Jayceetech makes a difference by providing the highest quality and durable tech products. Our products are another name of advanced and hi-tech era. Our engineers and staff members are the backbone of the company, perhaps, that’s why we are the fastest growing Moisture Sensor for Mixers and Small Vessels supplier in India.

Moisture Sensor for Mixers and Small VesselsBeing the best Moisture Sensor for Mixers and Small Vessels suppliers in India, Jayceetech provides various kinds of sensor. All the products offered by us have different usages. Our Moisture Sensor for Mixers and Small Vessels are known as HydroMix sensor which is useful for flush mount for mixers, in Concrete Plants, Biofood Grains outlet chutes and other bulk materail small hoppers.

Salient Features of our Moisture Sensor for Mixers and Small Vessels

• Hydro – Flush mount, digital, microwave moisture sensor.
• We have used advanced digital technology in our product that makes the product easy to use with the least possible variations.
• Fully temperature compensated measurement is integrated in order to balance the power supply and prevent damages.
• Different measurement modes are available so users can measure temperature, and accuracy easily.
• The product has sensor configuration, easy interface, and normal power requirements.
• We have attached influence calibration with the possible wear life.
• Replaceable Ceramic Faceplate is also available for the product. After the warranty period, even if there is damage, users can just change this part instead of buying a new product or equipment.

GeneralThe simplified design of the product makes it the best Moisture Sensor for Mixers and Small Vessels manufacturer in India. Apart from the above, technical specification includes clear specifications of the parts used in the product. It requires 15 to 30VDC power supply for operation.
The main body of product is made of stainless steel, protection ring is made of hardened steel, and faceplate is made of ceramic. For smooth and comfortable use of product, it is good to keep the operating temperature in between 0 to 60 degree Celsius. Sensor does not work or generate data in minus or ice temperature. Our sensors for mixers and small vessels are highly sensitive to materials and designed in such a way that they can measure as well as sense the saturation and range of materials.
With Jayceetech, there is no worry even if you do not have enough technical knowledge of any part as we provide all information in our primary book. Apart from this, our Technical support for products is available clock-around.

Features

• Fully Temperature Compensated Measurement
• Advanced Digital Technology
• Easy to Interface
• Replaceable Ceramic Faceplate
• Measurement Modes
• Wear Life
• Sensor Configuration
• Simple Power Requirements
• Temperature Measurement
• Measuring in the Mix
• Calibration
• Accuracy of Measurement

Digital (Serial) CommunicationsOpto-isolated RS485 2-wire port. Uses Hydro – com communications protocol for read/write access to sensor parameters and values. Ethernet and USB interfaces are also available.

The electronic rotating paddle sensor is used to detect the level of powder material either inside a machinery, or a bunker, or even a silo that is operating for its production. We at Jaycee Technologies Pvt. Ltd offers the finest quality and high-performing electronic rotating paddle sensor that is preferred for determining the lower and upper levels in solid, bunker, tank, and silo.

Electronic Rotating Paddle Sensor with Motor Fault Indication

We offer electronic rotating paddle sensors of various series that are manufactured to detect and be in charge of the liquid level inside a tank. You can use our offered sensor to detect all types of levels in containers, bin hoppers, and storage tanks to prevent loss of materials and over-spillage. Our electronic rotating paddle sensor features a foldable paddle to simplify installation procedure, rope probe for elaborate lengths, etc. Get in touch with us to place your order.

APPLICATIONS :

• Buiidind Industry materials, Cement, sand, lime, etc
• Foodstuff Industry powder, granular etc.
• Timber Industry, chemical and mining etc.

MODELS :

• JAYCEEADMIT 3600 : With PNP output , DC mains 18 to 30 V DC
• JAYCEEADMIT 3601 : With DPDT Relay Output , Mains 18-36 V DC & 65-265 V AC
