Padding Mangle

• MOQ : 1 Piece
• Driven Type : Electric
• Automatic Grade : Automatic
• Power : 3-6kw
• Supply Type : Manufacturer
• Country of Origin : India
• Voltage : 220V

more...

• MOQ : 1 Piece(s)
• Warranty : 1year
• Display Type : Digital
• Roll Size : New
• Model No : IK-PM-01
• Certification : ISO 9001:2015
• Weight : 80 KGS
• Type : Padding Mangle
• Certificate : Non NABL
• Automatic Grade : Automatic

Padding Mangle Machines are used for Fabric Dyeing by padding method. We at IKON offer Padding Mangle Machines for Lab scale. Different models of Padding Mangle Machines are available namely Vertical, Horizontal & Universal. These Padding Mangle Machines are best to conduct lab trials as well as to conduct me more...

• MOQ : 1 Piece
• Color : Blue
• Driven Type : Electric
• Warranty : 1year
• Supply Type : Manufacturer
• Certification : ISO 9001:2015
• Voltage : 220V
• Country of Origin : India
• Type : Padding Mangle
• Roll Size : New

  heavy duty 3 bowl inclined padding mangle with compensator  ·        heavy duty m.s. fabricated double wall side frame duly cladded with s.s ·        top and bottom rolls with 305 mm ø mounted in split type of levers and heavy-duty bearings (synthetic rubber lathia coated) ·      � more...

• Bowl Hardness : RUBBER 70 DEG & EBONITE 100 DEG
• Country of Origin : Made in India
• Electrical Supply : Gearboxed Motor
• Frequency : 60 Hz
• Material : MS Rigid Frames
• Voltage : 220 V
• Brand : UK
• Maximum working width : 56" TO 240" inch

more...

• Frequency : 50Hz
• Voltage : 380V
• Working Pressure : 4 kg/cm sq
• Power Source : 540W
• Material : SS 304
• Automation : Microprocessor Controller
• Supply Type : Supplier

more...

• Material Grade : SS 304 / 316
• Brand Name : Om Sai Engineering
• Machine Material : SS
• Country of Origin : Made in India
• Voltage : 220 V
• Power Source : Electric
• Frequency : 50 Hz

more...

• Motor : ¼ HP,, DC Geared Motor.(With Reverse & Forward System)
• Speed of Roll : Variable Speed.
• Maximum Working Width : 450 mm
• Electrical Supply: : Single Phase 230 Volts, 50 HZ.
• Shore Hardness : 60-65.
• Roll Size : Diameter 115mm X 450mm Length.

more...

• MOQ : 1 Piece
• • Automation : Microprocessor Controller : • Heater : 1.5 KW
• Supply Type : Manufacturer
• • Heating Trough capacity : 800 ml : • Bowl Hardness : 65o-70o

Features :  ·         Versatile machine, can be used for dyeing, printing and finishing trials.. ·         For even pressure throughout, pneumatic loading of the bowl. ·         Small unheated trough provided for padding a small size samples. ·         Nip padding trough a more...

• CAPACITY:- : 800 TO 900 MTS. per hr.

This machines is used for Starching of  shawls, Saree & other textile clothes like Staple, Silk, Cotton, Wool, Tapestry, Chiffon, Georgette, fine Malmal and other Weaving clothes. more...

• Electrical Supply : 230V, single phase, 50Hz
• Material of coating on bowl : synthetic rubber
• Working width : 300mm, 450mm, 600mm
• Rubber hardness : 65 to 70 shore hardness
• Dimensions Approx : L 1030 mmxW650 mmxH790 mm,
• Cloth speed : up to 10 meter / minute

more...

A versatile  Laboratory Machine  suitable for dyeing, printing finishing applications. Bowls are coated with synthetic rubber of standard shore hardness of 70°C to 75°C shore A & are loaded pneumatically for unifoim pressure. Suitable for 450mm or 350mm working width samples. Specifications : Versatile La more...

The INDOFLEX Dyeing Padder is a dyeing and Impregnating machine: An ingenious deflection control principle forms the heart of HARISH INDO-FLEX Dyeing Padder. It allows modulation of expression pattern to achieve desired pick-up. The INDO-FLEX Padder is a dyeing and impregnating padder for pad-dry and pad stea more...

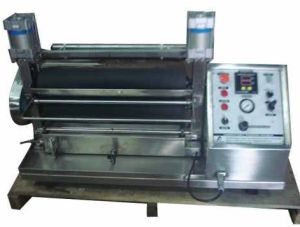

 We offer Laboratory Padding Mangle that is widely used for dyeing, printing and finishing trials. We are a prominent Manufacturer, Exporter and Supplier of versatile range of Laboratory Padding Mangle from Mumbai in Maharashtra. Our varied range of Laboratory Padding Mangle is fabricated from the finest more...

Pneumatic padding mangle :   The main structure is fabricated out of heavy duty M.S. plate and incorporate with S.S. tank fitted with S.S. guide rolls and pneumatic pressure system.   Pre dryer and compensator :   The system consist of 20”/30”dia S.S. Cylinders of required width. Total 4 nos. dynamical more...

Our Laboratory Padding Mangle has (Vertical) 2 bowls with coating synthetic rubber. Pneumatic loading arrangement of Laboratory Padding Mangle ensures uniform pressure the width of bowl. Liquor heating arrangement is provided. Speed of machine is variable, Microprocessor MC-6 controls temperature of trough li more...

Bowl Mangle Drying Range High quality Textile Processing Machinery like Bowl Mangle Drying Range with heavy duty equipment. Cloth Entry: A Set of three curved bar rubber sleeve expander. A pair of mechanical cloth guider with adjusting frames to suit cloth width. Structure: M.S. Stack fabricated from M.S. Pla more...

Utility: It is versatile M/C with wide applications in dyeing, printing and finishing process. Two Bowls vertical padding mangle has coated with synthetic rubber std. supply, shore Hardness 70 to 75 shore-hardness. Uniform pressure thro' pneumatic loading. MOC: SS 304 / 316 more...

Pneumatic Padding Mangle is designed under the supervision of our professionals who use quality material and advanced machinery at our premises. To provide the accuracy and reliability, we provide customization options as per the details by the clients.Also consist of Regulator, Pressure Gauage and switch for more...

Trust cylinder guarantee the equal pressure left & center & right it drives accurate pick up rate. Variety working-Dyeing & finishing & impregnating of textile. High efficient inverter motor, speed controller Digital tachometer control a precise rotating speed in low speed & high speed. Front air regulator ma more...

A] - S.S.304 Consist of 2 Bowl having dia. of  120mm & 300mm length. Upper bowl duly synthetic rubber molded with hardness @ 70 to 75. while lower bowl duly bakelite molded. Machine equipped with ½ H.P. D.C. Motor with electronic D.C.Drive Also consist of Regulator, Pressure Gauge and Switch for Up-Down mot more...

The only available padder in market, which can pad any class of dyes without any variation throughout width and length of fabric upto 6-meter wide fabric.Padding mangle with two swimming rolls. Metering pump with automatic level controller. Batching arrangements. more...

We are offering padding mangle. more...

Bowl Mangle Drying Range, Cloth Entry: A Set of three curved bar Rubber Sleeve expander. A pair of Mechanical Cloth Guider with adjusting frames to suit cloth width.The cylinders mounted on stack running in ball bearing pendestals. more...

We offer pneumatic padding mangle [a] - s.s.304 consist of 2 bowl having dia. Of 120mm & 300mm length. upper bowl duly synthetic rubber molded with hardness @ 70 to 75. While lower bowl duly bakelite molded. machine equipped with ½ h.p. D.c. Motor with electronic d.c.drive also consist of regulator, pressure more...
